SWT 3000 Equipment Manual Installation and Commissioning
With Command Input-2 a pulse suppression in the range 0 – 100 ms in steps of 1 ms can be ad-
justed for each released binary input.

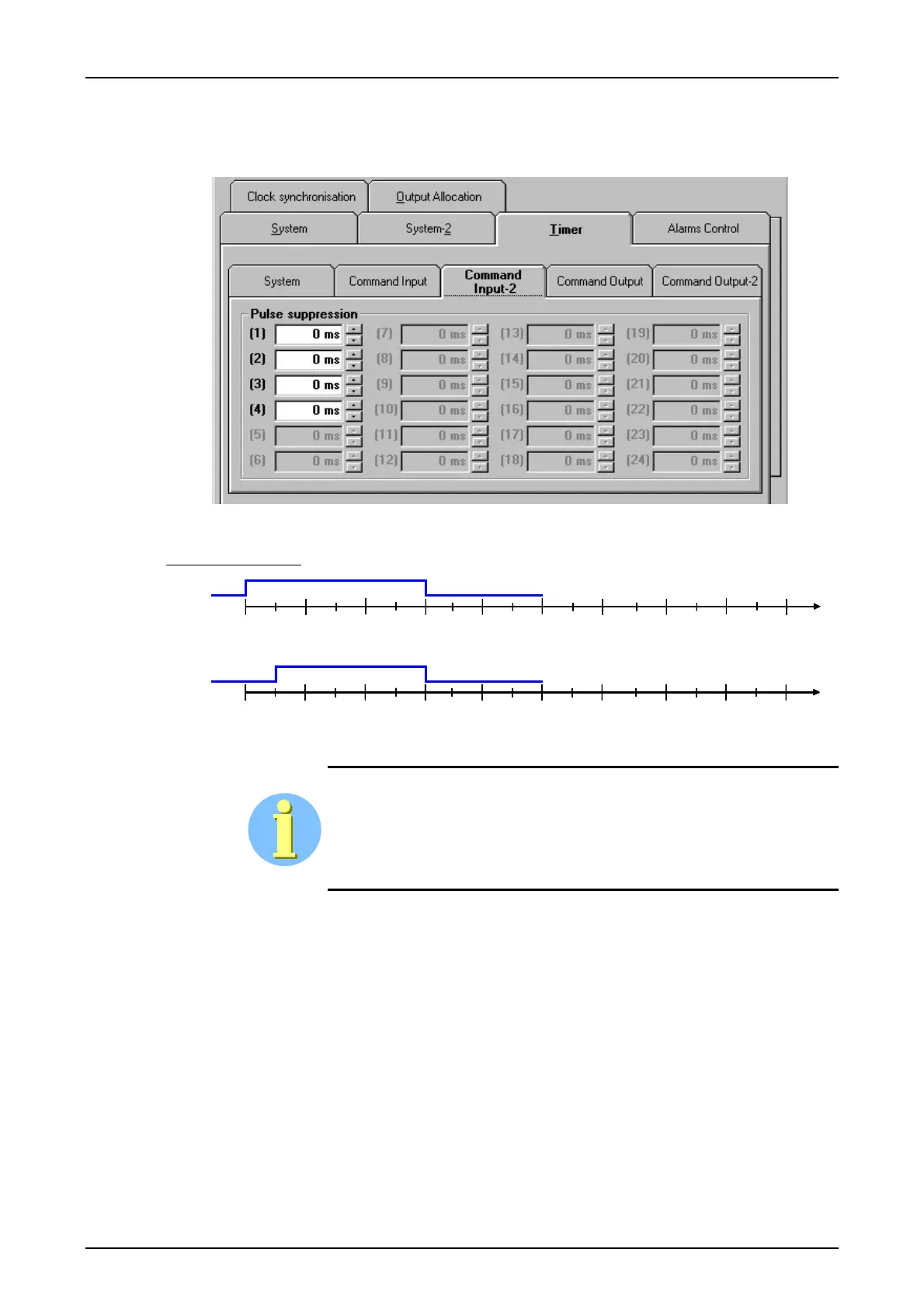

Figure 50: Setting options for the pulse suppression
0 5 10 20 30
40 50 60 70 80
0510
20 30 40 50 60 70 80
Binary Input
Tx Output
Pulse suppression 5 ms
t
ms
t
ms
Figure 51:
Example for a pulse suppression of 5 ms
Note:
Commands which are
shorter than the adjusted pulse suppression time
are
not transmitted by the iSWT!
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 55
