may slide off. Refer to the following illustration for proper orientation of the
ferrules.
10. Carefully slide the lamp into the oxidation reactor enclosure.
11. While tightening the nut, make sure it stays flush with the heat shrink
tubing. Tighten the nut finger-tight. Do NOT use a wrench.
12. Connect the lamp cord to the two-prong connector. One prong is larger
than the other and the connector will fit only one way.
13. If the pump tubing needs to be replaced, follow the procedure in this
chapter, otherwise close the top panel and restart the instrument.
14. Record the installation date for the lamp in the service log.
15. Plug in the main power cord and turn the power switch on. The instrument
will start initialization.

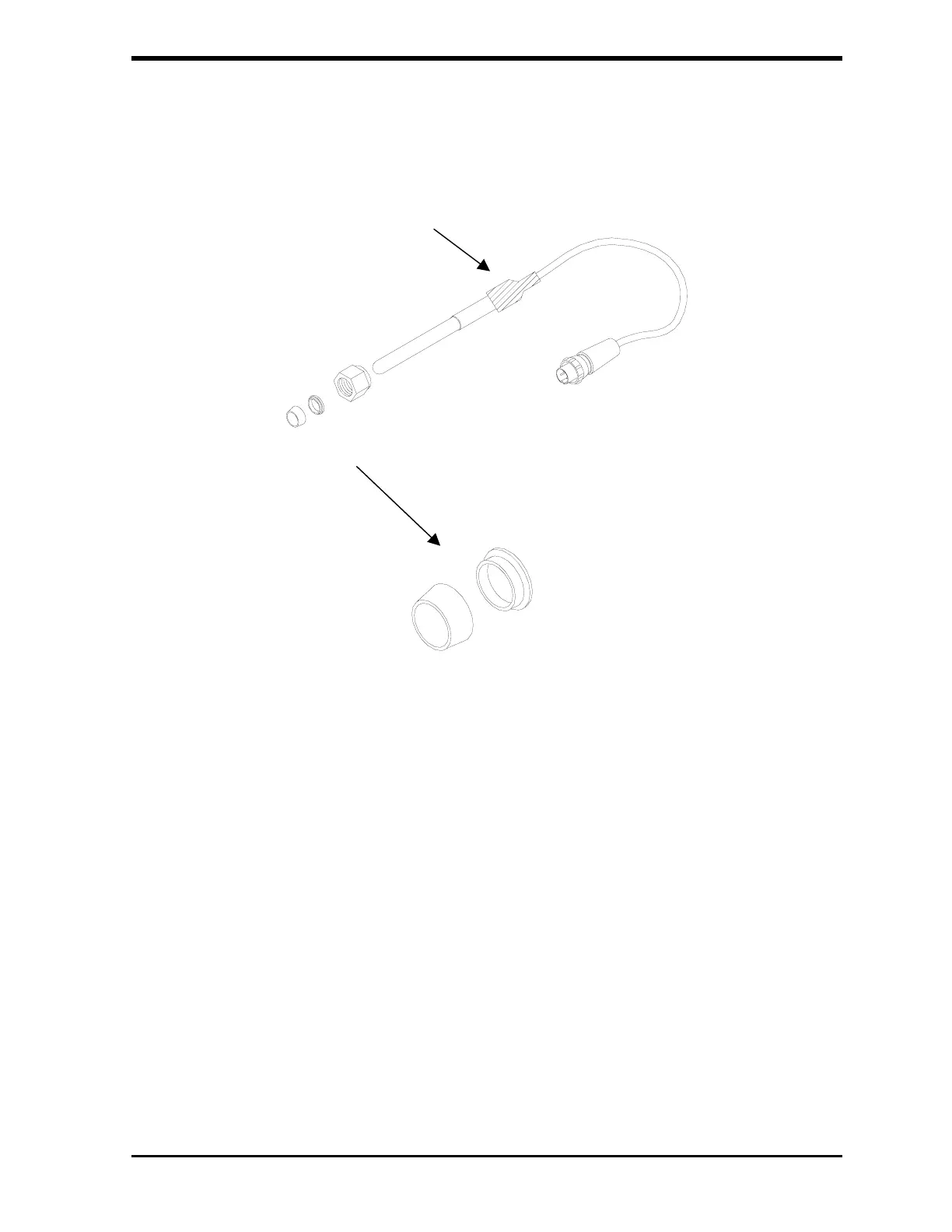

Ferrule orientation
detail
Heat shrink tubing
