Ionics Instruments 2004 Page 5-9 DLM 30007-08 Rev. A
Use the arrows ( or ) to scroll to 1 and press ENTER. Use the arrows (
or ) to scroll to E (exponential) and press ENTER. Use the arrows ( or )
to scroll to 3 and press ENTER (Note: 1000 could have been entered instead
of 1E3). Press ENTER. The menu changes and the program prompts for
confirmation. Press ENTER to save the alarm level.
5. Press clear to return to the OUTPUTS menu.
6. If a second alarm is being used, follow the same procedure to set
the level for ALARM #2. When finished, press CLEAR to return to
the OUTPUTS menu.
Analog Outputs
Select the range for the two analog outputs (4–20 mA and 0–10 V) from the
ANALOG OUT option of the OUTPUTS menu as follows:
1. Use the arrows ( or ) to scroll to ANALOG OUT and press
ENTER. The Analog Output menu is displayed:
ENTER
CLEAR
SET OUTPUT VALUE
SET RANGE

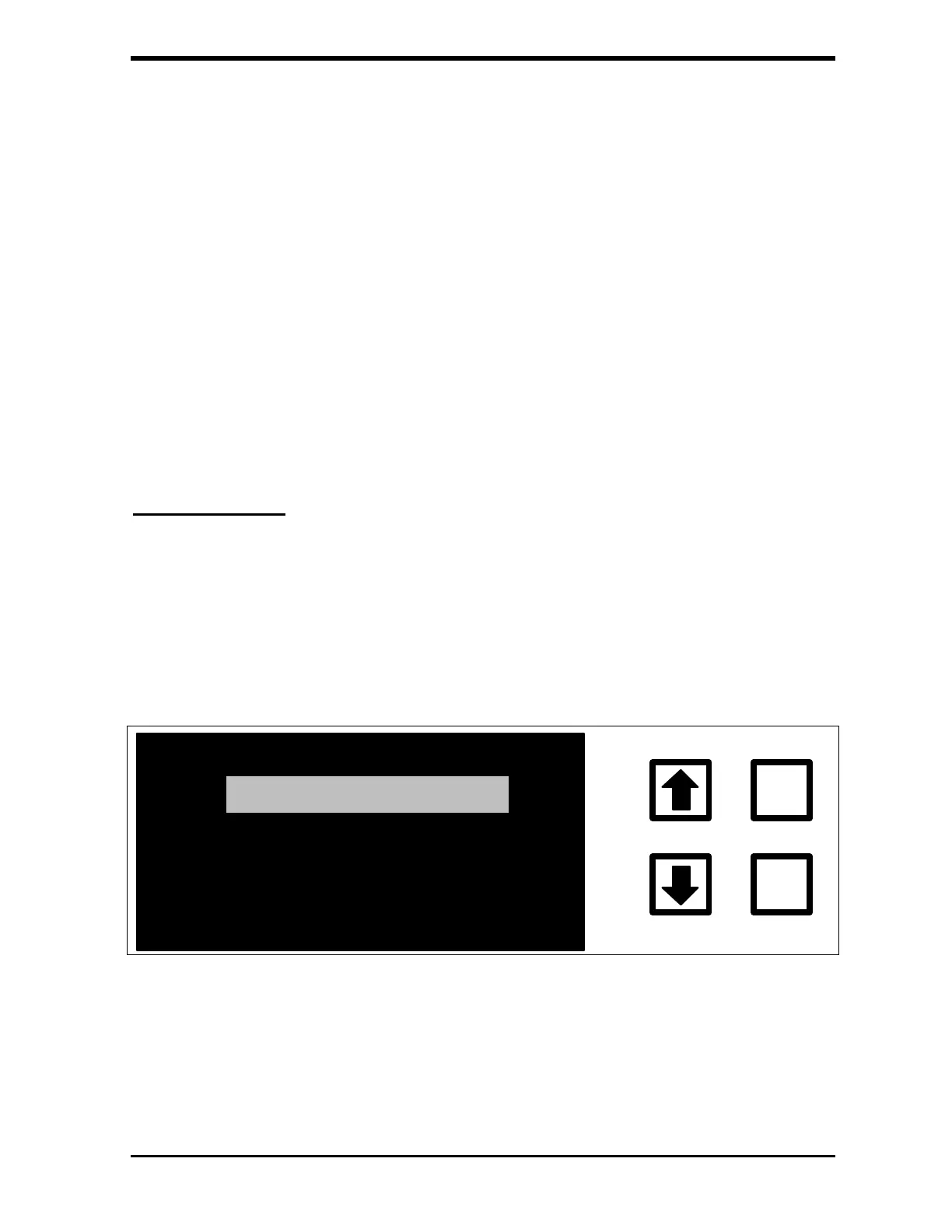

FIGURE 5-8: ANALOG OUTPUT Menu
2. With the SET OUTPUT VALUE option highlighted, press ENTER.
The SET OUTPUT VALUE screen is displayed:
