Cross
Reagent
Enclosure
1-Hold at angle
and slide into
enclosure
2-Push down
into enclosure
SIDE VIEW
TOP VIEW
A
C
I
D
O
X
I
D

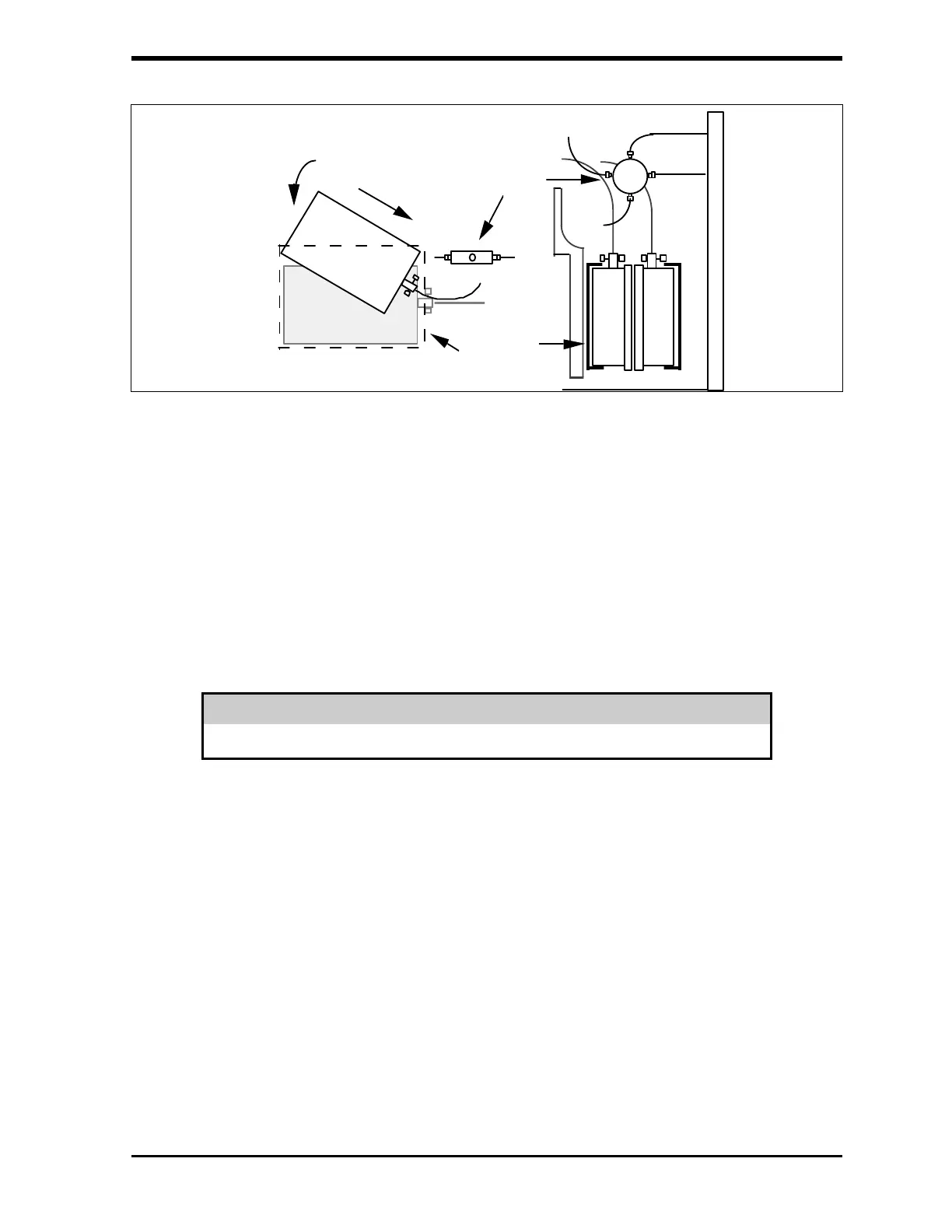

FIGURE 4-8: Installing Reagent Containers
8. Locate the OXIDIZER supply line. It is labeled with the word
OXIDIZER. At the end of this line there is brown knurled nut.
9. Inspect the OXIDIZER reagent cartridge. The Mininert valve must be
in the closed position. Observe the labeling on the cartridge for
proper positioning.
WARNING
Oxidizer may spill from the container if the valve is not in the closed position.
10. Align the OXIDIZER reagent cartridge with Mininert valve to the
brown knurled nut. Once the cartridge is aligned with the brown
knurled nut, turn the brown knurled nut clockwise while holding
reagent cartridge. Turning the nut rather than the cartridge will
prevent the tubing from twisting. Tighten to fingertight. Do not
overtighten the nut.
11. Open the Mininert valve on the OXIDIZER container by pressing on
the green button to slide the Teflon bar fully inward. Reference the
label on the container to verify direction.
