SIPOS SEVEN 2SA7 - Modbus; HART; Actuator Status

Y070.302/EN Page 103
Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
11
Observing
11 Observing
Modbus
Displayed for available MODIBUS interface:
■
Active channel
– No channel active
■
Channel 1
– No communication
– Baud rate
– Data Exchange
■
Channel 2
– No communication
– Baud rate
– Data Exchange
HART
Displayed for available HART interface.
■
HART communication
– Not active: Communication via HART is not active.
– Active: Communication via HART is active.
– Data exchange: Cyclic data exchange with the actuator.
■
Last Req. Telegram
CMD no. + 6 bytes of the last receive telegram are displayed.
■
Last Command
ResponseCode 6 bytes of the last sent telegram are displayed here.
11�3 Actuator status
In this menu, the current operating data of the actuator is displayed:
■
Current speed [rpm] for rotary actuator;
current positioning speed [mm/min] for linear actuator;
current positioning time [90°/s] for part-turn actuator
■
Tripping torque reached for rotary actuator/part-turn actuator;
Tripping force reached for linear actuator
– CLOSE (yes/no)
– OPEN (yes/no)
■
Motor temperature [°C]
■
Electronics temperature [°C]
■
Intermediate contact
– CLOSE (active/not active)
– OPEN (active/not active)
■
Setpoint for positioner/proc. contr.
– Position [%]
– DCS (only for non linear valve curve) [%]
■
Process actual value (for process controller) [%]
Not active
Monitoring time
Address
CMD no. + 6 byte receive tel.
ResponseCode + 6 byte send tel.
HART communication
Last Req� Telegram
Last Command
Control system
HART

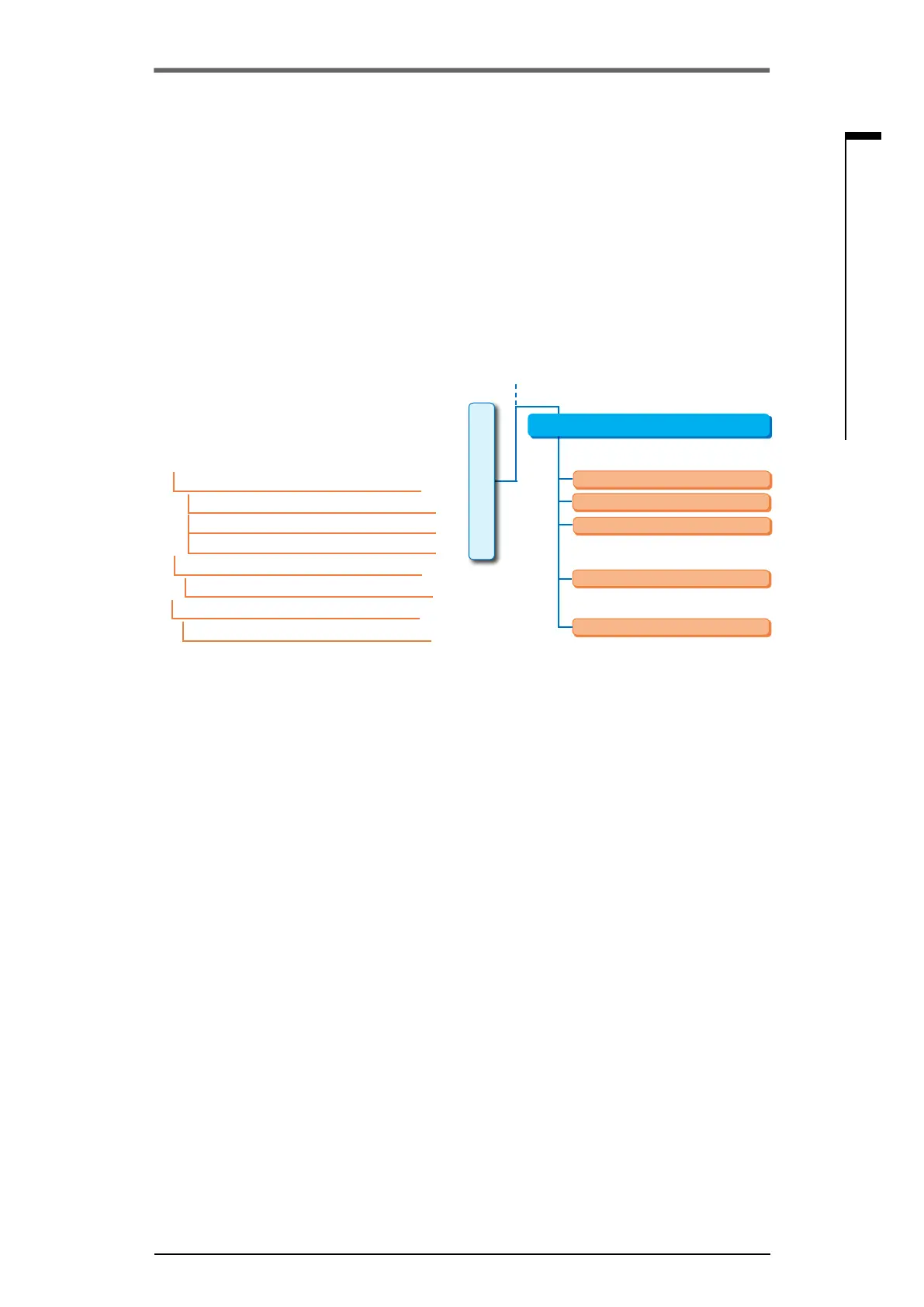

Fig�: ‘HART’ menu
HART
HART communication
Not active
Active
Data exchange
CMD no. + receive tel.
ResponseCode + send tel.
Last Req. Telegram
Last Command
