SIPOS SEVEN 2SA7 - USB Port; Data Exchange via USB Flash Drive

Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
Page 108 Y070.302/EN
13 Communication and data exchange
13
Communication and data exchange
13�3 USB port
The USB port is protected against dust and
water and is located at the bottom left of the
electronics housing.
ConnectUSBcableorUSBashdrive:
1. Unscrew the protective cap of the USB port
(g.1,item1)(itisprovidedwithaplastic
band for retention).
2. Connect
a)USBashdrive
or
b) USB cable
to the USB port (item 2).
The backlight is activated and the communi-
cation via USB port is indicated with a USB
symbol in the display, refer to g.2
The reference potential of the auxiliary voltage
supply (M24 ext. pin 39) is often grounded.
If the reference potential is different from
the grounding potential of the actuator (PE),
transient currents may occur when connecting
the USB communication cable, which might
cause damage to laptop.
To avoid this,
■
prevent potential differences (lay compen-
sating cables), or
■
use galvanically isolated USB cables.

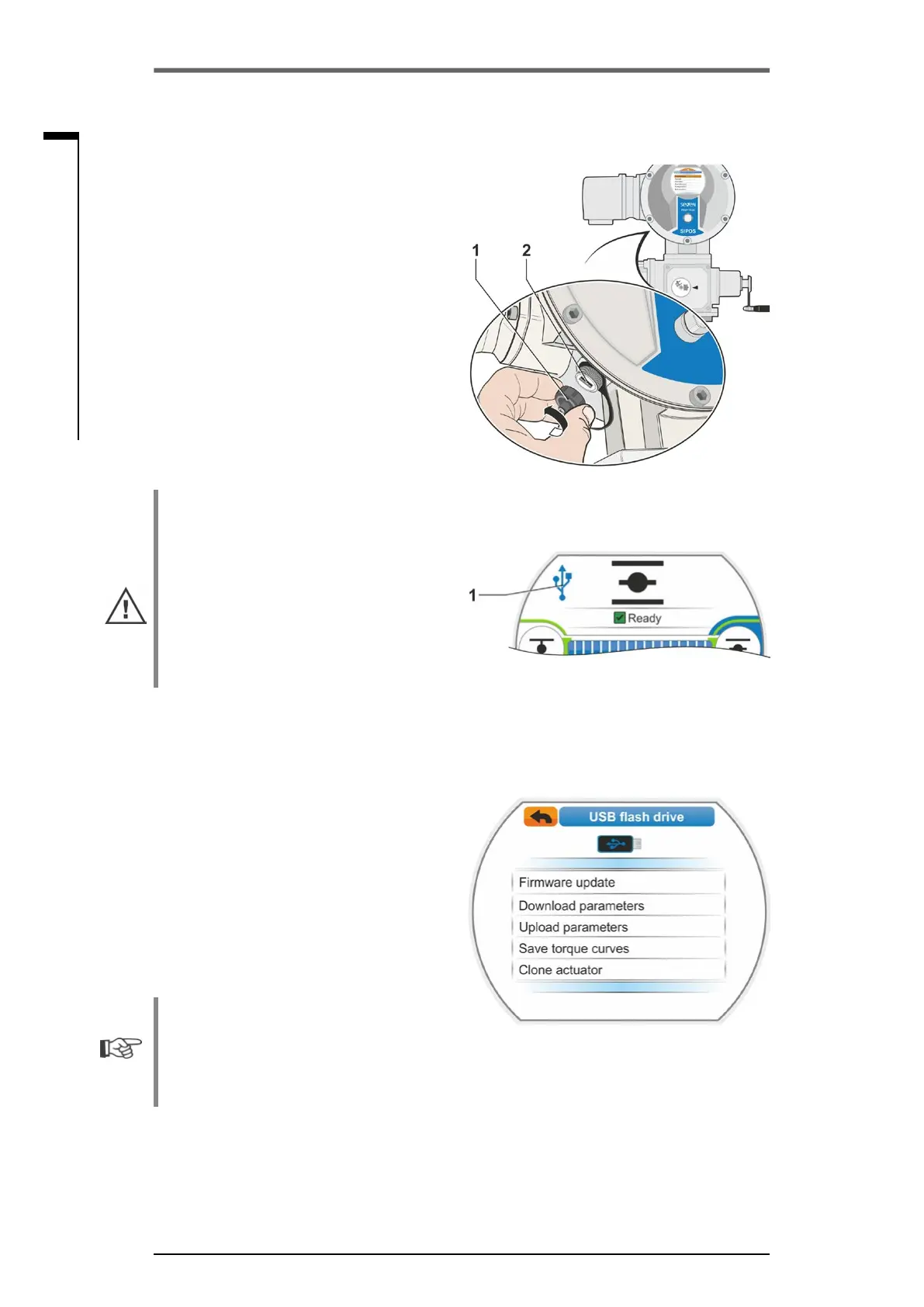

Fig� 1: USB port
Fig� 2: Indication in the display: Communi-
cation via USB
13�4 Data exchange via USB ash drive
OnceaUSBashdriveisconnected,theactua-
tordisplaysthe“USBashdrive”menuwiththe
followingmenuitems(referalsotog.)
■
Updatermware
■
DownloadparameterstoUSBashdrive
■
UploadparametersfromUSBashdrive
■
Save torque curves
■
Clone actuator
Select menu items/functions as usual.
The following functions are only available
in ‘Expert’ user level and in ‘LOCAL’ or ‘Off’
mode.
■
Updatermware
■
UploadparametersfromUSBashdrive
■
Clone
Fig�: USB menu
