SIPOS SEVEN 2SA7 - Parameters and Their Values in the ‘Additional Gear’ Menu

Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
Page 38 Y070.302/EN
7 Commissioning
7.2 Additional gear
7
Commissioning
Change parameter value operation sequence for additional gear
The operation sequence described here is
identical for all parameters of the additional gear
and is the continuation of the previous operation
sequence 6b); the display shows the ‘Additional
gear’menuand“Userdened”hasbeense-
lected for ‘Model’.
7. Select parameter; turn Drive Controller (11)
and set selection marker to the parameter.
Theslider(g.2,item1)changesitsposition
on the scrollbar (2) according to the position
of the selected item within the menu.
8. Conrm;pressDriveController(12).
The setting menu opens.
9. Change parameter value:
– PressDriveController(digitisashing).
– Turn Drive Controller, until the desired
digit is displayed.
– Press Drive Controller; the selected digit
is accepted.
Refer also to „Changing parameter values/
characteristics“ on page 24.

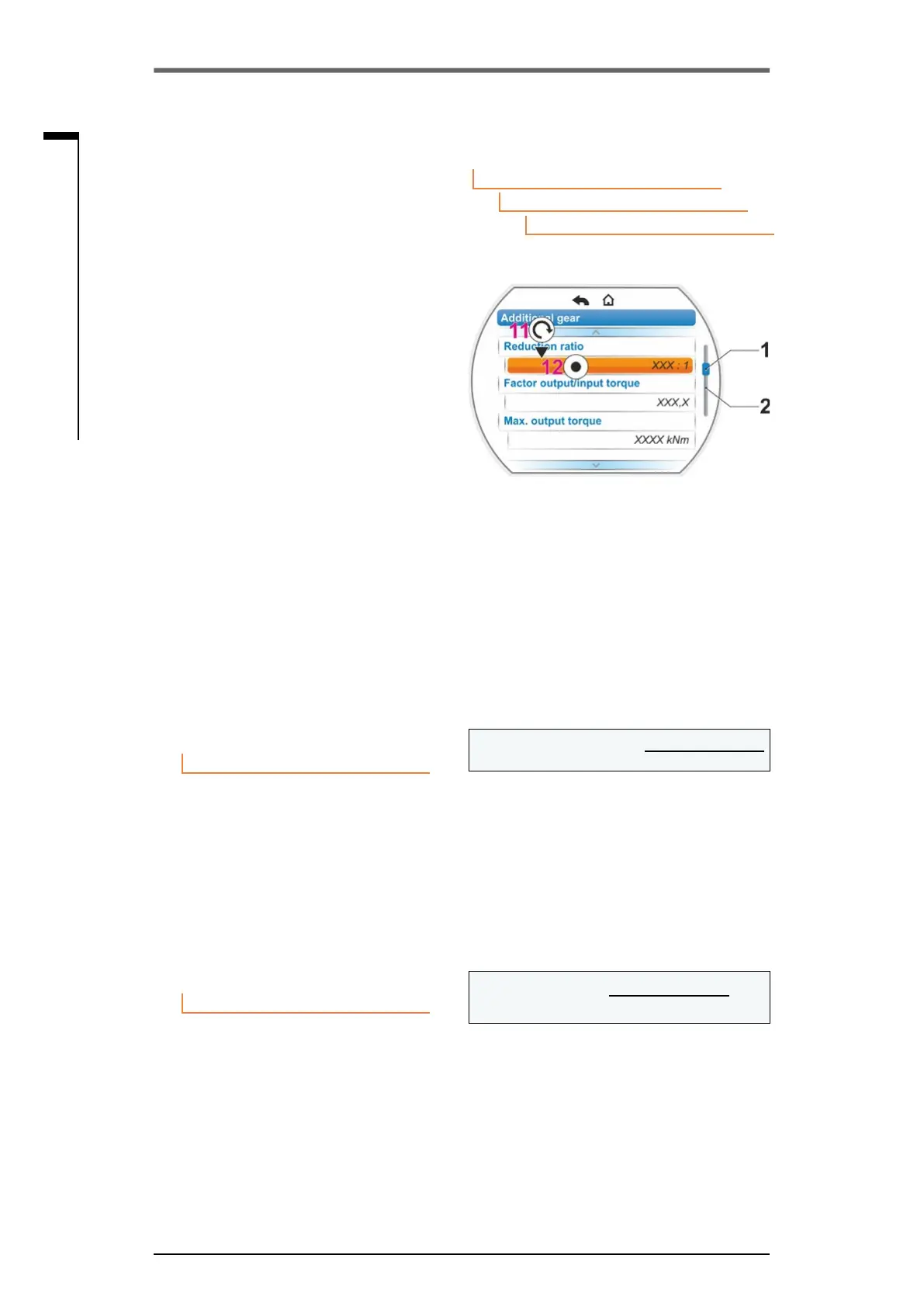

Fig� 2: Parameters within ‘Additional gear’
menu
Main menu
Parameter
Additional gear
Fig� 1: Navigation to ’Additional gear’-
menu
7�2�2 Parameters and their values in the ‘Additional gear’ menu
The values which can be programmed in the ‘Additional gear’ menu refer to the properties of the
additional gear and are listed on the gearbox name plate.
Reduction ratio (for rotary and part-turn gearboxes),
Spindle pitch (for linear thrust unit)
The reduction ratio is the ratio between
speeds at gearbox input and gearbox output.
Setting range for
■
Rotary gearboxes (reduction ratio) 1.0 to 100
■
Part-turn gearboxes (reduction ratio): 1 to 10,000
■
Linear thrust unit (spindle pitch [mm]): 1.0 to 100
Factor output/input torque (for rotary and part-turn gearboxes),
Factor input/output force (for linear thrust unit)
The “output torque/input torque” factor indi-
cates the amount by which the torque or force
at the gearbox output exceeds the torque or
force at the gearbox input.
Setting range for
■
Rotary gearbox (factor output/input torque) 0.1 to 500
■
Part-turn gearbox (factor output/input torque) 1.0 to 5,000
■
Linear thrust unit (factor input torque [Nm]/output force [kN]): 1.0 to 100
n
(gearbox input)
n
(gearbox output)
i
(Reduction ratio)
=
Formula: Reduction ratio
Reduction ratio
1.0 – 100
M
(gearbox output)
M
(gearbox input)
f
(Factor)
=
Formula: Factor output torque/input
torque
for rotary/part-turn gearboxes
Factor output/input torque
0.1 – 500
