SIPOS SEVEN 2SA7 - Max. Output Torque; Max. Input Speed; Rev.;Stroke; Signaling Gear Setting

Y070.302/EN Page 39
Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
7
Commissioning
7 Commissioning
7�2 Additional gear
Max� output torque (for rotary and part-turn gearboxes),
Max� output force (for linear thrust units
The maximum torque/maximum force which
mayoccuratthegearboxinput(g.,item2);
i.e. the torque/force the additional gear may be
loaded with.
Setting range for
■
Rotary gearbox (max. output torque):
1 to 50,000 Nm
■
Part-turn gearbox (max. output torque): 0.01
to 500 kNm
■
Linear thrust unit (max. output force):
1 to 1,000 kN
The tripping torque (max. torque for the valve) is
setinthe”Parameter“menu-->”Valve”,referto
„Tripping torque/tripping force“ on page 44 et
seqq.
Max� input speed
The maximum speed which can be applied to the additional gear input is entered here. Refer to
g.,item1.
Setting range: 1 to 1,000 rpm
Rev�/stroke (for rotary gearboxes)
Positioning angle (for part-turn gearboxes)
Stroke (for linear thrust units)
This menu item is only available for actuators with signaling gear.
The value required for covering the whole travel is set here.
Setting range for
■
Rotary gearbox [rev/stroke] 0.1 to 9,900
■
Part-turn gearbox (positioning angle): 1 to 360°
■
Linear thrust unit (stroke): 1 to 10,000 mm
Signaling gear setting
This menu item is only available for actuators with signaling gear.
The value calculated on the basis of the parameter values above is displayed here.,
The signaling gear has to be adjusted to this value, refer to chapter „7.4.2 Signaling gear ratio“ on
page 47.
Max� output torque
1 – 50,000
Max� input speed
1 – 1,000 rpm
Rev�/stroke
0.1 – 9900
Signaling gear setting
XX

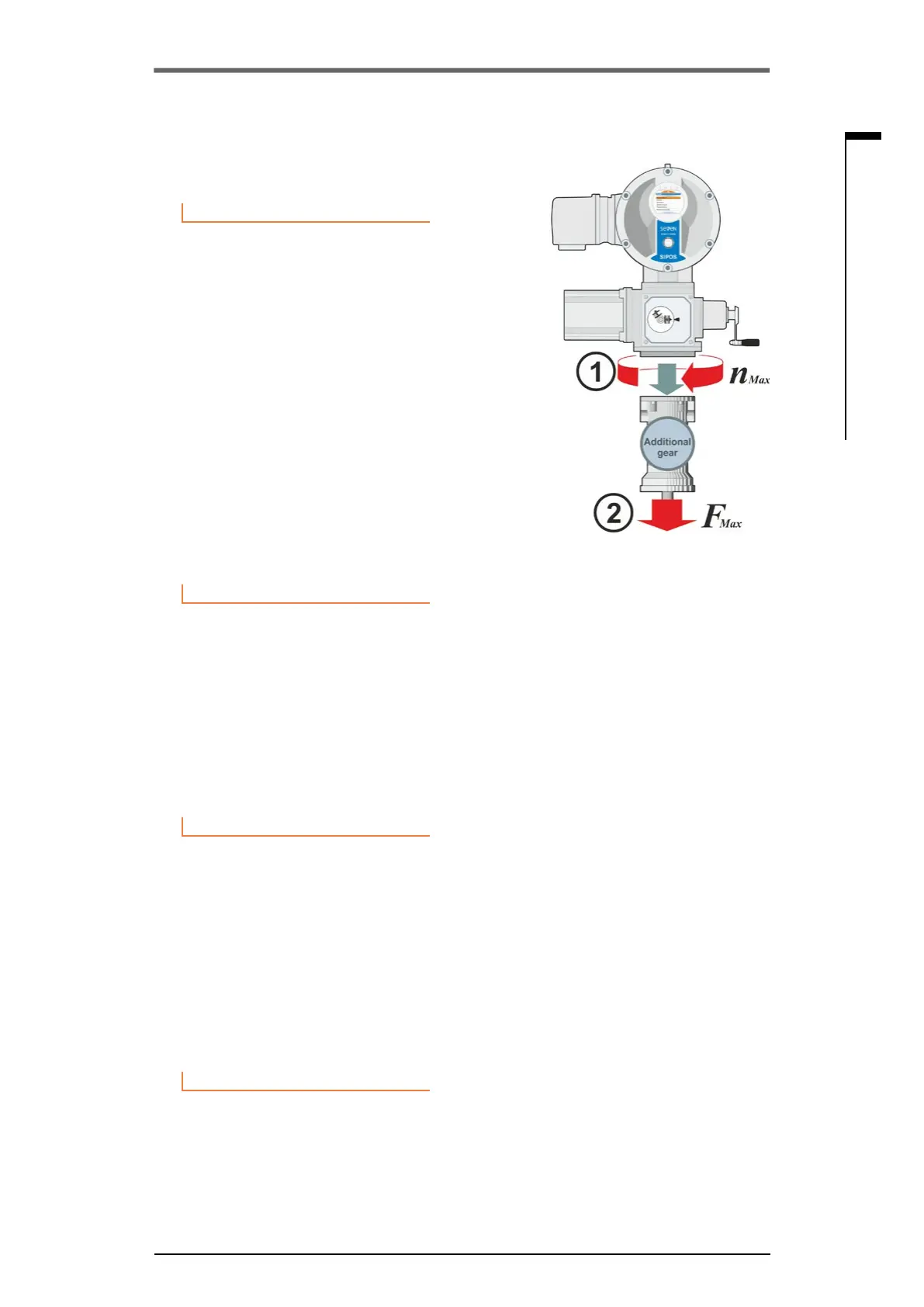

Fig�: 1 = Max� input speed
2 = Max� output torque/force
