Y070.302/EN Page 15
Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
4
Instructions on operator control and operation
4 Instructions on operator control and operation
4 Instructions on operator control and operation
4�1 Crank handle, hand wheel
■
Motor driven operation of the crank handle/hand wheel is not permitted.
■
After commissioning, the actuator must not be operated beyond the parameterized end posi-
tions using the crank handle/hand wheel.
■
When pressing in the crank handle/ the hand wheel, make sure that the hand is removed be-
tween the crank handle/the hand wheel and the housing: Danger of crushing! See the following
operation step 3.
The crank handle/handwheel does not rotate during motor operation.
Operation
Operation of all actuators except for 2SG7
and 2SQ7:
1. The actuator must be at standstill (1).
2. Remove the clamp (option) (2). The clamp is
used as protection against accidental engag-
ing of the crank handle/the hand wheel, if
the actuator is exposed to heavy vibration or
water pressure (enclosure protection IP68).
3. Press crank handle/hand wheel in direction
of the gear housing against the spring force
(3) and turn (4). (Caution: Danger of crushing
when engaging!)

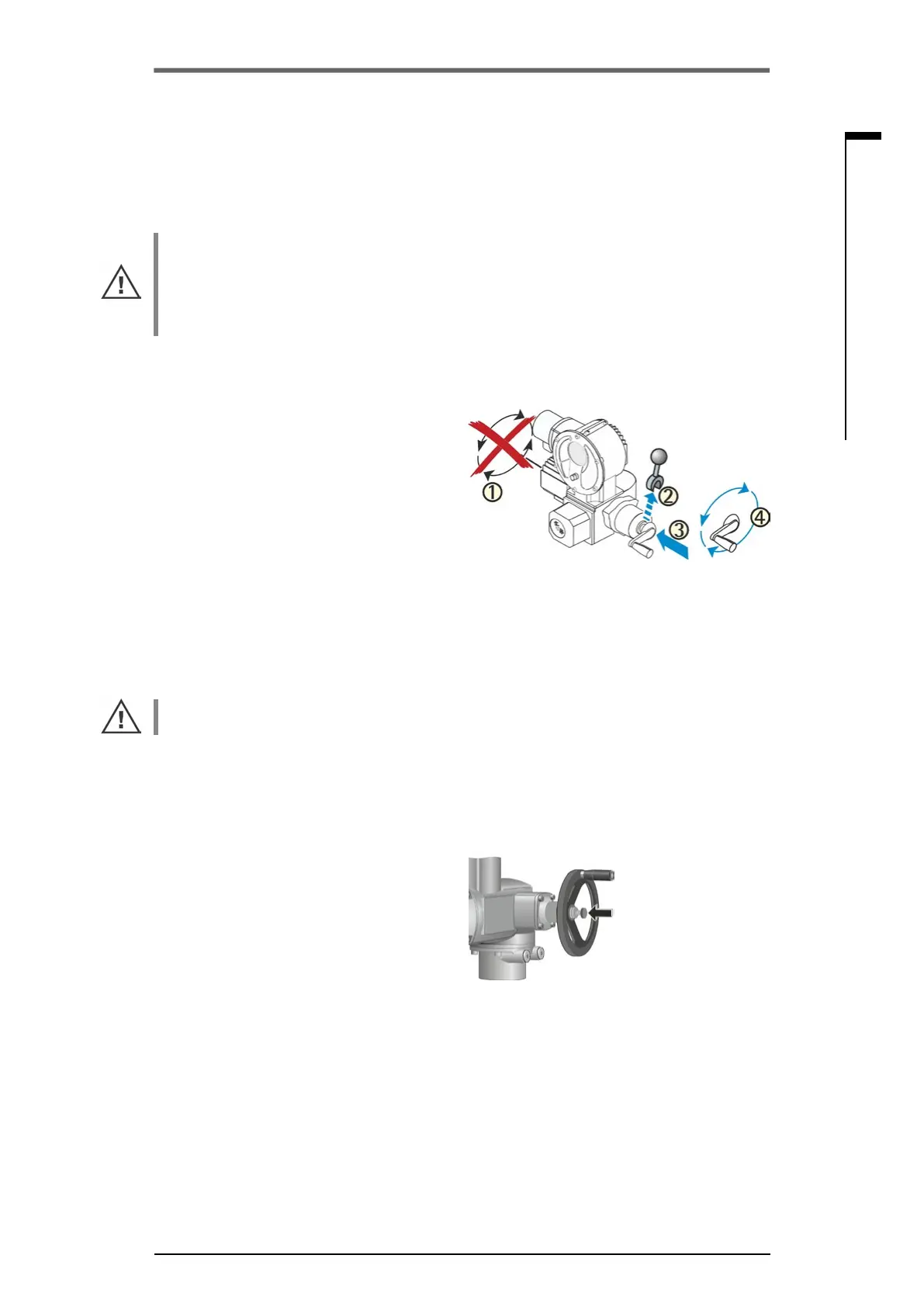

Fig�: Operate crank handle
If crank handle/hand wheel is pressed in, the motor stops. The actuator can only be operated elec-
trically once the crank handle/hand wheel is released.
If the actuator is operated manually in "REMOTE“ state and an operation command is present,
the actuator is immediately operated after releasing the crank handle/hand wheel.
For 2SG7 only:
Turn hand wheel without pressing it in. Manual operation interferes with motor operation: If the hand
wheel is turned during motor operation, the positioning time is either extended or reduced, depend-
ing on the direction of rotation.
2SQ7 only:
Only engage manual drive while motor is at
standstill, refer to illustration.
Manual operation is automatically disengaged
when switching on the motor.
The handwheel does not rotate during motor
operation!
Direction of rotation
Clockwise turning of crank handle/hand wheel leads to
■
2SA7 rotary actuator: Clockwise rotation of the output drive shaft (exception: 2SA7.7. and
2SA7.8.)
■
2SG7, 2SQ7 part-turn actuator: With view on the mechanical position indicator: clockwise rotation
at the coupling or at the swing lever.
Depending on the gear unit installed, the direction of rotation may vary.
Fig�: Engage manual operation for 2SQ7
