Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
4
Instructions on operator control and operation
4 Instructions on operator control and operation
1 Indicates the state of the actuator.
Refer to chapter „4.3 Actuator status indica-
tion“ on page 18.
2 Position indication
Thegureandthepositionbarindicatehow
far the actuator has progressed in position
OPEN.
The decimal places are displayed in accor-
dance with the actuator variant:
– HiMod – two decimal places;
– PROFITRON with niP – one decimal
place;
– PROFITRON with signaling gear – no
decimal place;
If the actuator is in one of the end positions, an
end position symbol is indicated instead of the
number, refer also to g.2.
3 Symbol for end position OPEN
, end posi-
tion CLOSED .
For a detailed description, refer to the fol-
lowing section "End position symbols and
position bars".
4 Symbols for control mode
They indicate the selected control mode:
"LOCAL“
, "REMOTE“ or "OFF“ ,
refer to chapter „5 Start menu“ on page 26.
5 Flag of the selected language.
6 Start menu
For a detailed description, refer to chapter „5
Start menu“ on page 26.
End position symbols and position bars
The top area of the status indication provides
information on the cut-off mode in the end posi-
tions and on the current status of the actuator.
1 Cut-off mode in end positions:
1a = Orange closed circle means 'torque-
dependent cut-off mode'.
1b = Green open circle means 'travel depen-
dent cut-off mode'.
2 End position range indication:
2a = End position range of end position
CLOSED.
2b = End position range of end position
OPEN.
The length of the indication bar represents the
scope of the end position range.
3 Indication during operation:
3a = The position bar indicates the progress
during operation (opening and closing
the valve). The value indicates in % how
far the actuator has been operated to
position OPEN.
3b = The symbol of the end position into
which the actuator is currently being
operatingisashing.

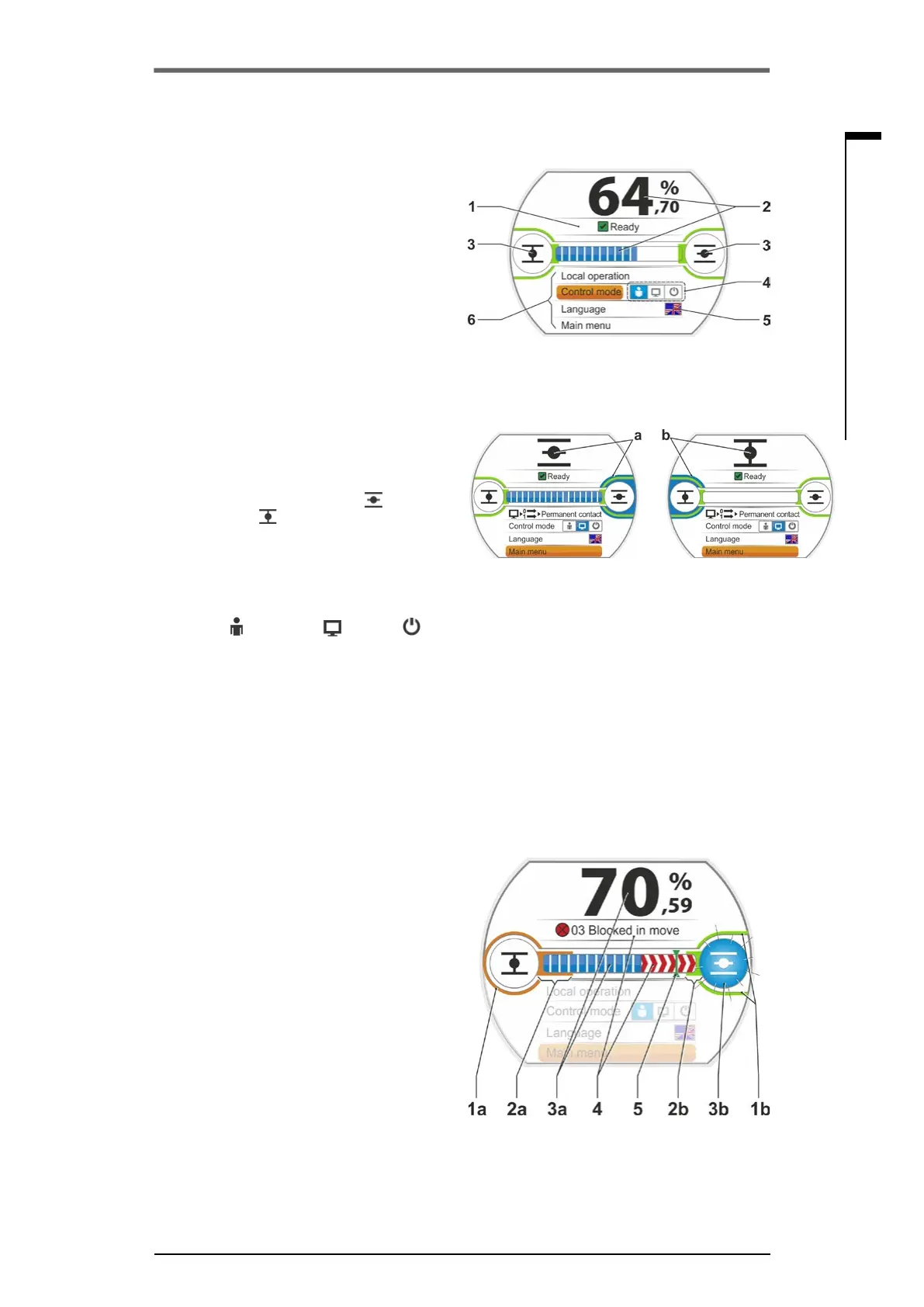

Fig� 1: Status indication
Fig� 2: Actuator in end position
a = End position OPEN; b = End posi-
tion CLOSED
Fig� 1: End position symbols and progress
bar
Texts/symbols in the status indication
