SIPOS SEVEN 2SA7 - Sequence of the Commissioning Actions

Y070.302/EN Page 35
Operation instructions
SIPOS SEVEN: PROFITRON, HiMod
7
Commissioning
7 Commissioning
7�1 Basic information

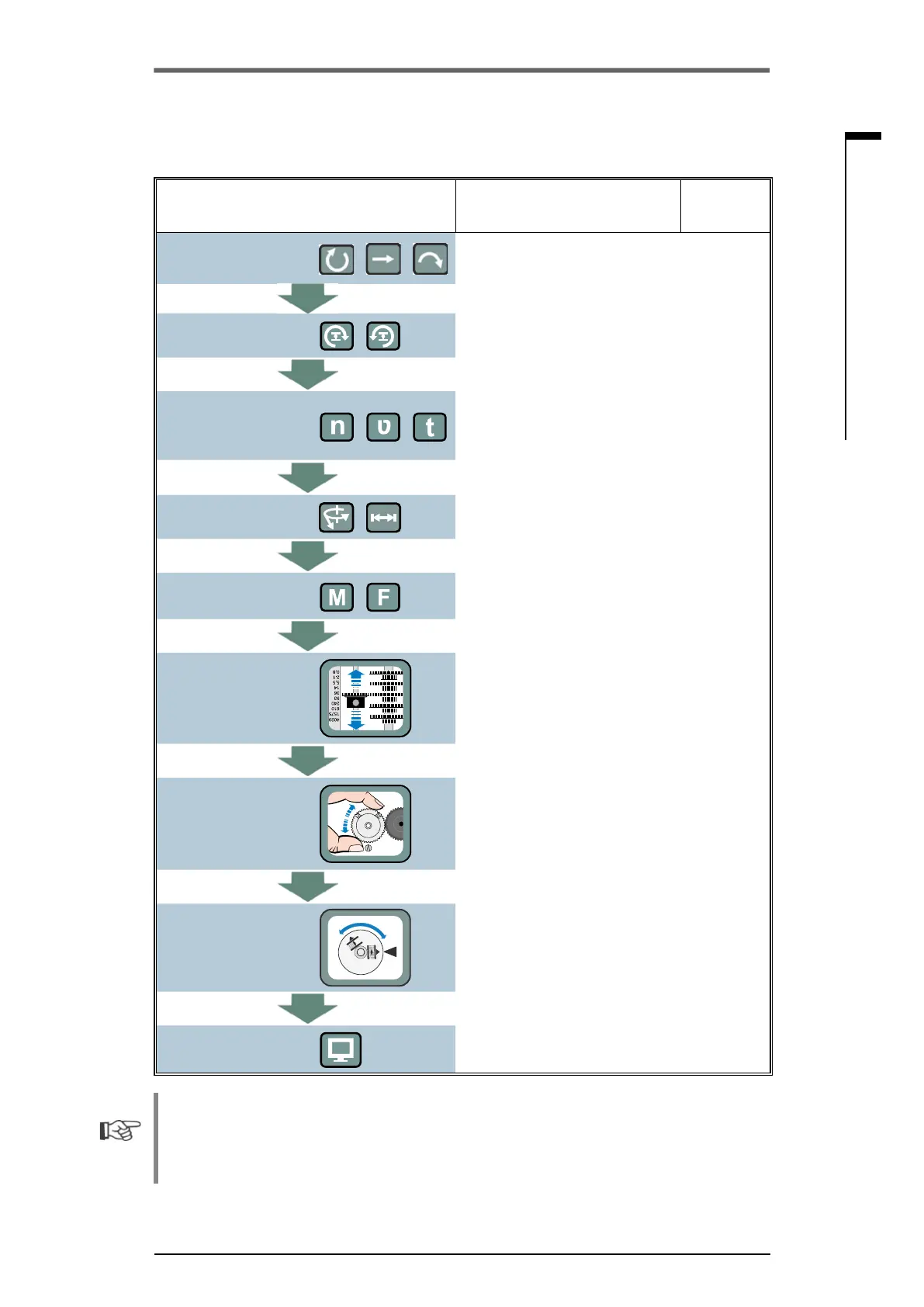

The overview below shows the sequence of the commissioning actions�
Action Explanation
For a de-
scription,
refer to:
Select additional gear
/ /
Check/set gear type and model. Page 36
Select closing
direction
/
Set/check closing direction: clock-
wise or counterclockwise.
Page 40
Program output
speed or positioning
speed,
positioning time
/ /
Program/check output
speed or positioning speed,
positioning time
Page 41
Select cut-off
mode
/
Check/set cut-off mode: torque-
dependent, force-dependent or
travel-dependent.
Page 42
Program
tripping torques
/
Check/Program tripping torques/
cut-off forces.
Page 42
Adjust
signaling gear
Check/adjust signaling gear ratio.
For version with signaling gear
only.
Page 47
Adjust end
positions
End position adjustment for actua-
tors with signaling gears.
End position adjustment for actua-
tors in "non-intrusive version".
Page 48
Page 56
Adjust position
indicator
Check/set mechanical position
indicator, if available.
Page 55
Program
REMOTE control
Adapt actuator to the requirements
of the automation system.
Page 66
■
For the control system parameters refer to chapter „8.3 Control system parameters“ on page
66.
■
You do no have to perform all settings. Depending on whether settings have already been
speciedwhenorderingtheactuatororwhethertheactuatorwasdeliveredmountedtothe
valve,checkingthesettingswillbesufcient.
