Section02ENGINE

Subsection 09 (ENGINE MEASUREMENT)

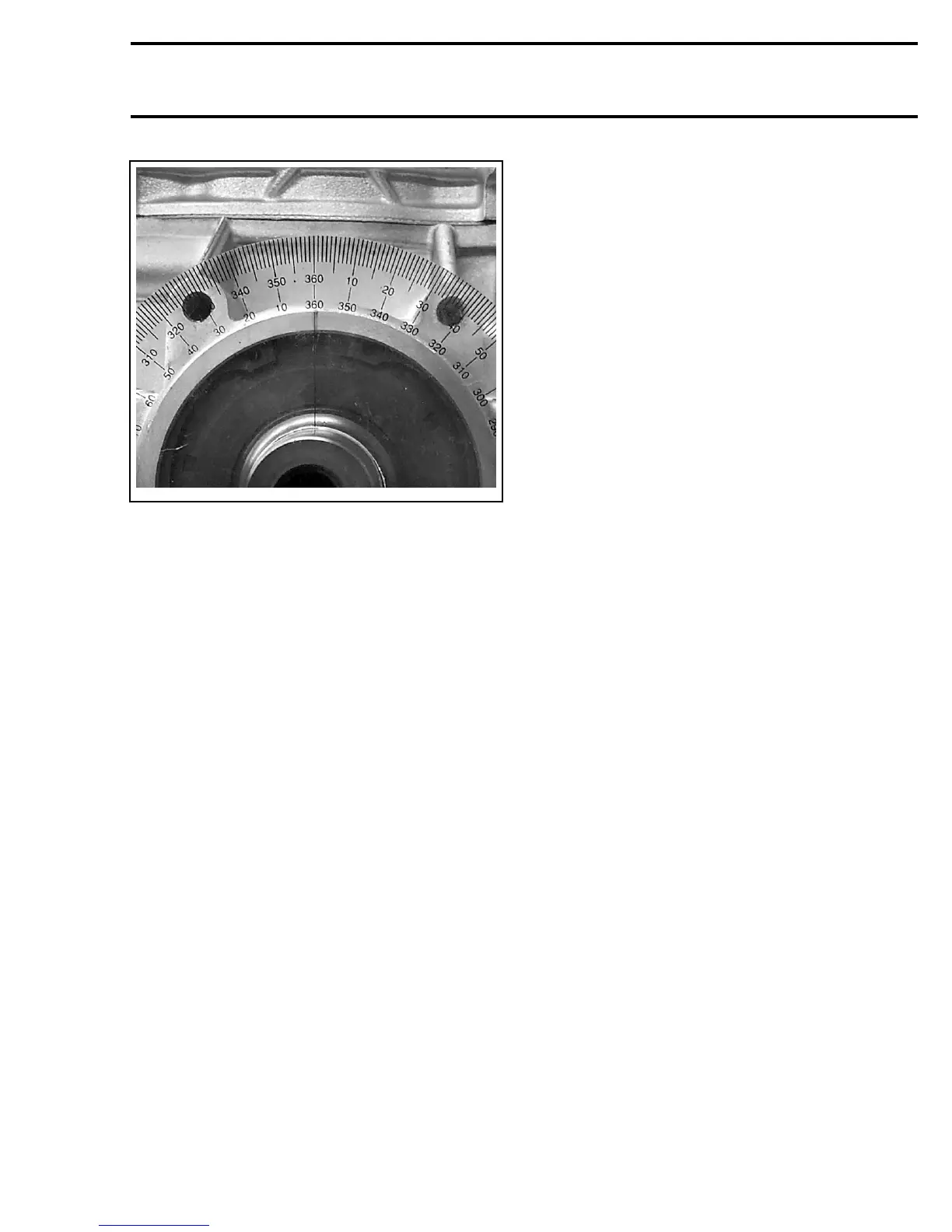

A35C32A

Remove TDC gauge and install it in spark plug hole

on PTO side.

Bring PTO piston to top dead center. Degree

wheel must rotate with crankshaft.

Interval between cylinders must be 180° ±0.5.

Any other reading indicates a misaligned (twisted)

crankshaft.

mmr2005-119 81
