Section 04 ENGINE MANAGEMENT (SDI)
Subsection 02 (DIAGNOSTIC PROCEDURE)
A35C47A
1
1. Remove connector from cap
Connect supply harness (P/N 529 035 869), to ve-
hicle 6-pin connector.
Connect the 6 pin diagnostic cable from VCK to
supply harness.
NOTE: SDI engines already have a 12 V battery;
they do not need any external 9 V or 12 V power
to allow programming and troubleshooting. The
use of the supply harness will keep the ECM ON.
Not using it will make the ECM shuts-off after a
few seconds if no communication takes place.

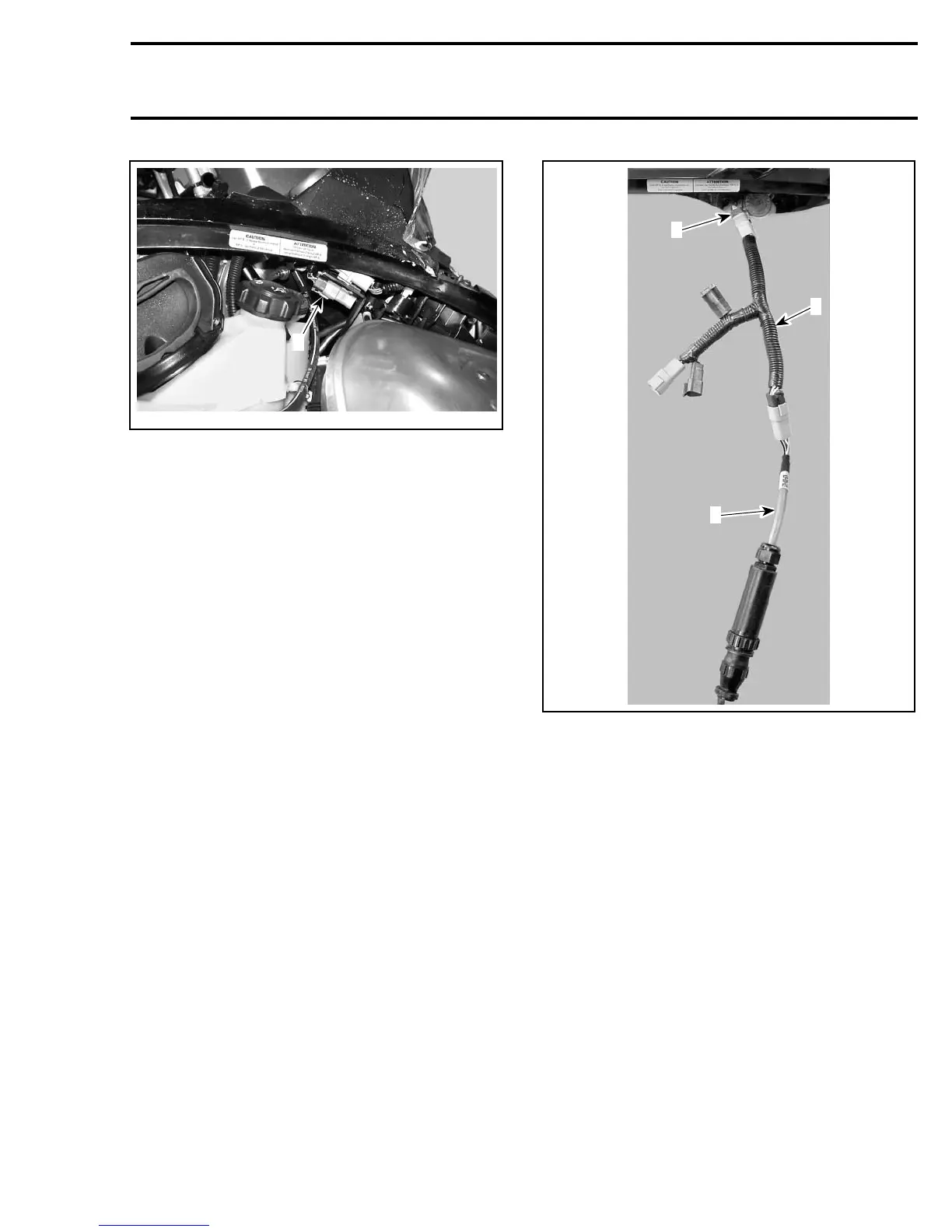

A33E0YA
2
3
1
1. Supply harness
2. Vehicle 6-pin connector
3. VCK cable
