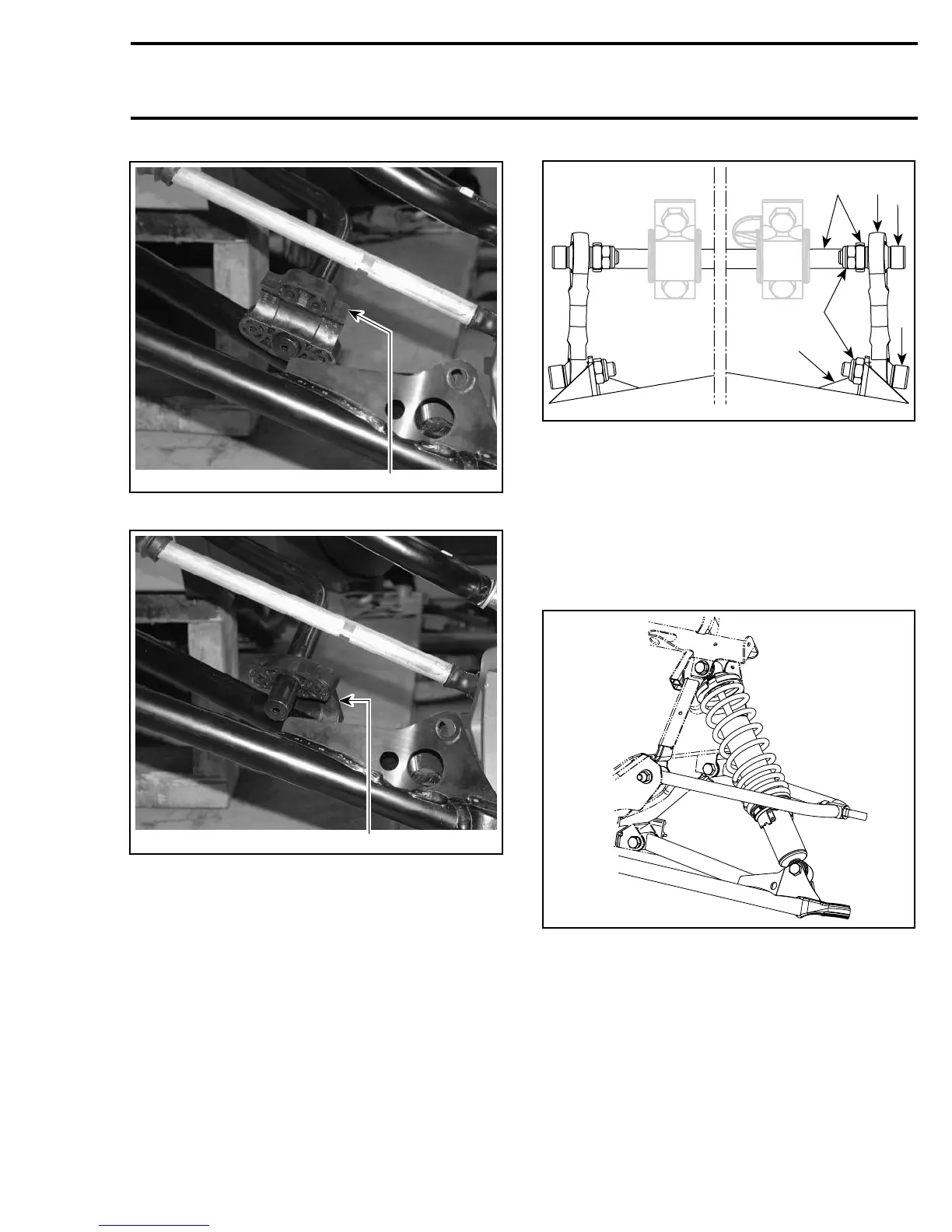

Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
1
A33F2EA
1. Temporarily rotate block by 180° for its insertion
1
A33F2FA
1. Push block on bar end beyond lower arm then rotate
back to its normal position
Mach Z
Secure anti-sway bar to link rod as per next illus-
tration.
1
A35F06A
2
3
4
5
3
LOOKING FROM THE FRONT OF THE VEHICLE
1. Anti-sway bar
2. Link rod
3. Allen screw
4. Elastic nut
5. Lower A-arm
Shock Absorber
Ensure to reinstall shock absorber in the proper
position according to model.
A33F3RA
SUMMIT
mmr2005-142 303
