Section02ENGINE
Subsection 01 (LEAK TEST)

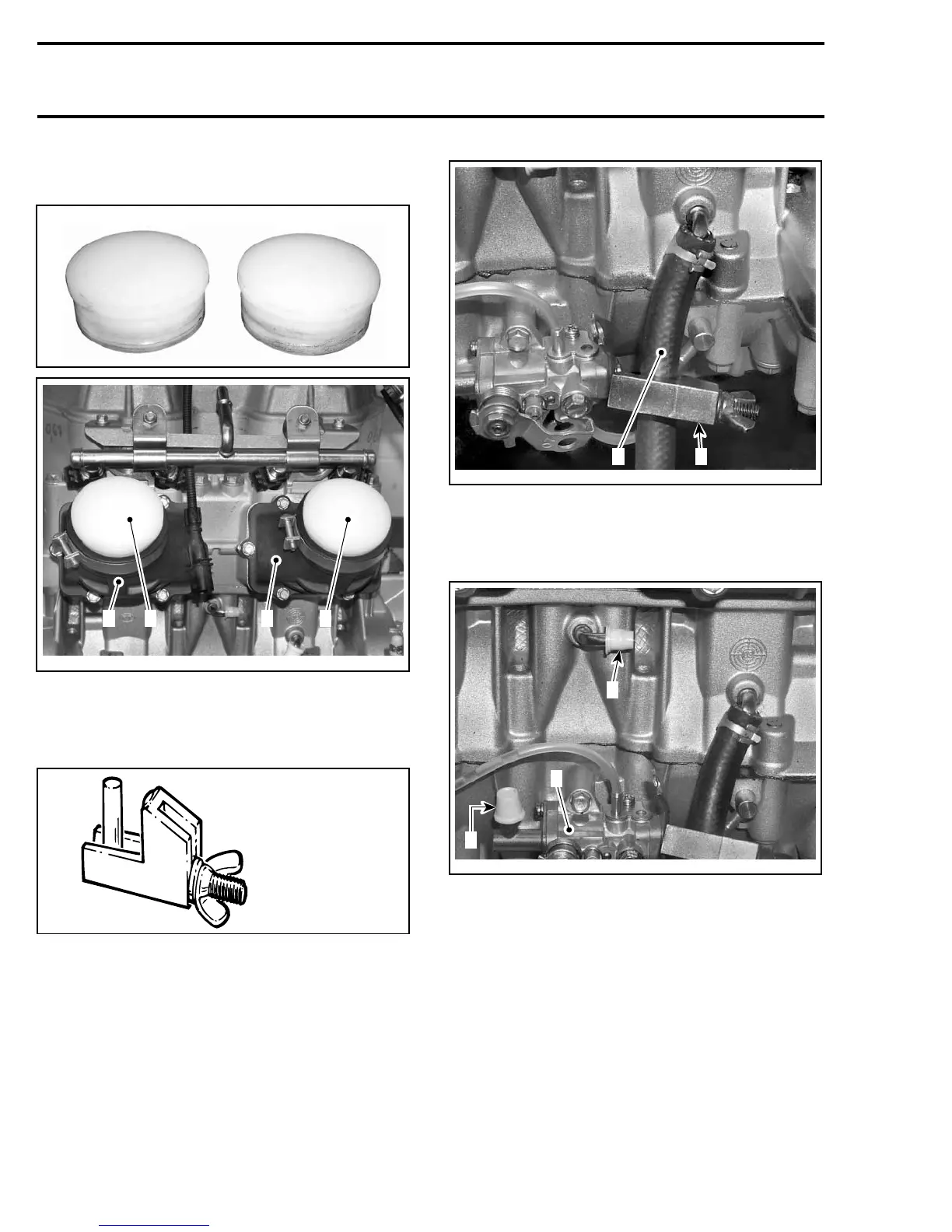

Install intake plugs (P/N 529 036 000) in the intake
rubber boots.
529 036 000
A35C3KA
1 2 1 2
1. Intake rubber boots
2. Intake plugs
Using a small hose pincher (P/N 295 000 076),
block impulse hose.
295 000 076
A35C3LA
1 2
1. Impulse line
2. Hose pincher
Block inlet and outlet fitting of oil injection system
with rubber cap.
A35C3MA
2
1
3
1. Inlet fitting
2. Outlet fitting
3. Oil injection pump
Install the vacuum/pressure pump on exhaust
plate fitting.
10 mmr2005-113
