Section02ENGINE
Subsection 06 (E-RAVE SYSTEM)
A35C0DA

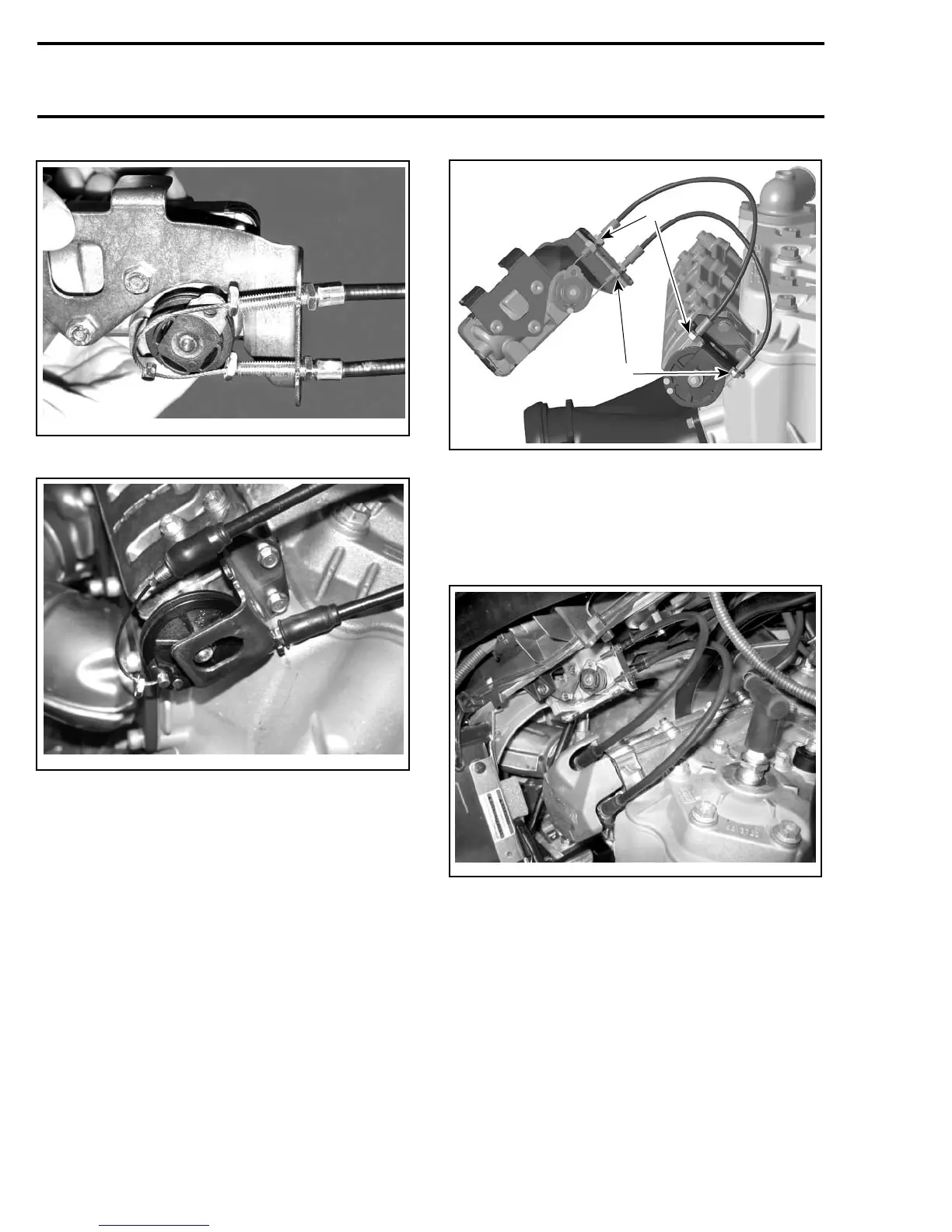

Detach cables from E-RAVE shaft pulley no. 2.
A35C0EA
Installation
Reverse removal steps. However, pay attention
to the following.
Connect E-RAVE cables as per following photo:
A35C0QA
1
2
CABLE POSITIONS
1. Cable ends in top holes
2. Cable ends in bottom holes
Tighten nut of each cable to E-RAVE shaft pulley
bracket.
Ensure cables are parallel to each other.
A35C0SB
RIGHT
44
mmr2005-148
