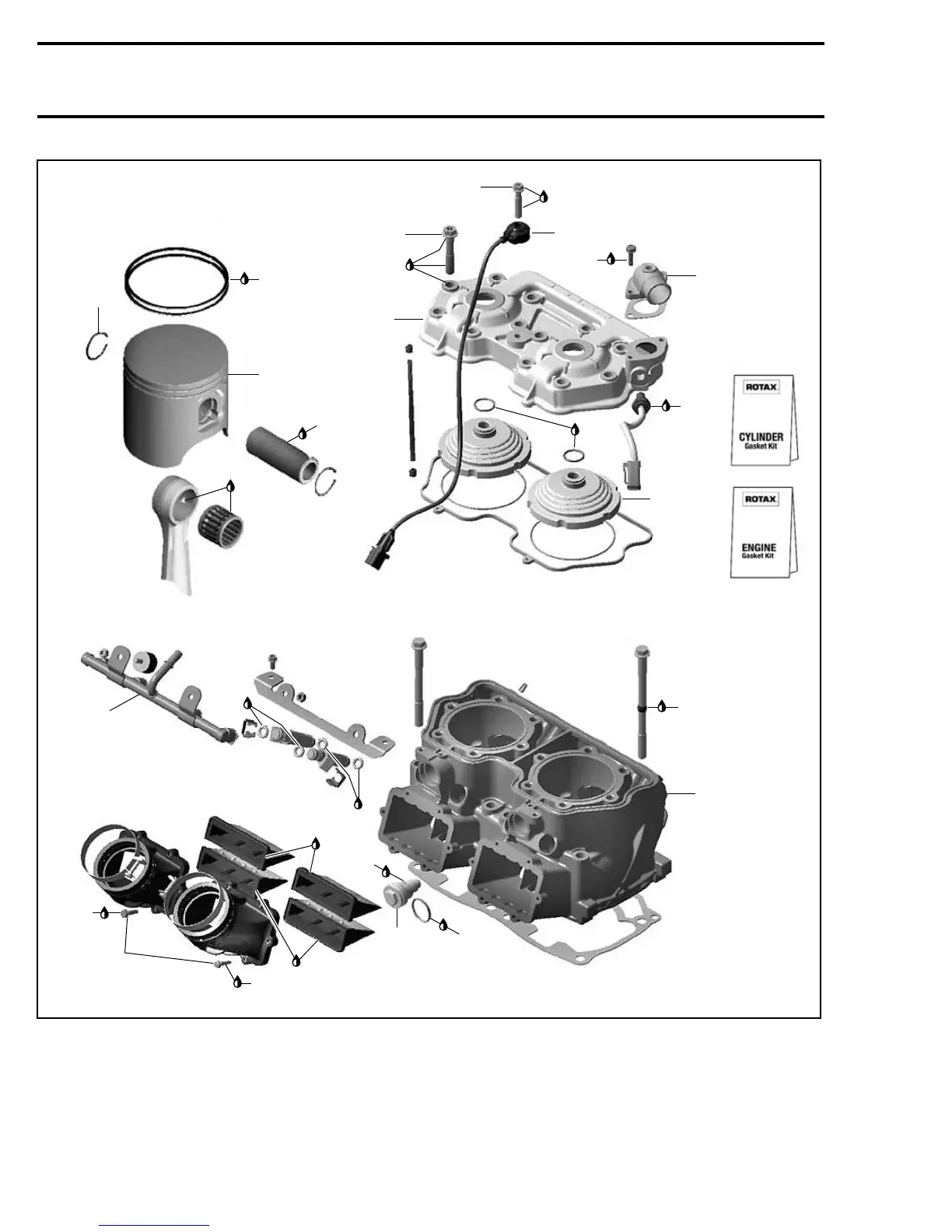

Section02ENGINE
Subsection 07 (TOP END)
A35C0TS
11
20 Nm
(15 lbfft)
5.5 Nm
(49 lbfin)
4
a
40 Nm
(30 lbfft)
6
b
b
b
a
5
2
c
9 Nm
(80 lbfin)
3
d
14
10
a
a
b
c
13
a
b
c
1
c
9
7
25 Nm
(18 lbfft)
8
25 Nm
(18 lbfft)
a
a
15 Nm + 45°
(11 lbfft)
a. Molykote 111 (P/N 413 707 000)
b. XP-S synthetic blend injection oil (P/N 293 600 071)
c. Loctite 243 (P/N 293 800 060)
d. Loctite 5910 (P/N 293 800 081)
