14 • Technical Data

_____________________________________________________________________________________________

4.2 Typical Connection of the HRVS-DN IP00 Unit (OEM Kit)

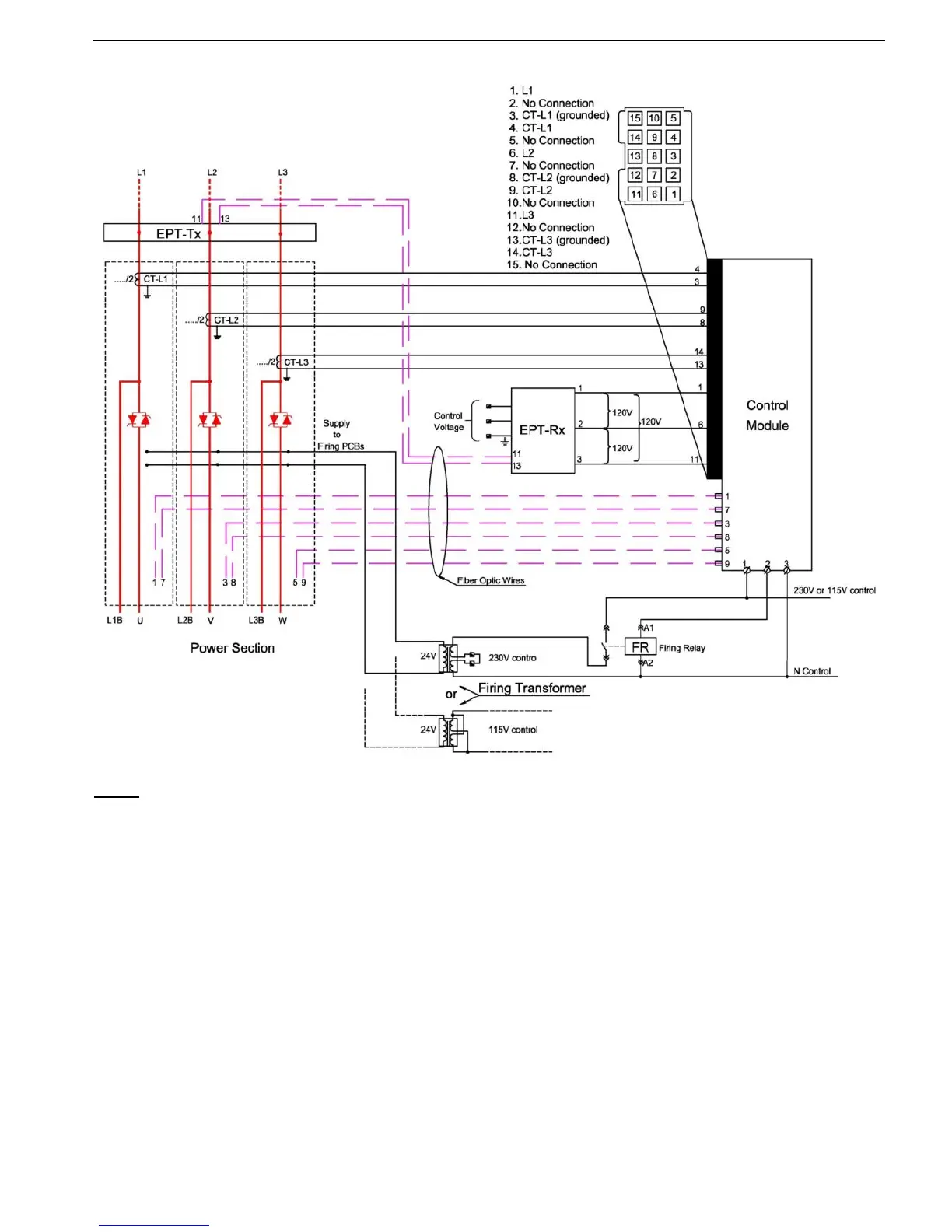

Figure 9 – Typical Connection of HRVS-DN IP00 Unit (OEM Kit)

Notes:



Figure 9 shows a typical connection of an HRVS-DN IP00 unit (OEM kit) of up to 6.6kV with a control voltage

of 115/230VAC. For connection diagrams for other models consult the factory.

 L1B, L2B, L3B bus bars are only available in HRVS-DN up to 6.6kV.
