10.2.2 Parts Identification in the HRVS-DN Cabinet (HRVS-DN from 10kV and up)

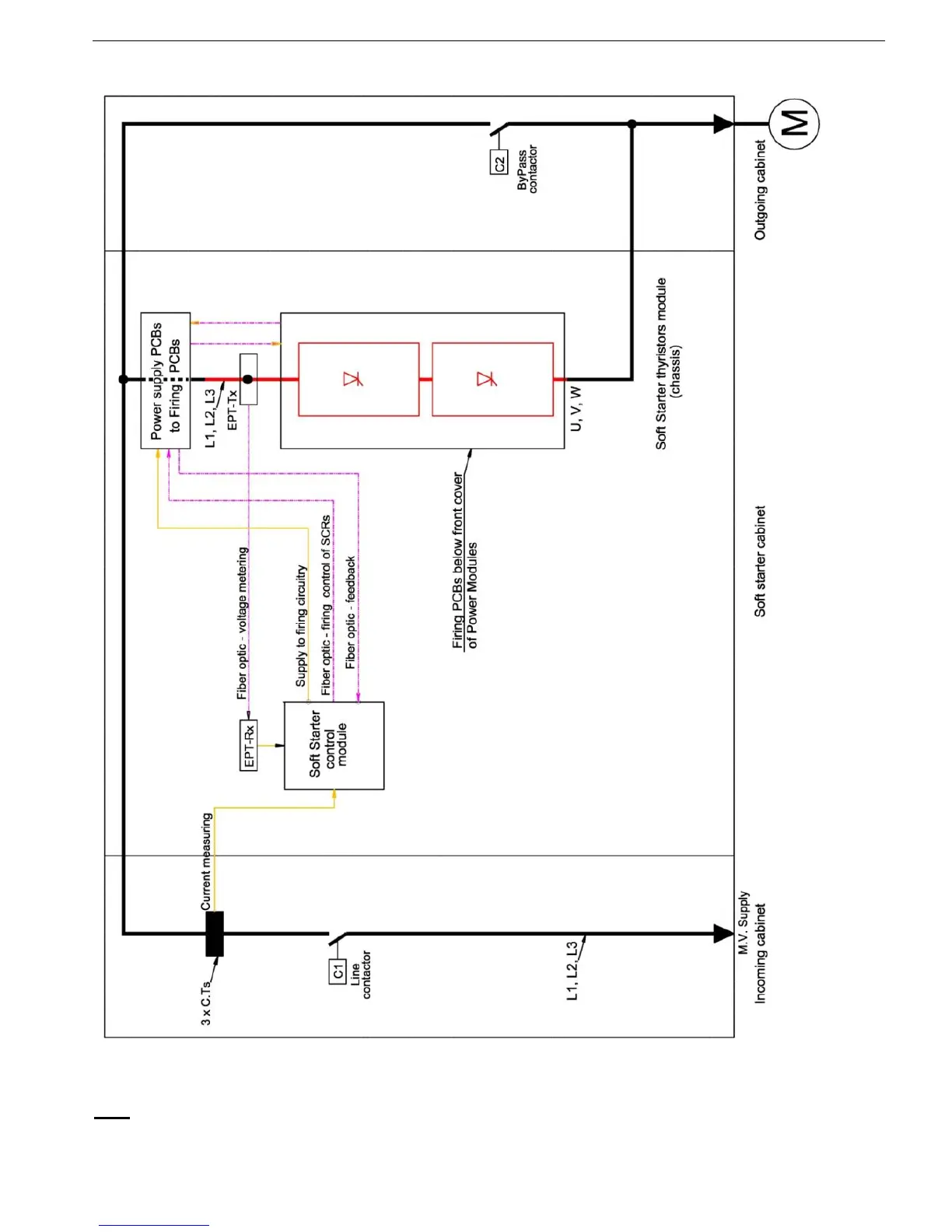

Figure 31 – HRVS-DN from 10kV and up, Standard Cabinet – One Line Diagram
The standard cabinet includes three frames with nine doors. Four of the doors are medium voltage doors and
five doors are for low voltage: low voltage compartment door and customer terminals compartment doors.
Note
:
You are only allowed to open the low voltage compartment door and customer terminal compartments doors
when medium voltage is connected to the cabinet!
