16 • Technical Data

_____________________________________________________________________________________________

4.3.2 Typical Connection of HRVS-DN from 10kV and up.

The HRVS-DN must be connected with a Line Contactor and a Bypass Contactor as demonstrated in

Figure

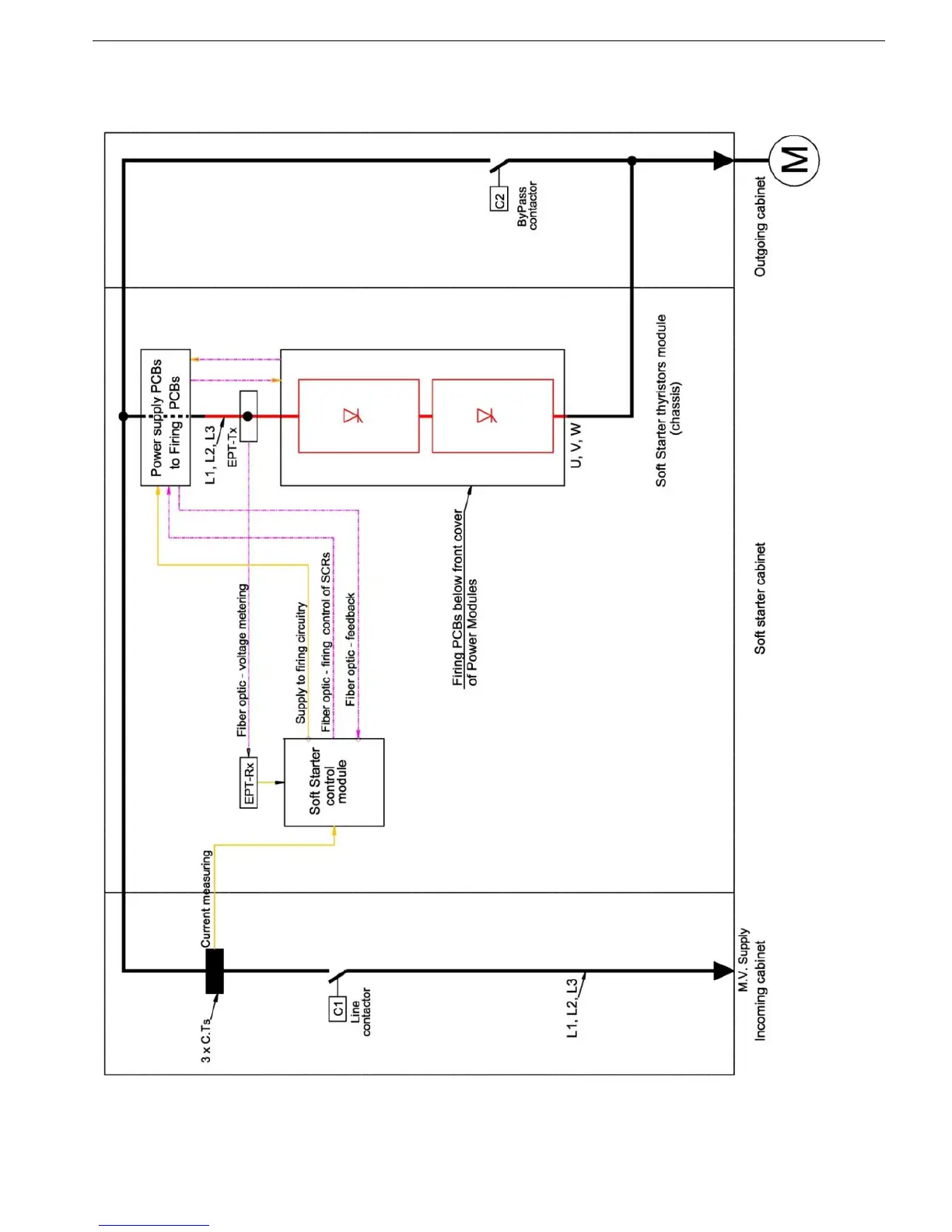

Figure 11 – Typical Connection of HRVS-DN from 10kV and up With Line Contactor and Bypass Contactor
