164 • HRVS-DN Communication (DeviceNet™)
_____________________________________________________________________________________________
18. HRVS-DN COMMUNICATION (DEVICENET™)
18.1 Introduction
18.1.1 Overview
This is a description of the different data types that are used in the documentation of the object model. These
are standard definitions of the Open DeviceNet Vendor Association (ODVA).
18.1.2 Definitions
The following table has a description of all of the data types used.
USINT Unsigned Short Integer (8-bit)
UINT Unsigned Integer (16-bit)
UDINT Unsigned Double Integer (32-bit)
INT Signed Integer (16-bit)
STRING Character String (1 byte per character)
SHORT
STRINGNN
Character String (1
st
byte is length; up to NN
characters)
BYTE Bit String (8-bits)
WORD Bit String (16-bits)
DWORD Bit String (32-bits)
REAL IEEE 32-bit Single Precision Floating Point
18.1.3 Reference Documents
ODVA Volume 1: CIP Common Specification, Edition 3.2 ©2007 ODVA
ODVA Volume 3: DeviceNet Adaptation of CIP, Edition 1.4 ©2007 ODVA
18.1.4 Open DeviceNet Vendor Association, Inc. (ODVA)
ODVA is an independent supplier organization that manages the DeviceNet and EtherNet/IP specification and
supports the worldwide growth of the Common Industrial Protocol (CIP).
18.1.5 Rotary Switch Configuration
Two rotary switches configure the DeviceNet MacID, and one rotary switch configures the baud rate. Use a
small screwdriver to change the switch settings. The NODE ADDRESS (MAC ID) rotary switches are shown in
Figure 56, and the DATA RATE rotary switch is shown Figure 57.

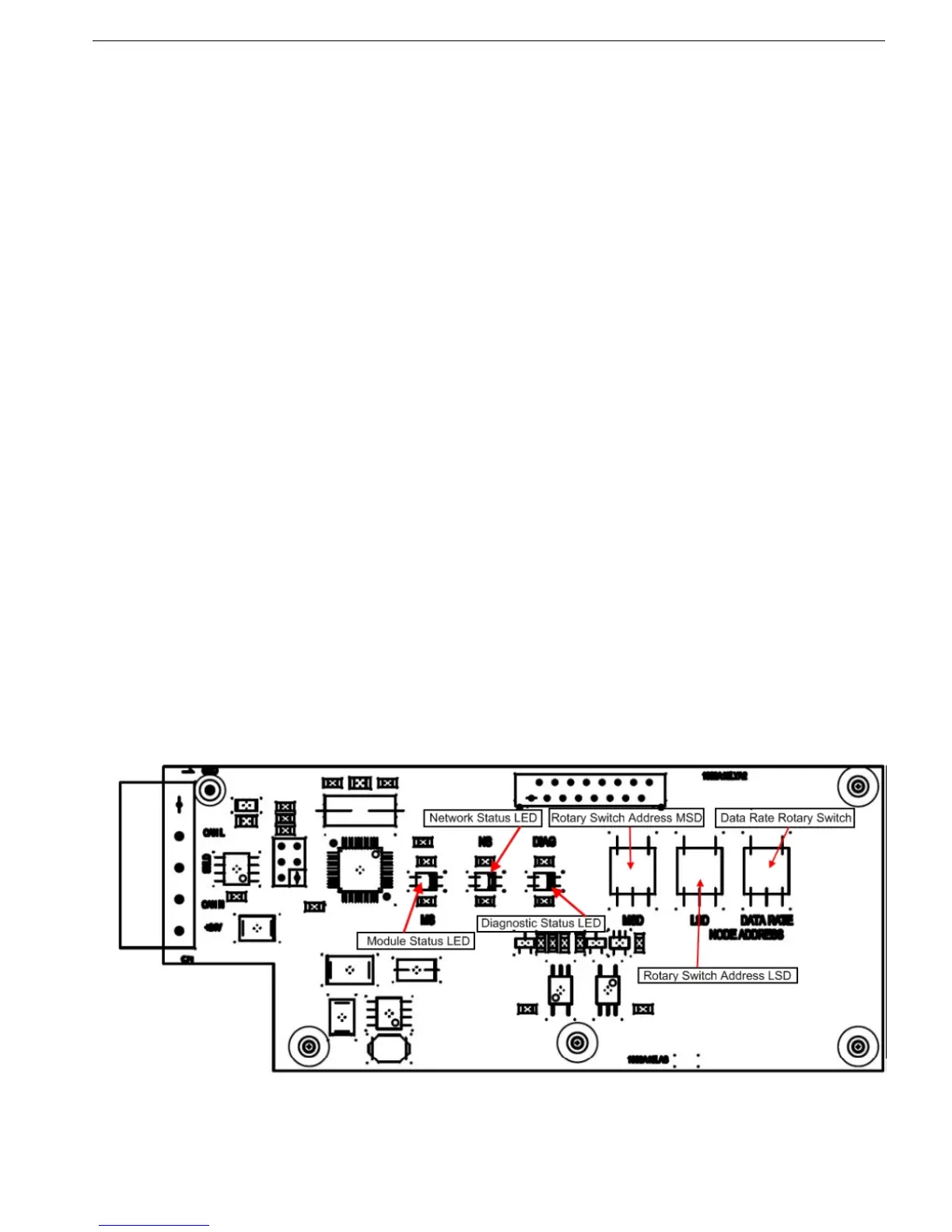

Figure 56 - MAC ID rotary switch layout
Use the NODE ADDRESS switches to select the DeviceNet MAC ID address. The valid range of addresses is
0 – 63. All combinations above 63 set the device address to the last address the device was powered up at
and allow software configuration tools to modify the MAC ID address.
