Solcon HRVS-DN series User Manual

31 • Recommended Wiring Diagrams
_______________________________________________________________________________________________

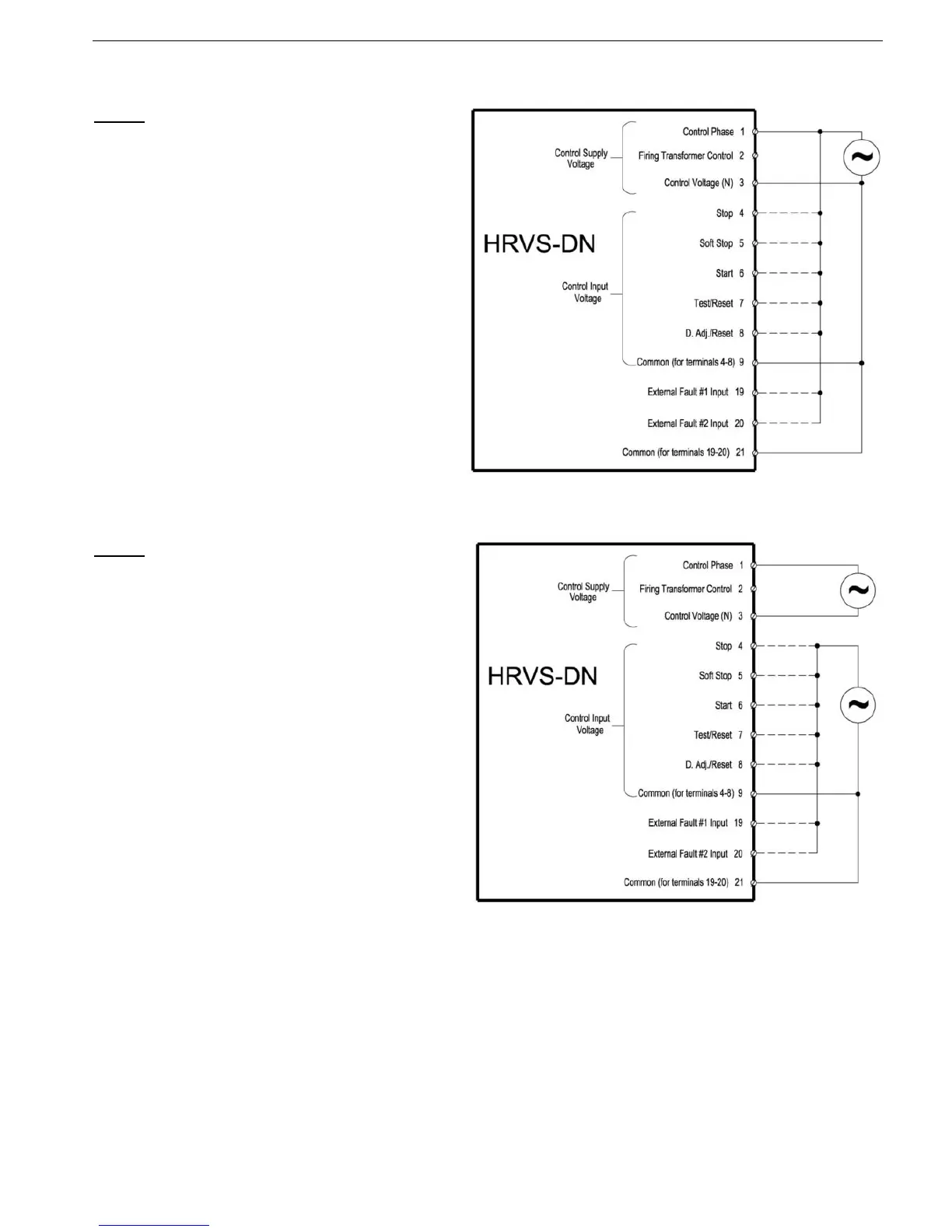

5. RECOMMENDED WIRING DIAGRAMS
5.1 Control Supply and Control Inputs From a Single Source
Notes:
 Use this diagram when Control Supply, Control
Input and Control Inputs for the External Faults
are all from the same source.
 If External Faults are not used leave terminals
19, 20 and 21 not connected.
 Supply must be protected from short circuit and
over load. 10A fuse must be used.
 It is recommended to use a separate fuse for
the auxiliary circuits.
5.2 Separate Sources for Control Supply and Control Inputs
Notes:
 Use this diagram when Control Supply and
Control Input are from separate sources.
 If External Faults are not used leave terminals
19, 20 and 21 not connected.
 Supply must be protected for short circuit and
over load. 10A fuse must be used.
 It is recommended to use a separate fuse for the
auxiliary circuits.
