32 • Recommended Wiring Diagrams
_____________________________________________________________________________________________

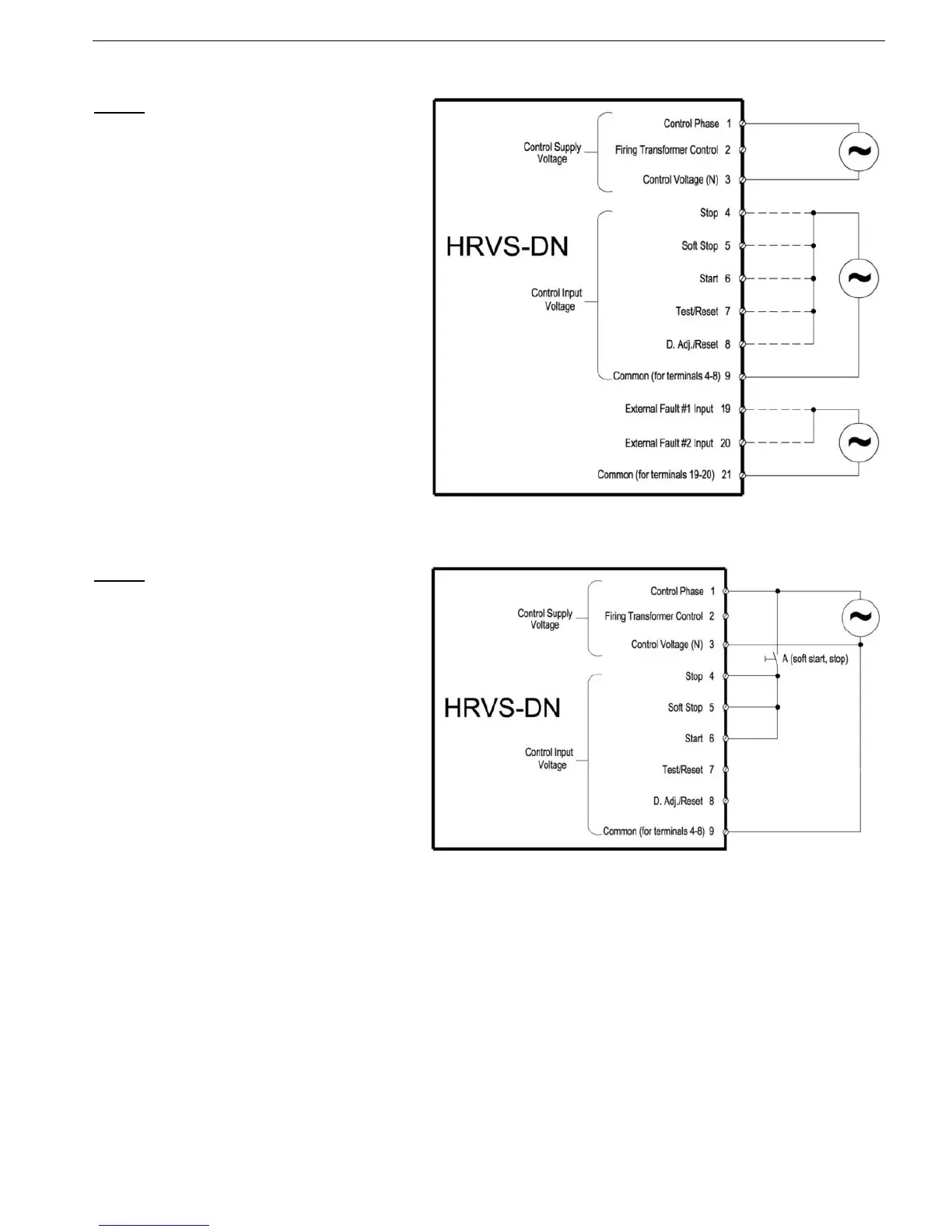

5.3 Three Separate Sources for Control Supply and Control Inputs
Notes:
Use this diagram when three separate
sources for:
o Control Supply
o Control Input
o Control Input for the External
Faults
Supply must be protected for short circuit
and over load. 10A fuse must be used.
It is recommended to use a separate fuse
for the auxiliary circuits.
5.4 Soft Start and Immediate Stop (No Soft Stop)
Notes:
When switch A closes the motor will soft
start.
When switch A opens the motor will stop
immediately (no soft stop).
Drawing shows Control Supply and
Control Input from the same source. Refer
to section
5.2 and 5.3 for Control Supply
and Control Input from separate sources.
To Next Page
