45 • Installation of IP00 (OEM Kit) in a Cabinet

_______________________________________________________________________________________________

6.7 Remote Key-Pad Installation

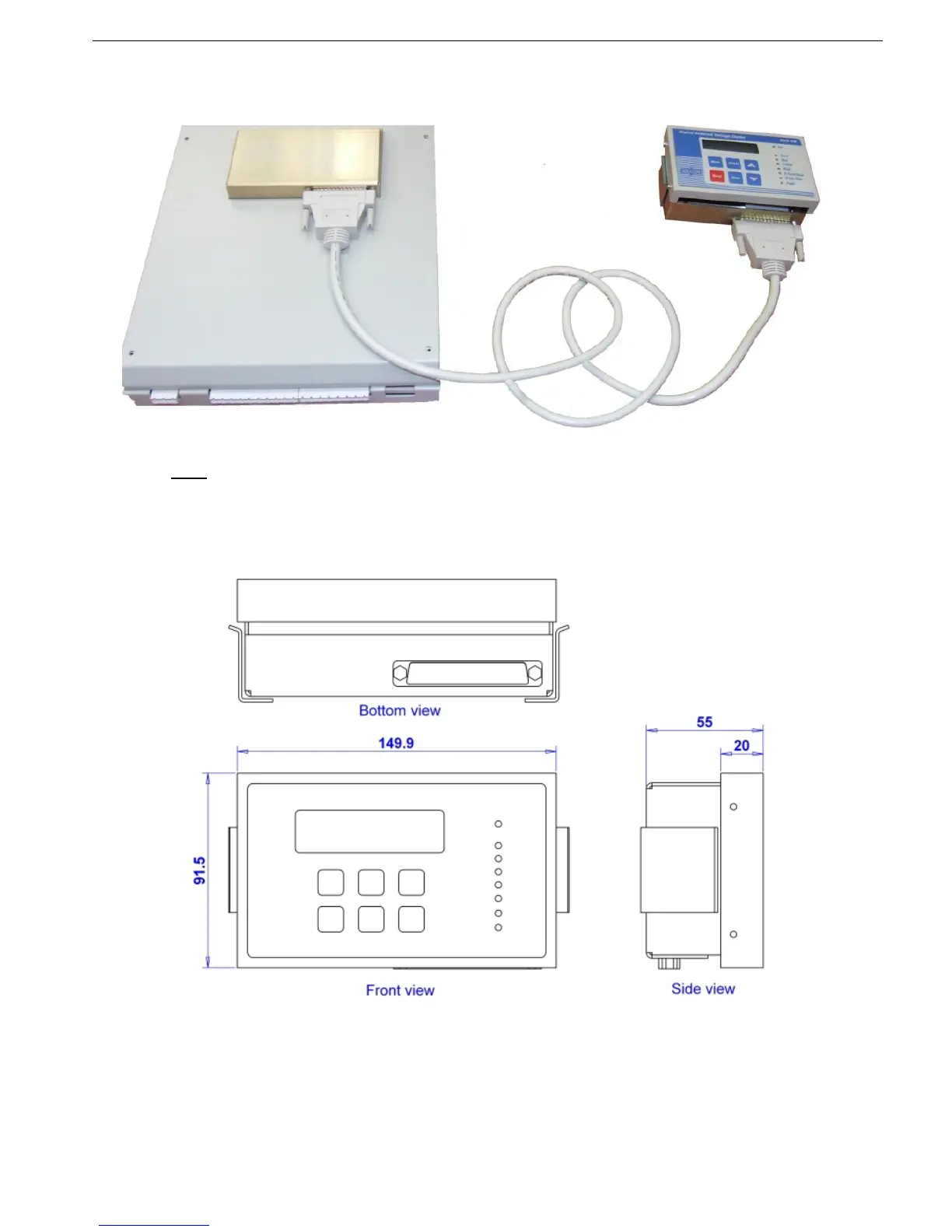

Figure 19 - Remote Key Pad, Connection Cable and Control Module.

Note: Cable length is 1.5 meters (consult with the factory if a longer cable is required).

Figure 20 - Remote Key Pad - Dimensions
