Solcon HRVS-DN series User Manual

33 • Recommended Wiring Diagrams
_______________________________________________________________________________________________

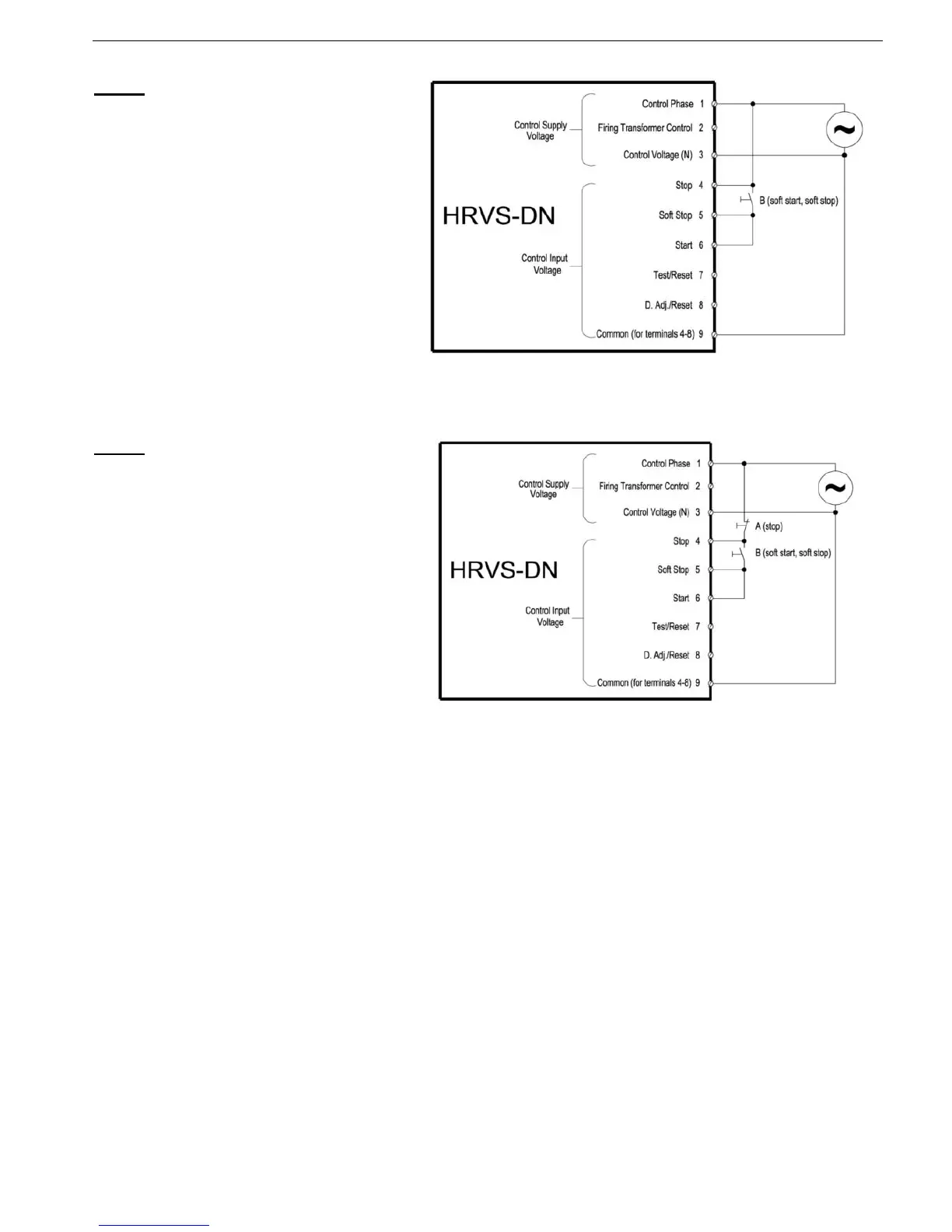

5.5 Soft Start and Soft Stop wiring
Notes:
 When switch B closes the motor will soft
start.
 When switch B opens the motor will soft
stop.
 Drawing shows Control Supply and
Control Input from the same source. Refer
to section
5.2 and 5.3 for Control Supply
and Control Input from separate sources.
5.6 Soft Start, Soft Stop and Immediate Stop Wiring
Notes:
 When switch B closes the motor will soft
start.
 When switch B opens the motor will soft
stop.
 Switch A opens the motor will stop
immediately.
 Drawing shows Control Supply and
Control Input from the same source. Refer
to section
5.2 and 5.3 for Control Supply
and Control Input from separate sources.
