153 • HRVS-DN Communication (Profibus protocol)

_______________________________________________________________________________________________

17.3.3.3 Reading of the DPV0 (Cyclic) Registers via Data Request (DPV1)

In the Data Request areas define the following:

 Slot Number = 1

 Index = 2

 Operation = Read

The registers in DPV0 will display in the Read Data (hex) field.

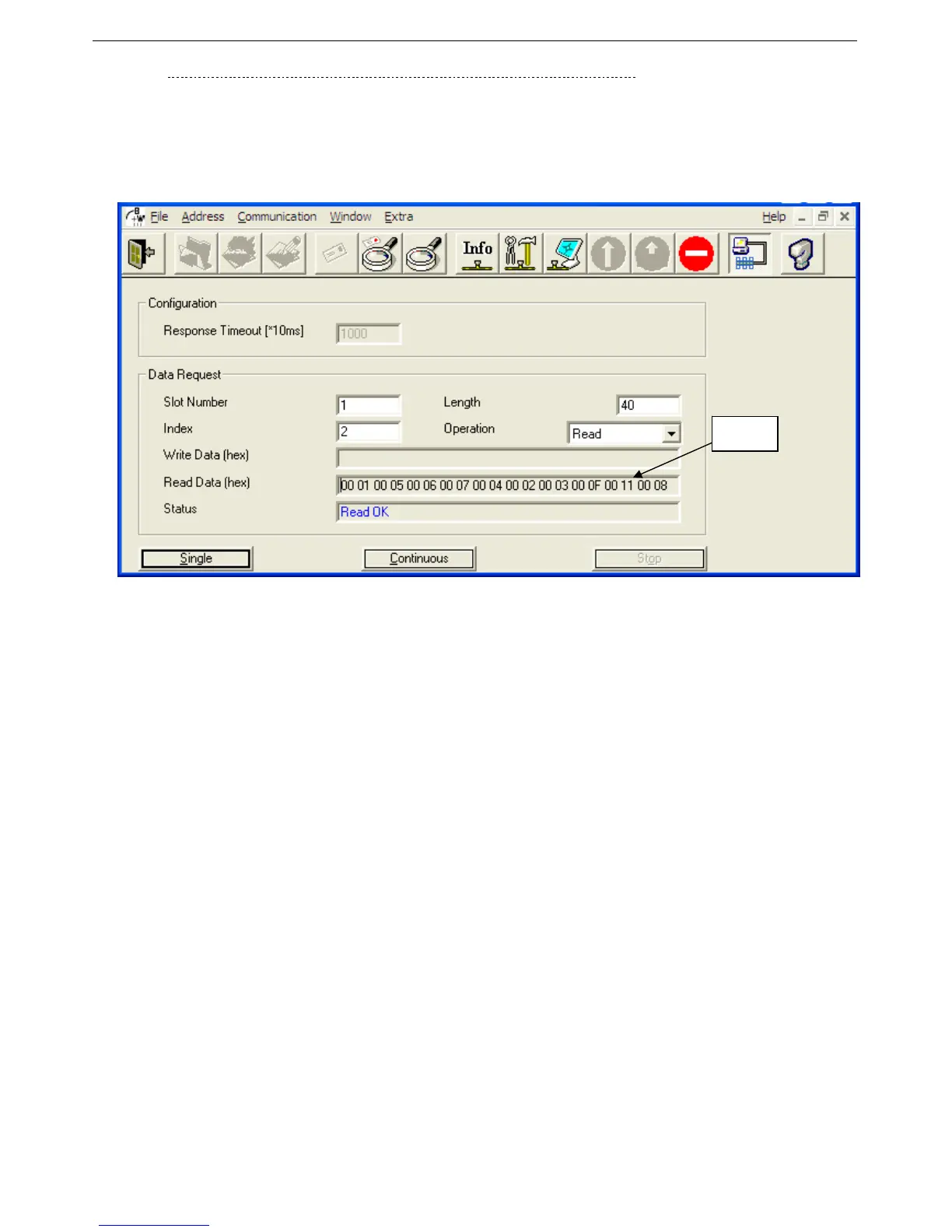

Figure 53 – Reading the register number that is shown in the DPV0 (cyclic) list

Read
