59 • Control Keypad
_______________________________________________________________________________________________

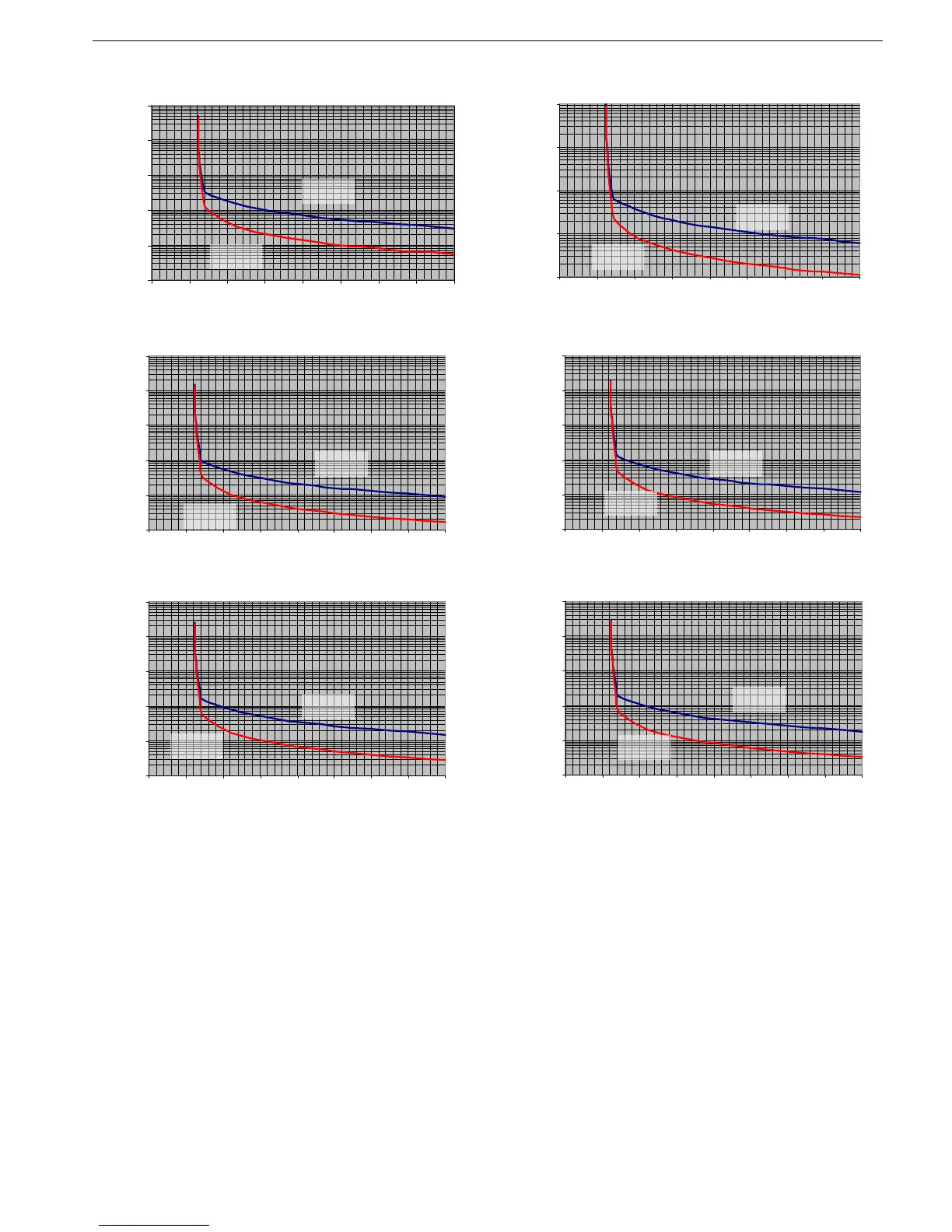

NEMA Class OVERLOAD curves
NEM A Clas s 5
0.1
1
10
100
1000
10000
012345678
Current [I/FLA]
Time [sec.]
NEMA Class 10
1
10
100
1000
10000
012345678
Current [I/FLA]
Time [sec.]
NEMA Class 15
1
10
100
1000
10000
100000
012345678
Current [I/FLA]
Time [sec.]
NEMA Clas s 20
1
10
100
1000
10000
100000
012345678
Current [I/FLA]
Time [sec.]
NEMA Class 25
1
10
100
1000
10000
100000
012345678
Current [I/FLA]
Time [sec.]
NEMA Class 30
1
10
100
1000
10000
100000
012345678
Current [I/FLA]
Time [sec.]
Cold
Hot
Cold
Hot
Cold
Hot
Cold
Hot
Cold
Hot
Cold
Hot
