DC5 User’s Manual
Basic Operation 2-8

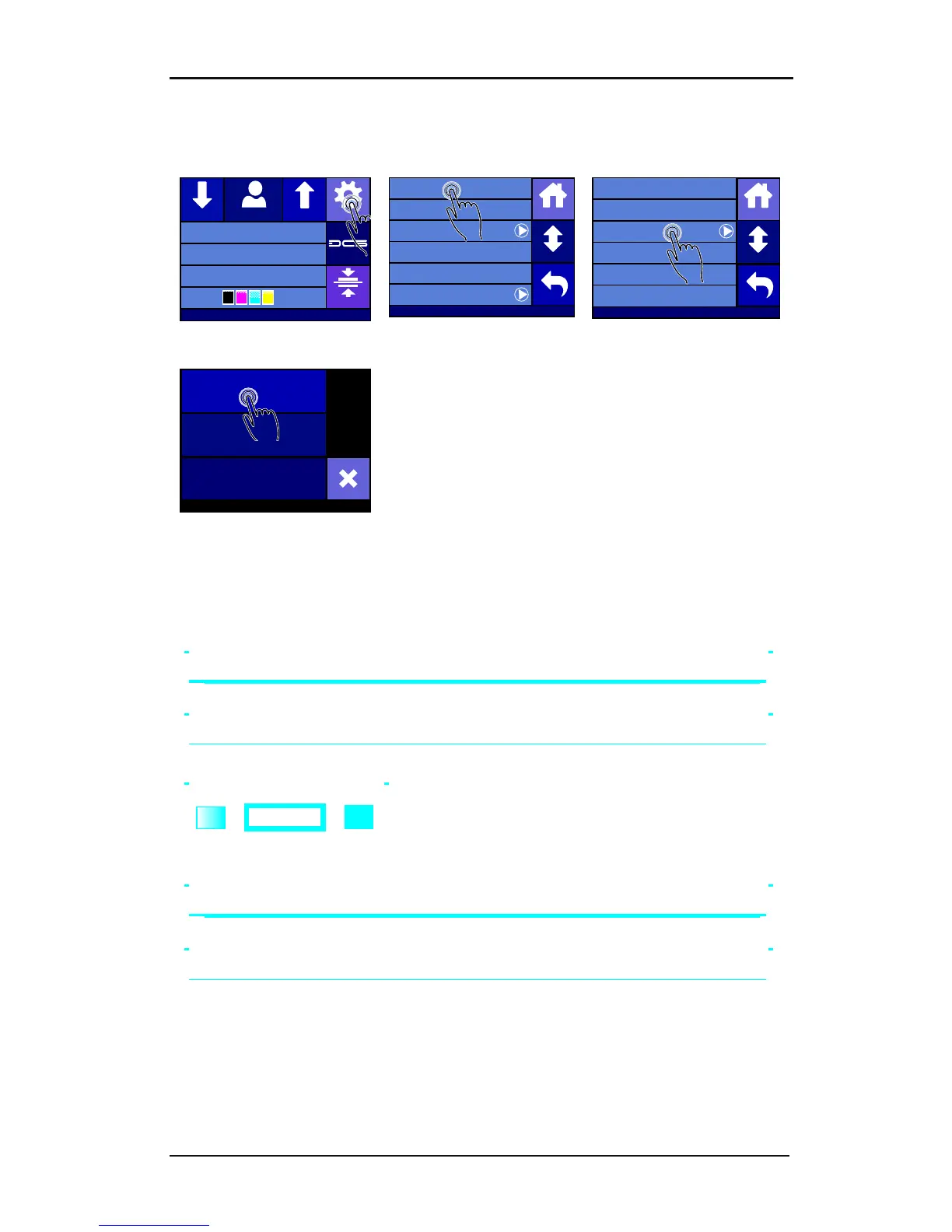

Line feed calibration
1. Power on the printer and load the media (see section 1.6.1).
2. Press Settings.
3. Press printer menu.
4. Press Calibrate Linefeed.
5. Press on recommended test.
A test pattern is printed and then cut out. The DC5(sx) calibrates the OptiTrac sensor and
completes the line feed test. The printed lines are measured and internal parameters are
adjusted automatically. If the DC5(sx) has to compensate too much, it will prompt the
operator to redo the test. A simple line feed calibration test will be sufficient in this case.
LINE FEED CALIBRATION TEST
XX inch
FIG 2-7
2-7 RECOMMENDED LINE FEED CALIBRATION TEST
LINE FEED CALIBRATION TEST
XX inch
FIG 2-8
2-8 SIMPLE LINE FEED CALIBRATION TEST
Summa USB port
Density 12000
Knife pressure 75gr
Media width 672mm
Clamp
Settings
Feed
Configuration 1
Feed
Settings
Shut down
Communication ...
System menu ...
Reprint job
Cutter menu ...
Printer menu ...
Back
Home
More
Settings | Printer menu
Op tiTr ac Automatic
OptiTrac color Cyan
Scratchguard Off
Calibrate Linefeed
Double Density Off
Density 12000
Back
Home
More
Cancel
RECOMENDED LINEFEED
SIMPLE LINE FEEDTEST
