DC5 User’s Manual
Software 6-24

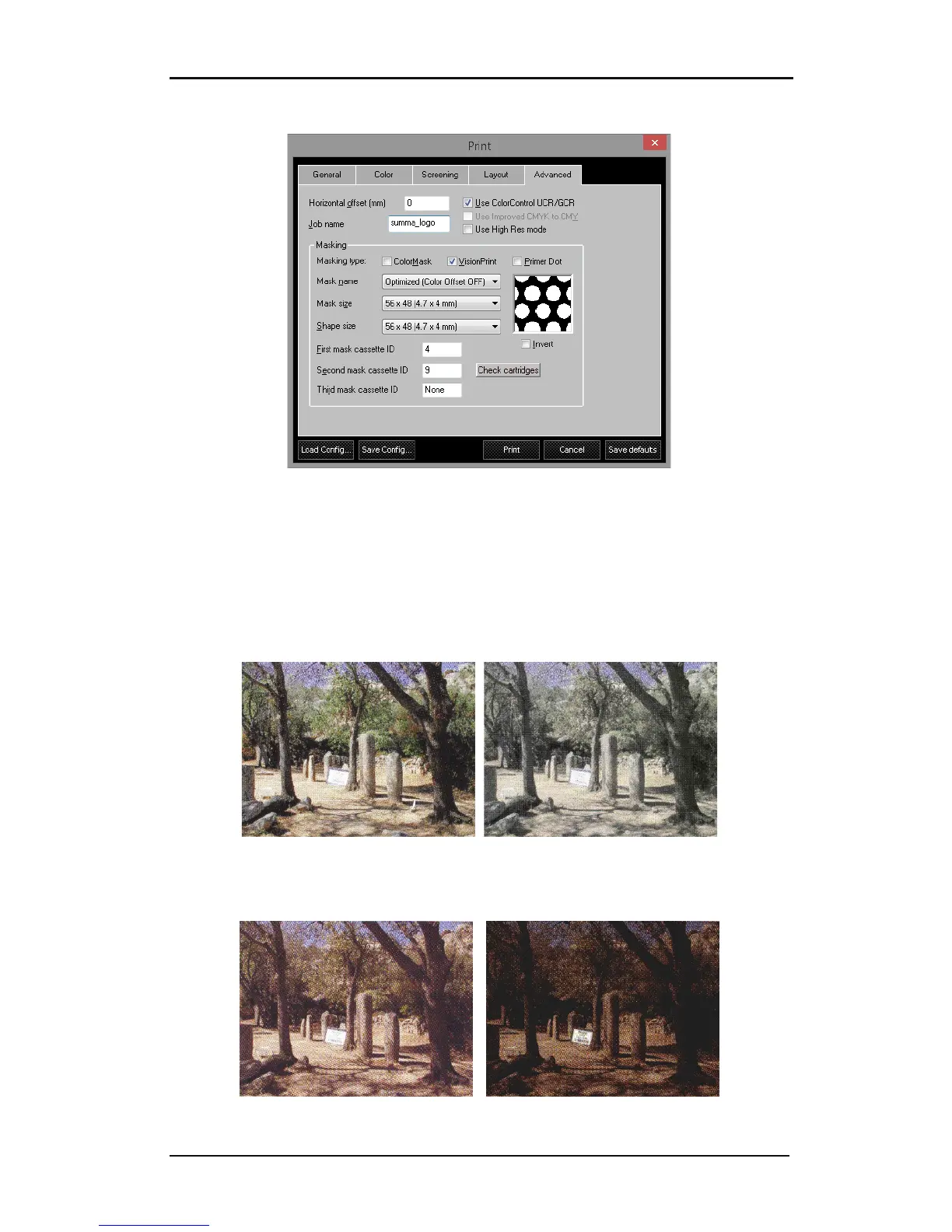

6.3.3.5 Advanced tab
FIG 6-25
6-25 ADVANCED TAB
1. Horizontal offset: specify the offset from the origin (left side) of a normal printout.
2. Job name (optional): specify the name the printer will use in the printer’s queue.
3. Use ColorControl UCR/GCR: a process that determines the amount of black ink used to
replace CMY in areas where those three inks overlap. (Under Color Removal and Grey
Component Replacement). It is highlighted only when working in 4-color mode. (See fig
below – only visible in color)
PRINTED NO UCR/GCR PRINTED WITH UCR/GCR
4. Use Improved CMYK to CMY: a choice between two different embedded color profile
tables. Used when CMY images appear too dark.
IMPROVED CMYK TO CMY NO IMPROVED CMYK TO CMY
