Summa S3 Series - Cleaning Nosepiece (Tangential)

S Class 3 User’s Manual
Maintenance 5-3
The nosepiece may accumulate residue from the vinyl that will result in poor cut quality.
The nosepiece needs to be cleaned if the cut line is interrupted every 12 mm (0.5”).
Cleaning the nosepiece:
1. Gently remove the knife by turning the knife holder counterclockwise (1).
2. Observe the orientation of the nosepiece and then push it out of its holder (2).

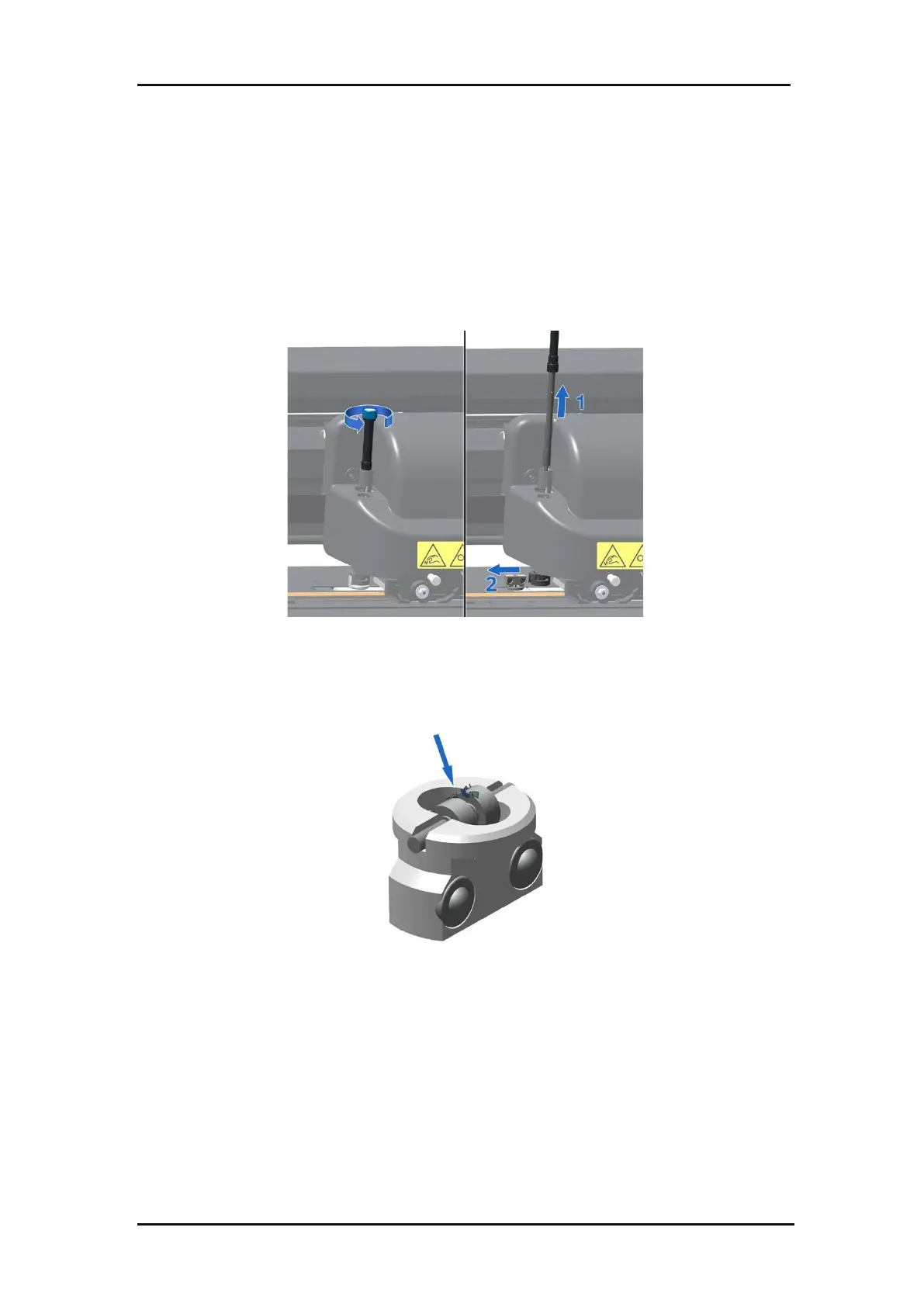

FIG 5-3
5-3 REMOVING THE TANGENTIAL KNIFE HOLDER
3. Remove any remaining vinyl residue using a brush or a pair of tweezers.
FIG 5-4
5-4 NOSE PIECE
4. Install the nosepiece.
5. Install the knife as described in section 1.6.2.1.
5.1.3 Cleaning the nosepiece (tangential machine only)
