If the separation knife (razor blade) is installed, you can automatically cut off the job after it is finished.
ATTENTION: This separation knife should only be used with standard vinyl (max.
0.25 mm thick).

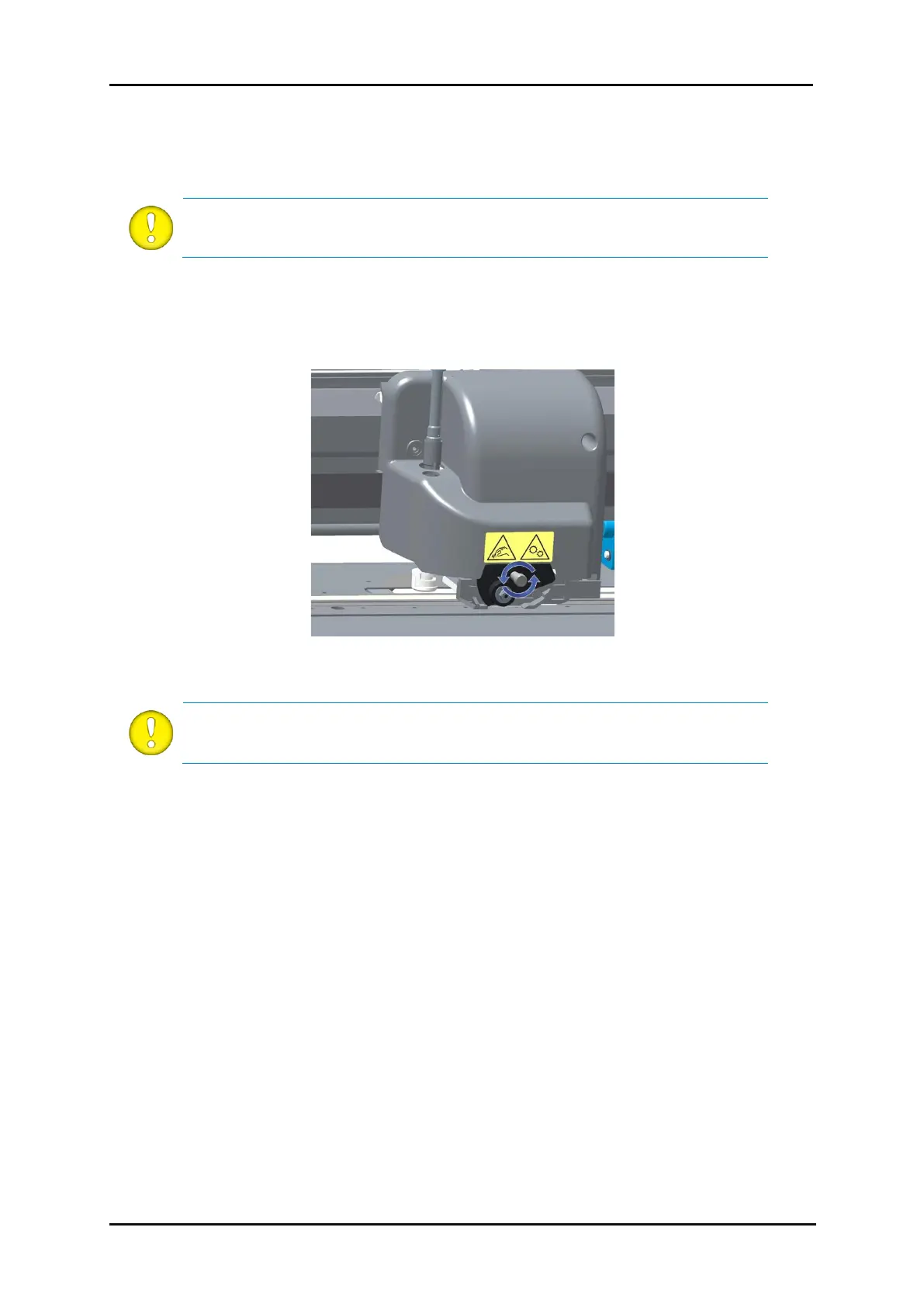

1. Remove the razor blade holder by turning the knurled screw at the bottom of the tool carriage.
2. The razor blade is kept in its place by a small magnet. Turn it around or replace it when it is worn
down; figure 1-b.
1-36
1-36 RAZOR BLADE FOR AUTOMATIC SEPARATION OF MEDIA
ATTENTION: The assembly is tilted under an angle of +/- 30° when it is remounted
on the machine. Mind the position of the assembly before replacing the razor blade.
1.6.4 Replacement of the separation knife blade
