S Class 3 User’s Manual
Detailed operation 4-5

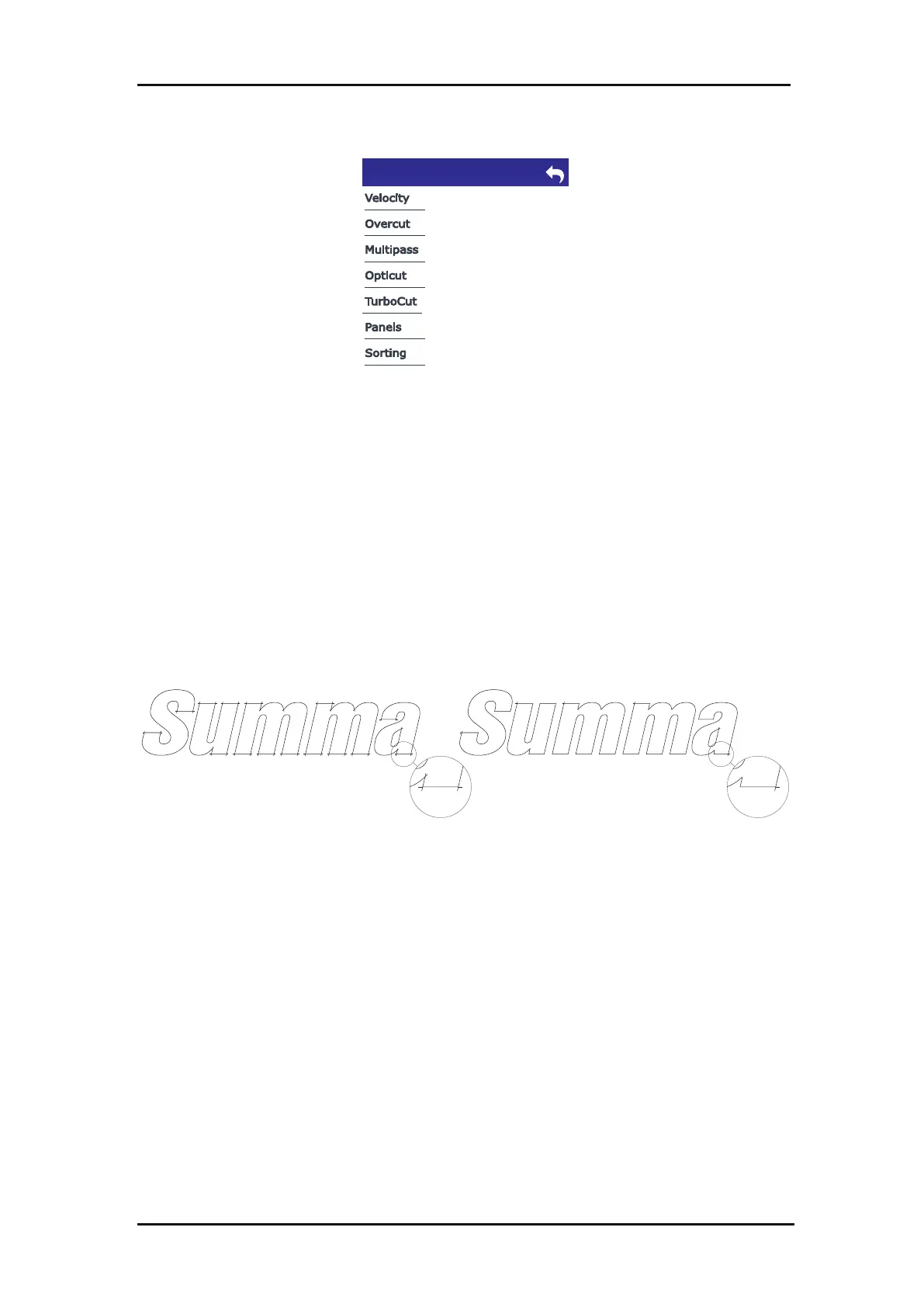

FIG 4-3
4-3 SETTINGS MENU
Velocity is the bundled parameter to change the speed of the tool/media. This parameter is
explained in section 2.4.
This submenu allows generating an overcut to make weeding easier. Each time the knife moves
up or down, the cutter first cuts a bit further. The overcut setting can be turned off (= 0) or
set to any value between 0 and 10. One unit is approximately 0.1 mm or 0.004 ". Section 2.3.3
explains how to change the overcut value.
FIG 4-4
4-4 OVERCUT
This submenu allows increasing the cutting quality in case the knife is worn out or not
calibrated correctly. This option is default set to Off.
4.4.3 Multipass
This function is interesting when using material that is thick and difficult to cut. This parameter
can be set to cut each vector multiple times.
