S Class 3 User’s Manual
Setup 1-23
ATTENTION: If the flanges are not used (not recommended as this does not ensure
that the material will be fed through accurately), make sure the roller is between
the two flange guides.

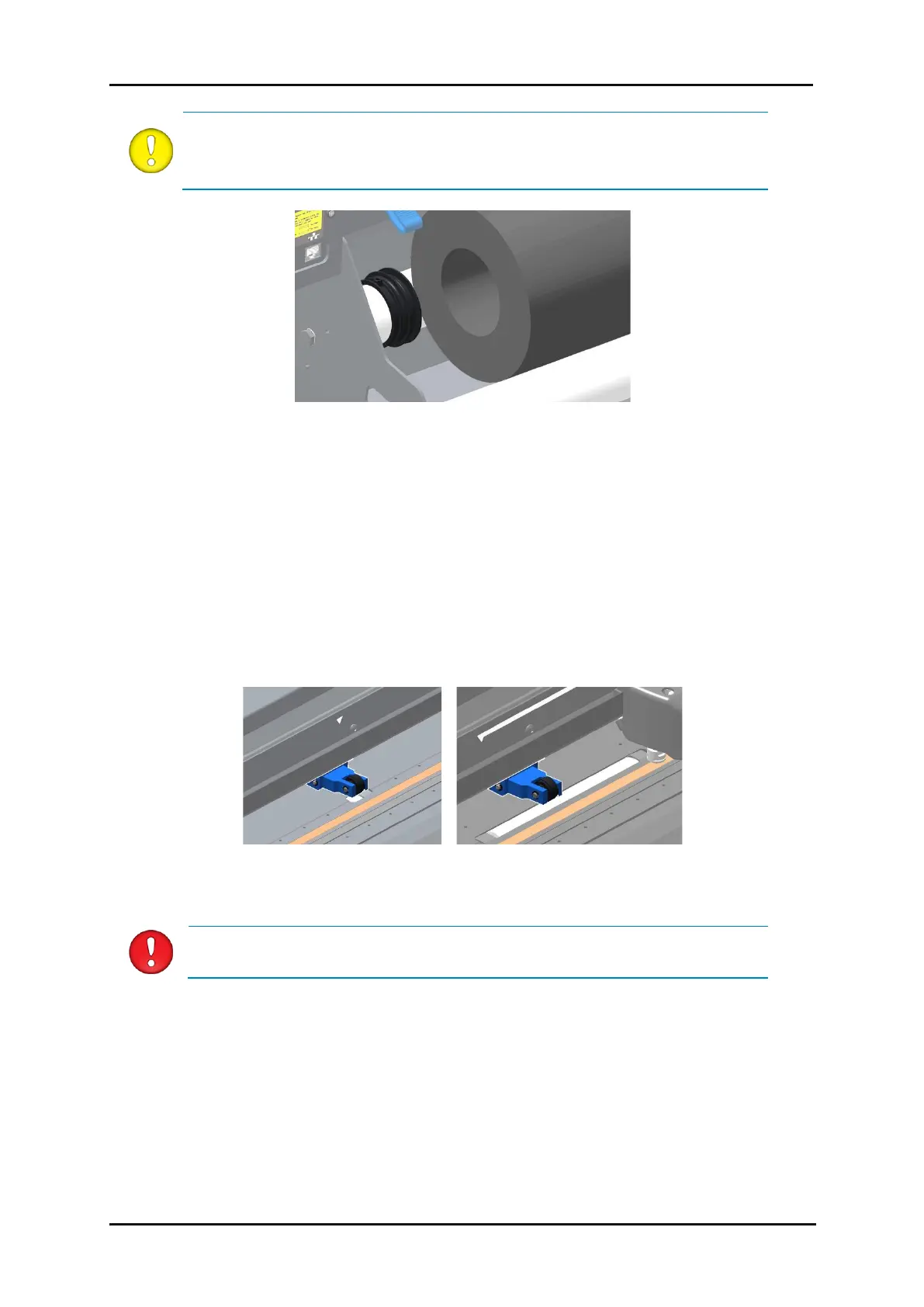

FIG 1-15
1-15 FEEDING ROLL MEDIA WITHOUT USING THE CORE HOLDERS
5. Start feeding the media from the rear of the machine. Pass the media underneath the pinch rollers
towards the front of the machine.
6. Place the material with the left material edge on the far-left grit roller and make sure the right
material edge lies over the long grit roller.
7. Position the left and right pinch rollers above the grit rollers in a click position, each about 3 to
15 mm (0.1” to 0.6”) from the outer edges of the material. The right pinch roller should be clicked
above the longest grit roller.
FIG 1-16
1-16 PINCH ROLLERS POSITION
ATTENTION: When sliding the pinch rollers, hold them by their sides along the
front (not the back) of the cutter.
