WARNING: The S Class 3 cutters use razor-sharp knives. To avoid serious injury,
be careful when installing, removing, or handling the knife!
A knife is pre-installed in the cutter. For safety reasons, the knife depth has been set to zero. Turn out
the knife before cutting. Please find the complete description of the knife removal and knife installation
below.
➢ Removing the drag knife
1. Loosen the head clamp screw and remove the knife holder from the clamp.

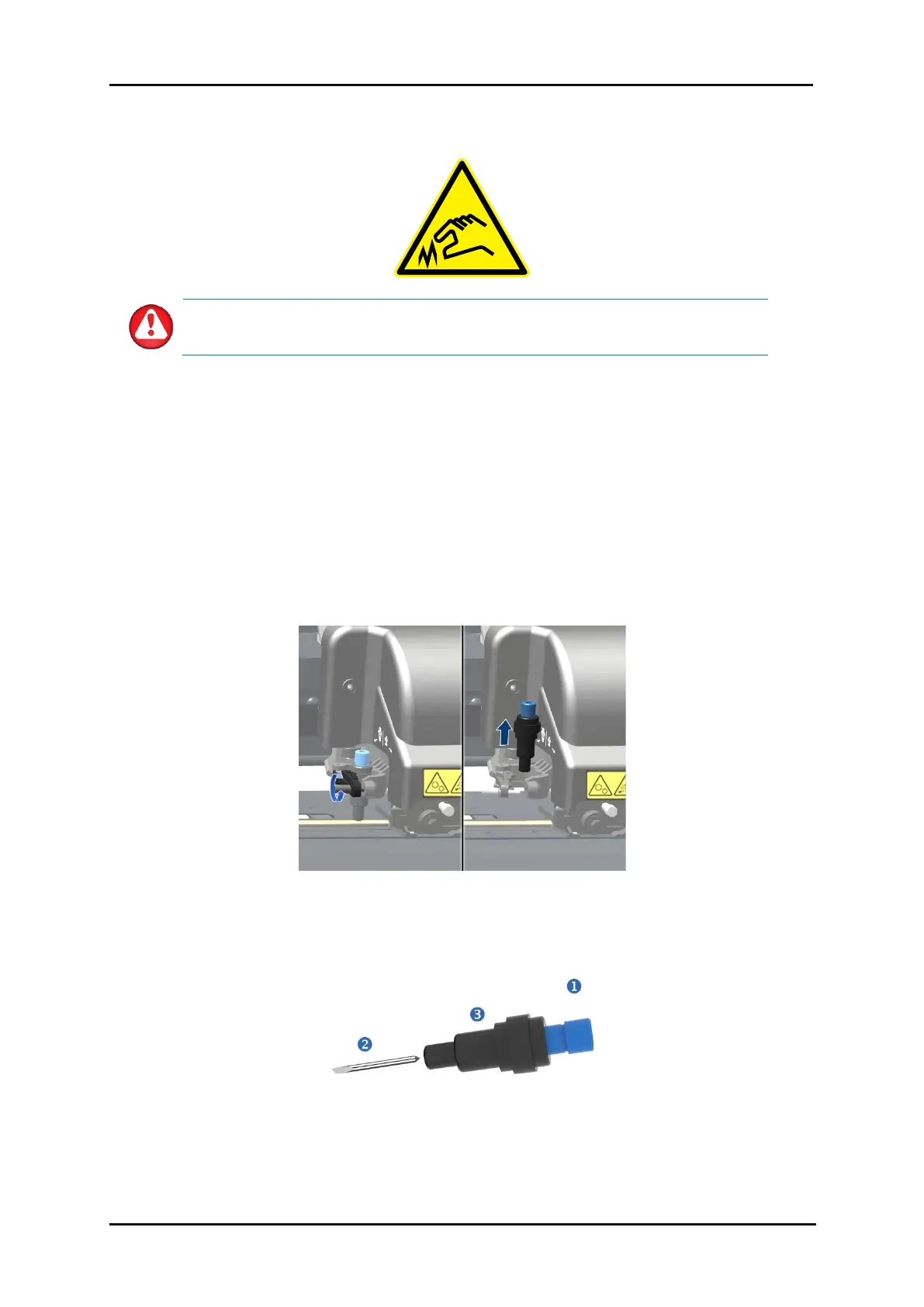

FIG 1-19
1-19 REMOVING THE DRAG KNIFE HOLDER FROM THE CLAMP
2. Turn the knurled adjustment knob clockwise to push the knife out of the holder .
FIG 1-20
1-20 REMOVING THE KNIFE FROM THE STANDARD DRAG KNIFE HOLDER
3. Carefully pull the knife from the holder.
