Summa S3 Series - Graphic Printing for OPOS

S Class 3 User’s Manual
OPOS 3-2
Print the graphic and its marks with a printer. Make sure there is a 2 cm (0.8 in) margin at the
sides and the front, and at least a 4 cm (1.6 in) margin at the end of a roll or sheet. For shorter
jobs the edge margins can be smaller, but they must be at least 1 cm (0.4 in).

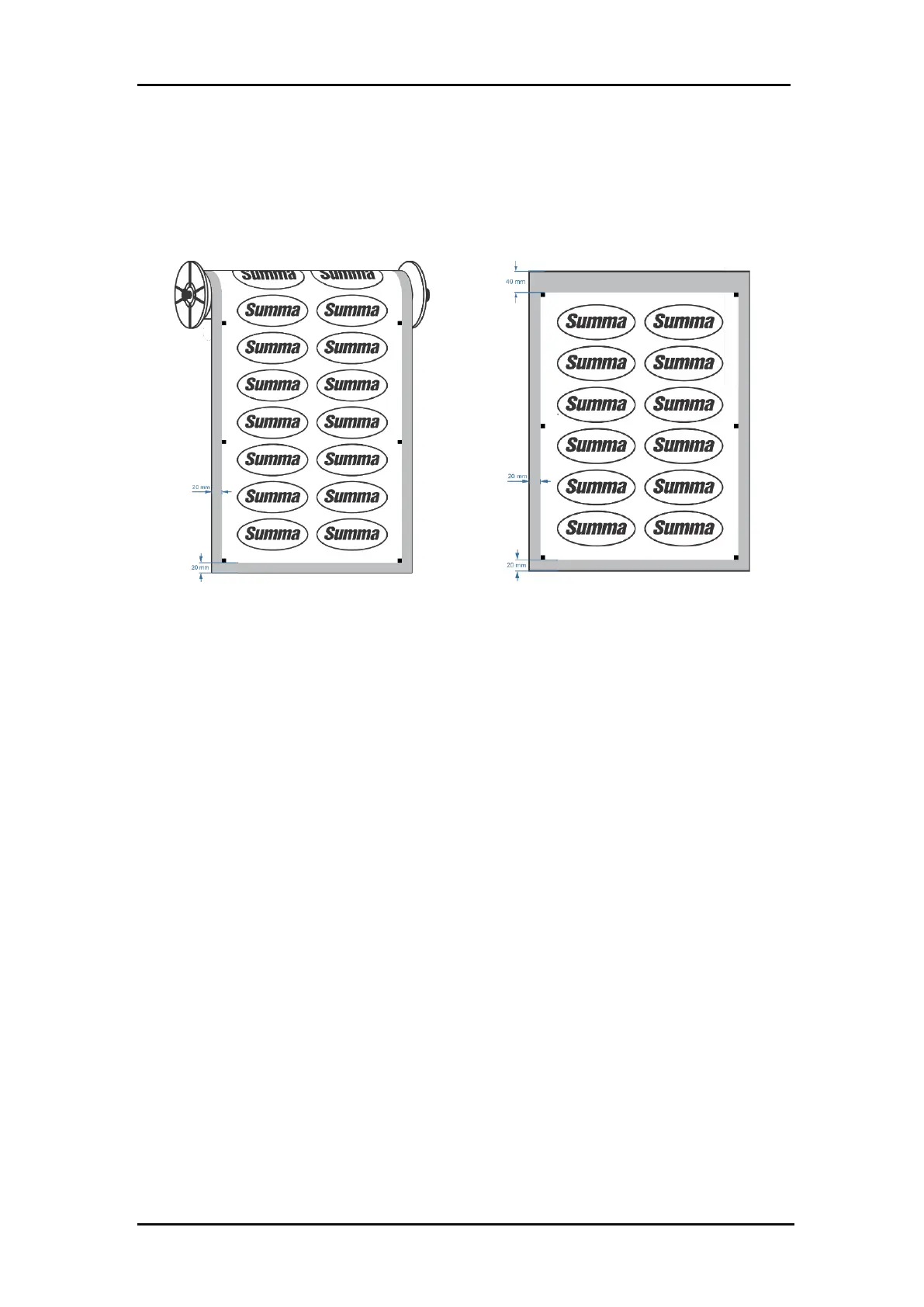

FIG 3-1
3-1 MARGINS PRINTING ON A ROLL
FIG 3-2
3-2 MARGINS PRINTING ON A SHEET
3.2.1 Printing the graphic
