S Class 3 User’s Manual
Basic operation 2-7
The purpose of the knife calibration routine is to detect and, if necessary, correct problems related
to the concentricity of the tangential knife blade.
NOTE: The knife must be calibrated every time it is replaced, and the calibration
must be checked again when the blade shows signs of wear.
During knife calibration, the cutter cuts a series of test patterns for the user to allow identifying errors
in the knife rotation and concentricity.
1. Power on the cutter, load the media (see section 1.5) and install the tangential knife (see section
1.6.2.1.).
4. Tap the parameter that
needs to be changed.
First set the origin, then
the other parameters.
5. Use the arrow keys or the numbers to change the value.
NOTE: Failing to set the knife parameters correctly will result in poor cut quality.
Configuration 1
LAN 192.168.10.2

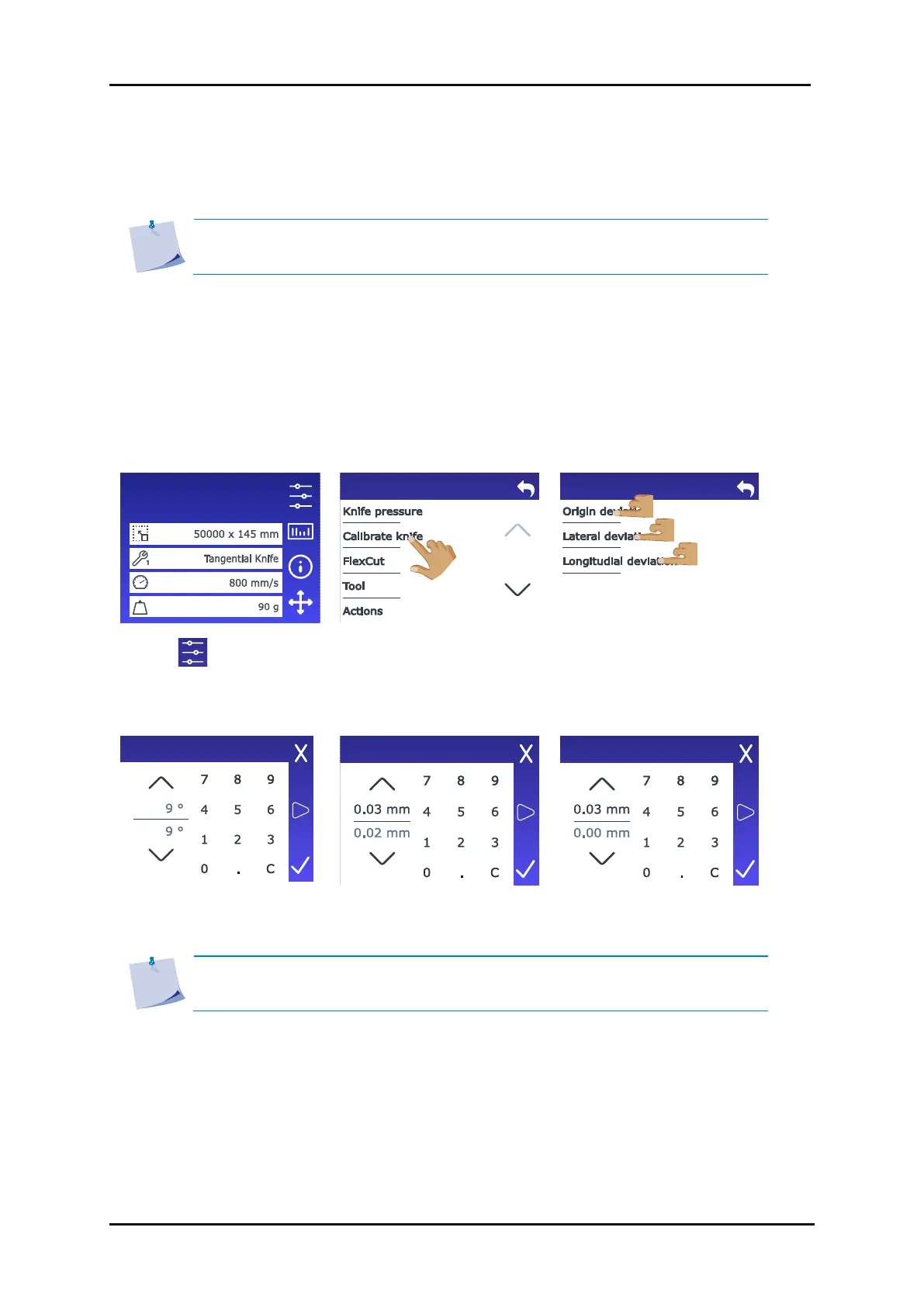

2.3.4 Calibrating a tangential knife
To Next Page
