S Class 3 User’s Manual

Setup 1-14

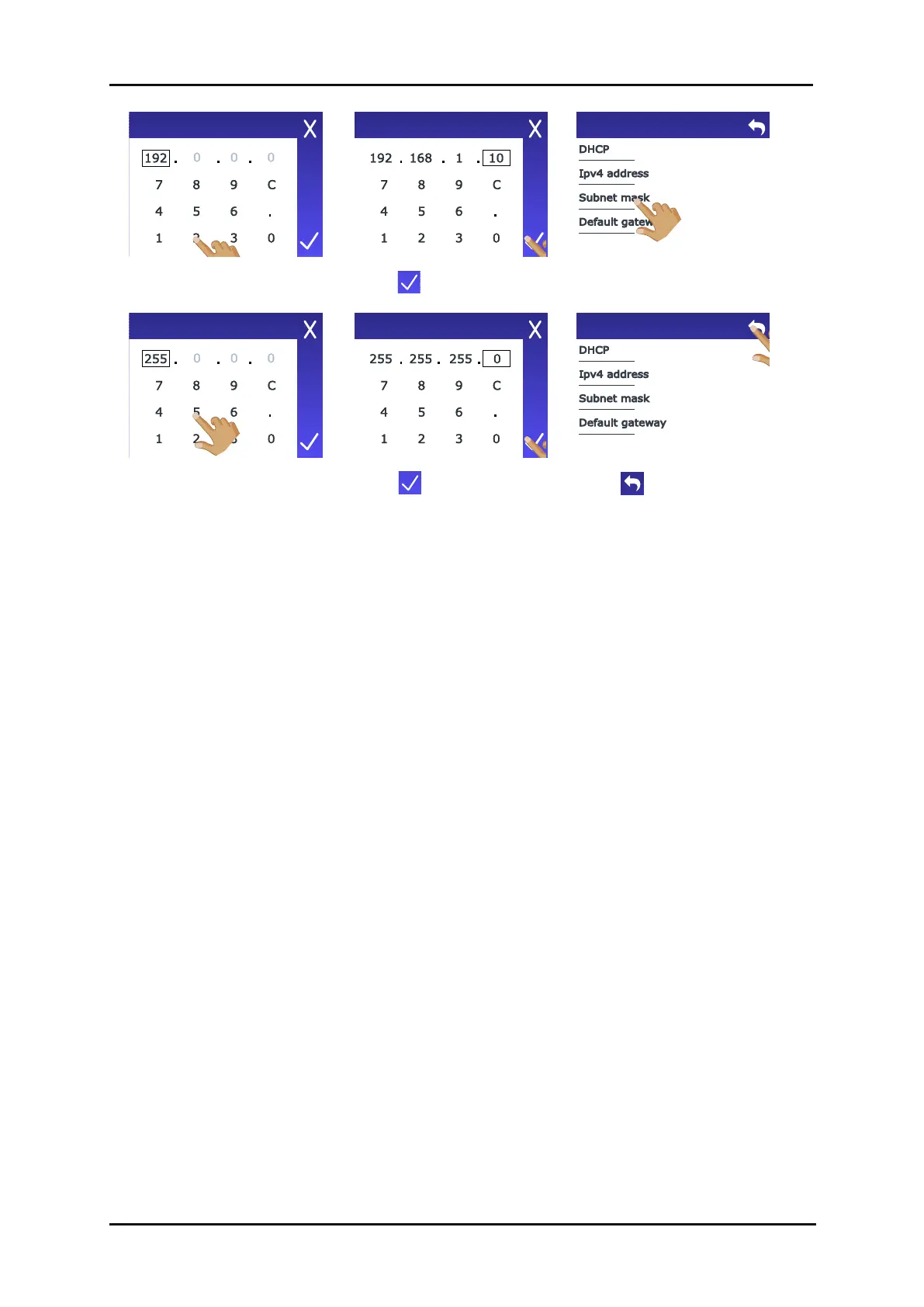

9. Set the address correctly.

10. Tap to confirm.

11. Tap Subnet mask.

12. Set the address correctly.

13. Tap to confirm.

14. Tap to leave.

15. Reboot the cutter.

Ipv4 address

Ethernet

Subnet mask

Ethernet
