S Class 3 User’s Manual
Basic operation 2-10
Origin correction
If the clear cut line in test pattern 3 is located too much to the right, increase the value of the
origin. It sometimes helps to gently feel the pattern to find out which side has the clear cut line.
If the clear cut line in test pattern 3 is located too much to the left, decrease the value of the origin.
Lateral correction

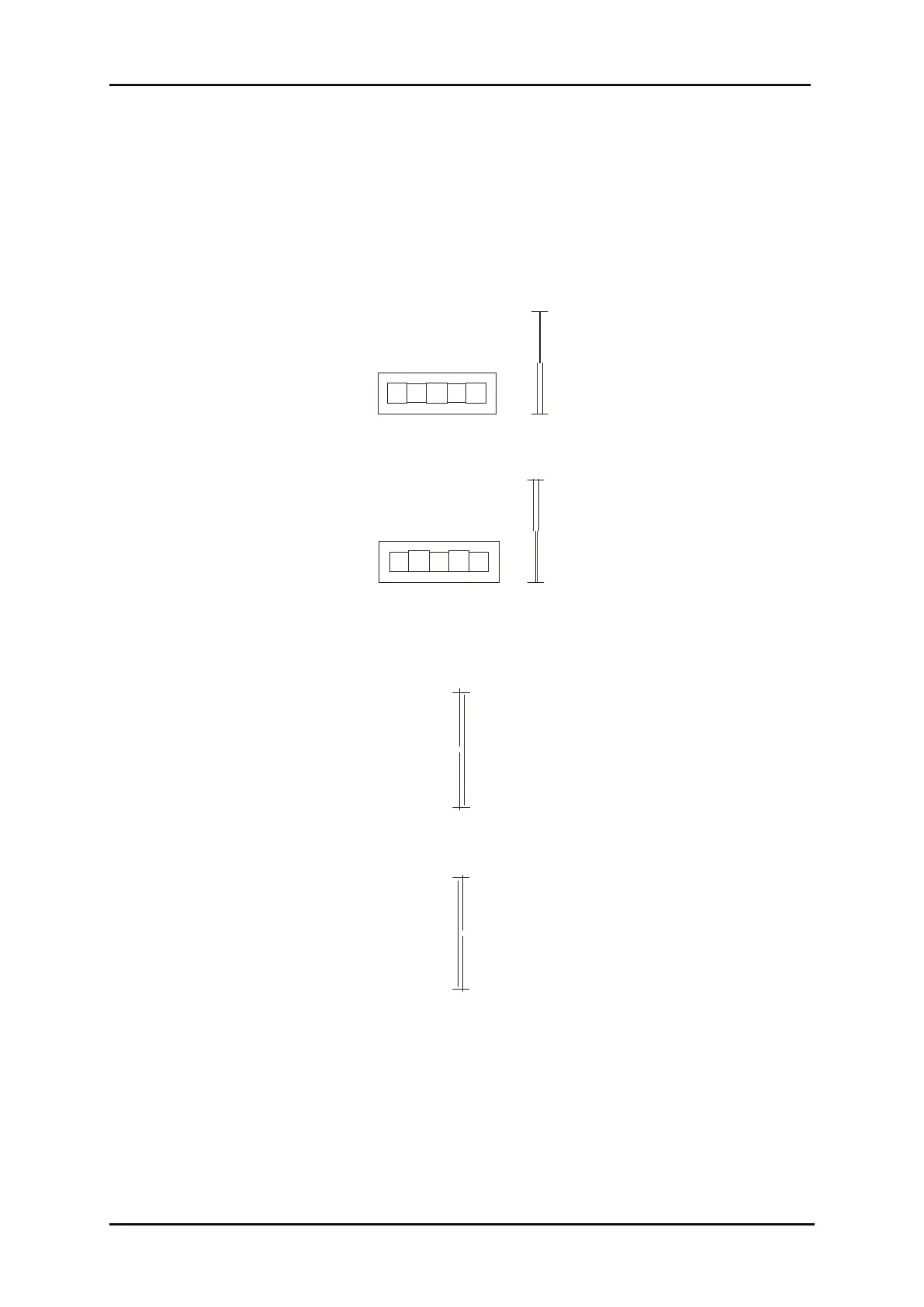

Weed out (remove) the rectangle in pattern 1 and in pattern 4. If the test pattern resembles the
pattern below, decrease the value of the lateral parameter to correct the closing cut lines.
If the test pattern resembles the pattern below, increase the value of the lateral parameter to
correct the closing cut lines.
Longitudinal correction
Weed (remove) out the rectangle. If the test pattern resembles the pattern below, decrease the
value of the longitudinal parameter to correct the closing cut lines.
If the test pattern resembles the pattern below, increase the value of the longitudinal parameter
to correct the closing cut lines.
