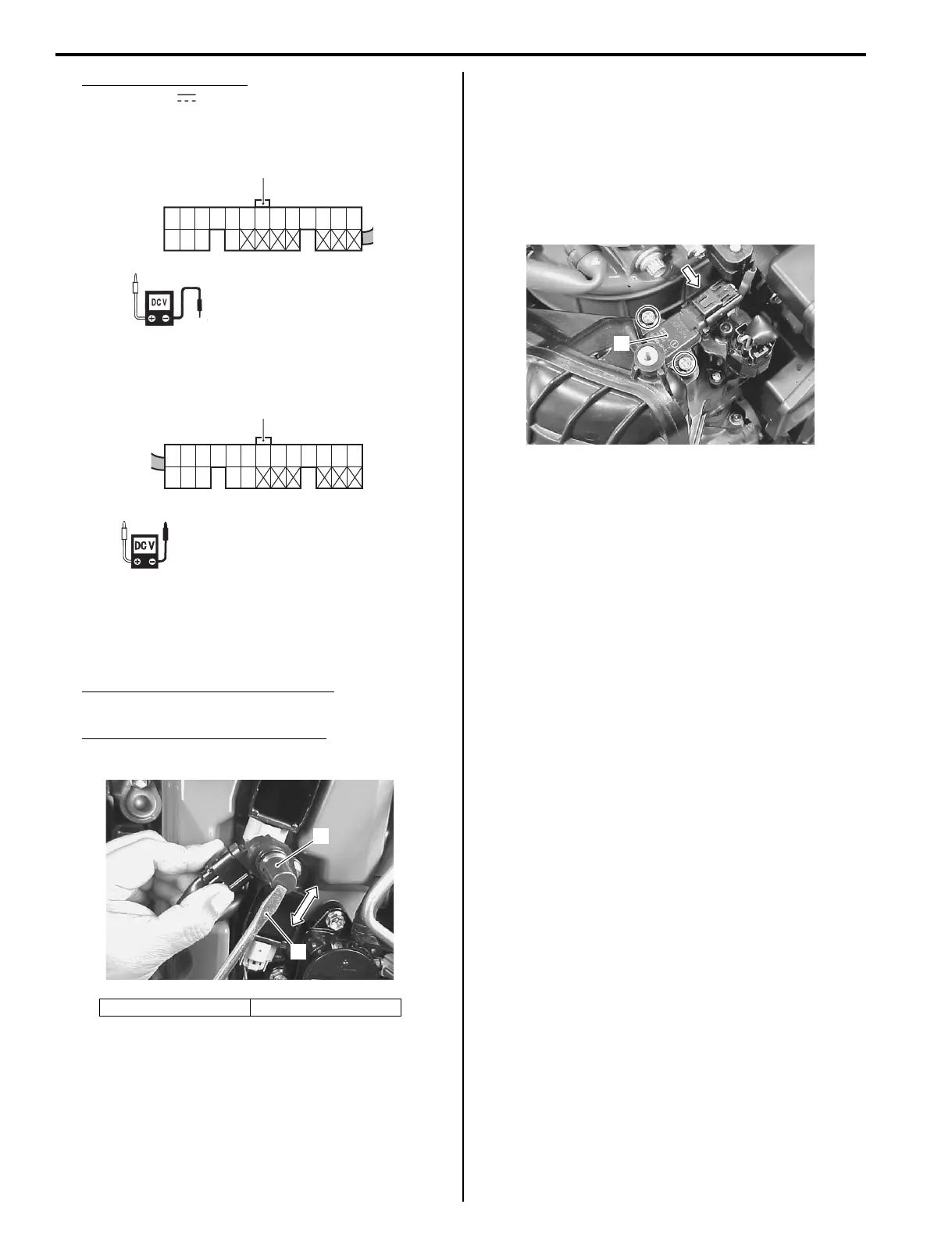

1C-12 Engine Electrical Devices:
Tester knob indication
DC Voltage ( )
36-pin test cord (White connector)
36-pin test cord (Black connector)
6) Turn Ignition switch ON.
7) Measure the voltage when the tip of a steel
screwdriver is brought near and then pulled away
from the sensor tip.
When screwdriver is brought near
Approx. 5.0 V
When screwdriver is pulled away
Approx. 0.3 V
8) If the voltage does not change in the above test,
check wire harnesses for open and short.
If wire harnesses are in good condition, replace CMP
sensor and recheck.
9) Reinstall CMP sensor.
MAP Sensor Removal and Installation
Z9J0111306012
Removal
1) Remove the flywheel.
Refer to “Flywheel Removal and Installation” in
Section 1K (Page 1K-5).
2) Disconnect lead wire connector at MAP sensor.
3) Remove the two screws and MAP sensor (1).
Installation
Installation is reverse order of removal.
• Install MAP sensor, then tighten mounting screw
securely.
• Connect sensor lead wire connector to MAP sensor.
• Install flywheel and tighten flywheel bolts to specified
torque.
Refer to “Flywheel Removal and Installation” in
Section 1K (Page 1K-5).
Tightening torque
Flywheel bolt: 196 N·m (19.7 kgf-m, 142 lbf-ft)
4. Screw driver 5. CMP sensor
40
2
I9J011130011-03
25
3
I9J011130012-02
4
5
I9J011130013-03
1
I9J011130047-01
