Suzuki DF70A - Clamp; Swivel; Steering Brackets Assembly

2A-20 Housing and Bracket:

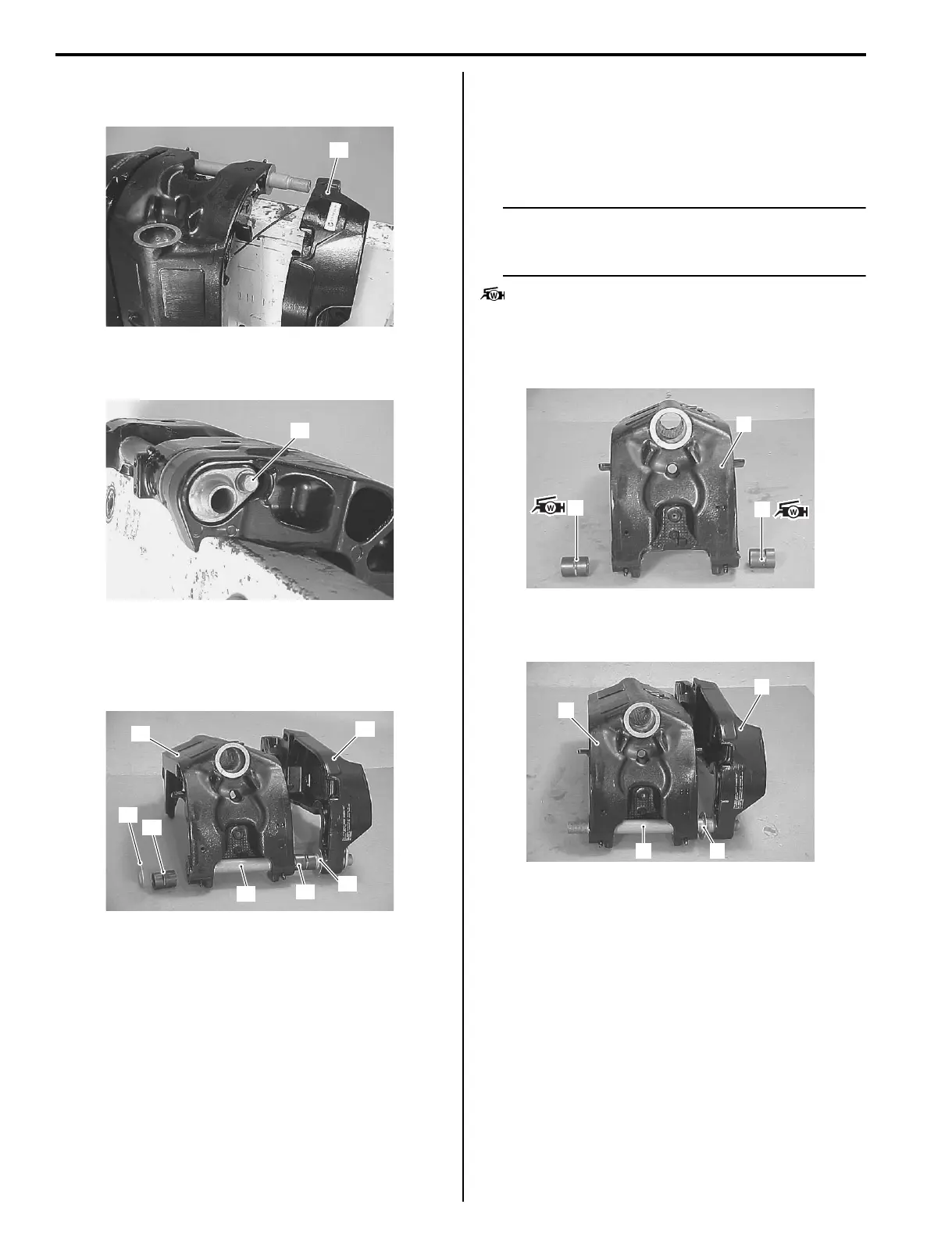

16) Slide STBD clamp bracket (25) off clamp bracket
shaft.
17) Remove the bolt (26) securing clamp bracket shaft to
PORT clamp bracket.
18) Pull PORT clamp bracket (27) outward to remove
clamp bracket and bracket shaft (28) from swivel
bracket (29). Remove washer (30) and bushing (31)
from each side of swivel bracket.
Clamp / Swivel / Steering Brackets Assembly
Z9J0112106012
Assembly is reverse order of disassembly with special
attention to the following steps.
Clamp Bracket / Swivel Bracket
NOTE
Before installing clamp bracket to swivel
bracket, apply grease to clamp bracket shaft
and bushings.
: Grease 99000–25161 (SUZUKI Water Resistant
Grease (250 g))
• Insert PORT and STBD bushings (2) into the swivel
bracket (1).
• Assemble port clamp bracket (3), washer (4), clamp
bracket shaft (5) and swivel bracket (1).
25
I9J011210096-02
26
I9J011210097-02
29
30
31
28
31
30
27
I9J011210098-02
2
2
1
I9J011210099-01
1
3
5 4
I9J011210100-01
