Suzuki DF70A - Page 261

Housing and Bracket: 2A-19

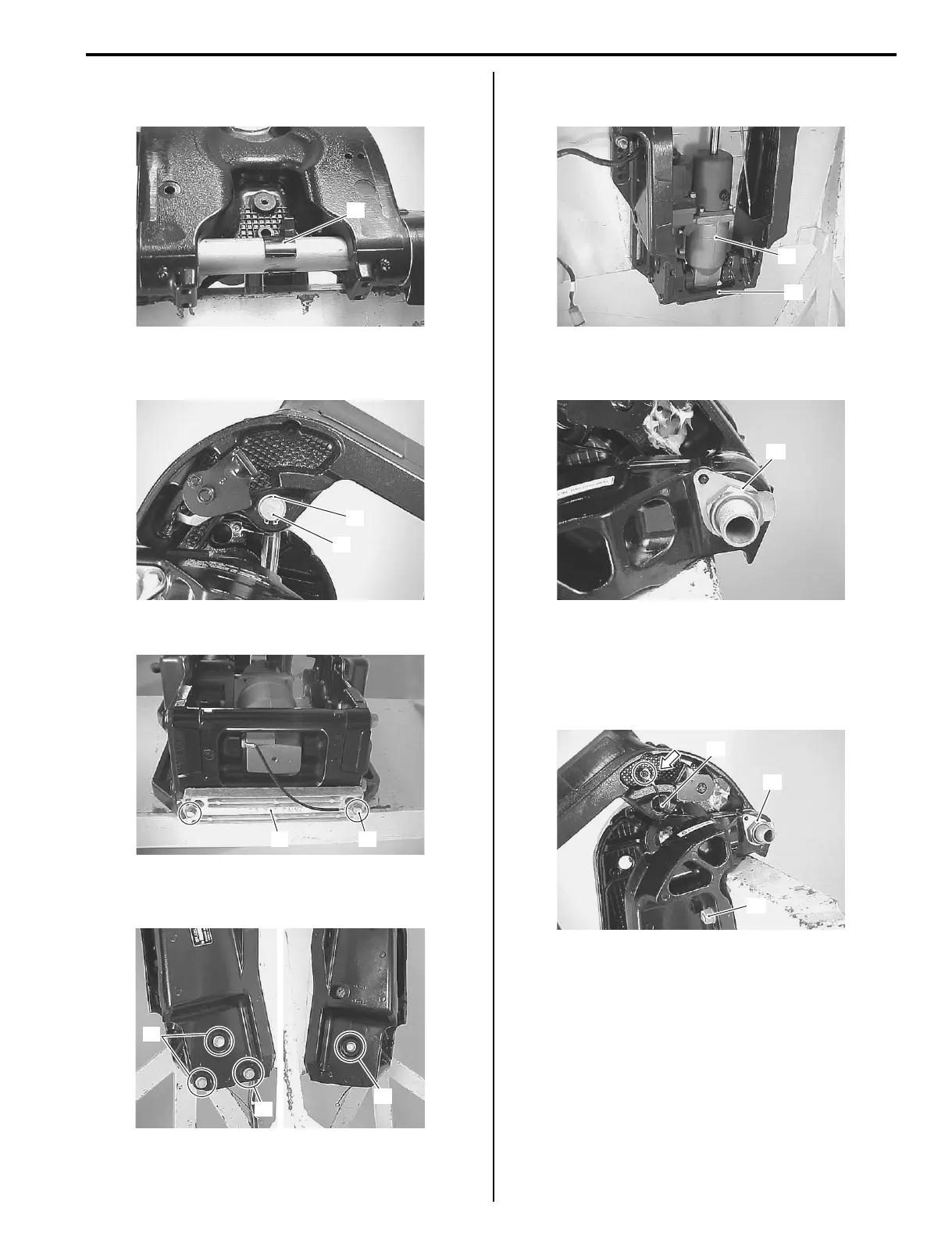

9) Remove the upper trim sensor cam (13) from clamp
bracket shaft.
10) Remove circlip (14) and push out tilt cylinder upper
rod (15).
11) Remove bolts (16) and anode (17).
12) Remove the four bolts (18) securing lower clamp
bracket to STBD and PORT clamp brackets.
13) Remove the PTT unit (19) and lower clamp bracket
(20) from between the clamp brackets.
14) Using flat blade screw driver, drive locking edge of
lock washer (21) to clamp bracket side.
15) Remove the two STBD motor mounting bolts (22).
Remove the clamp bracket shaft nut (23) and
washer.
Remove the screw and bonding wire (24) from
swivel bracket.
13
I9J011210089-01
14
15
I9J011210090-01
1617
I9J011210091-01
18
18
18
I9J011210092-02
19
20
I9J011210093-01
21
I9J011210094-01
24
23
22
I9J011210095-02
