Suzuki DF70A - Service Instructions; Charging System Construction

Charging System: 1K-4
Service Instructions

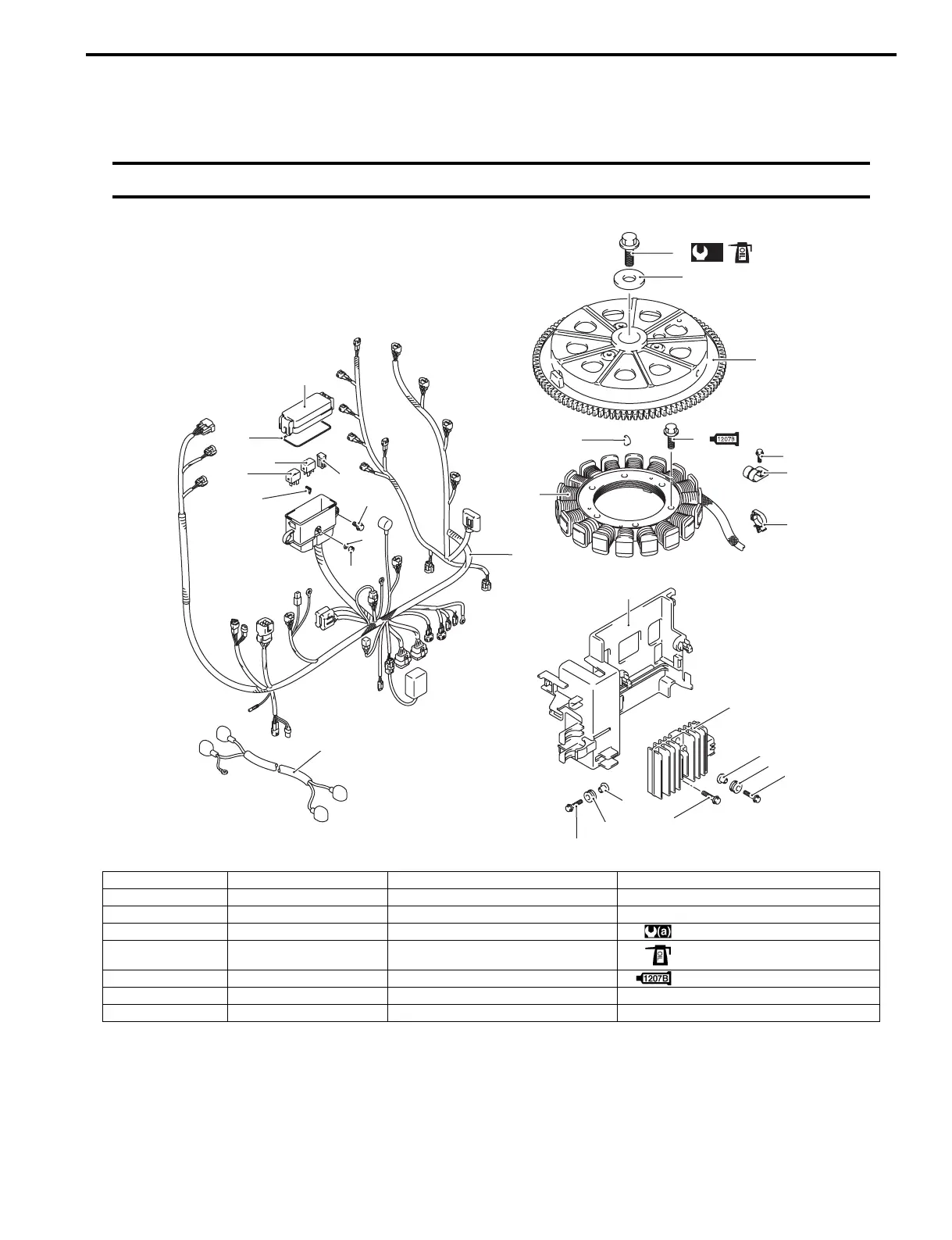

Charging System Construction
Z9J0111B06001
CAUTION
Flywheel bolt (1) is a left hand thread.
(a)
1
2
3
5
4
6
7
8
9
10
11
12
13
13
14
14
15
16
27
25
26
24
23
20
22
21
19
18
17
I9J0111B0004-04
1. Bolt 9. Clamp 17. Wiring harness assembly 25. Nut
2. washer 10. Electric parts holder 18. Fuse case upper cover 26. washer
3. Flywheel 11. Rectifier/Regulator 19. O-ring 27. Battery cable
4. Key 12. Bolt 20. Fuse (40 amp.) : 196 N⋅m (19.7 kgf-m, 142 lbf-ft)
5. Battery charge coil 13. Cushion 21. Main relay : Apply engine oil.
6. Bolt 14. Washer 22. Starter motor relay : Apply SUZUKI Bond 1207B.
7. Bolt 15. Bolt 23. Fuse
8. Clamp 16. Bolt 24. Bolt
