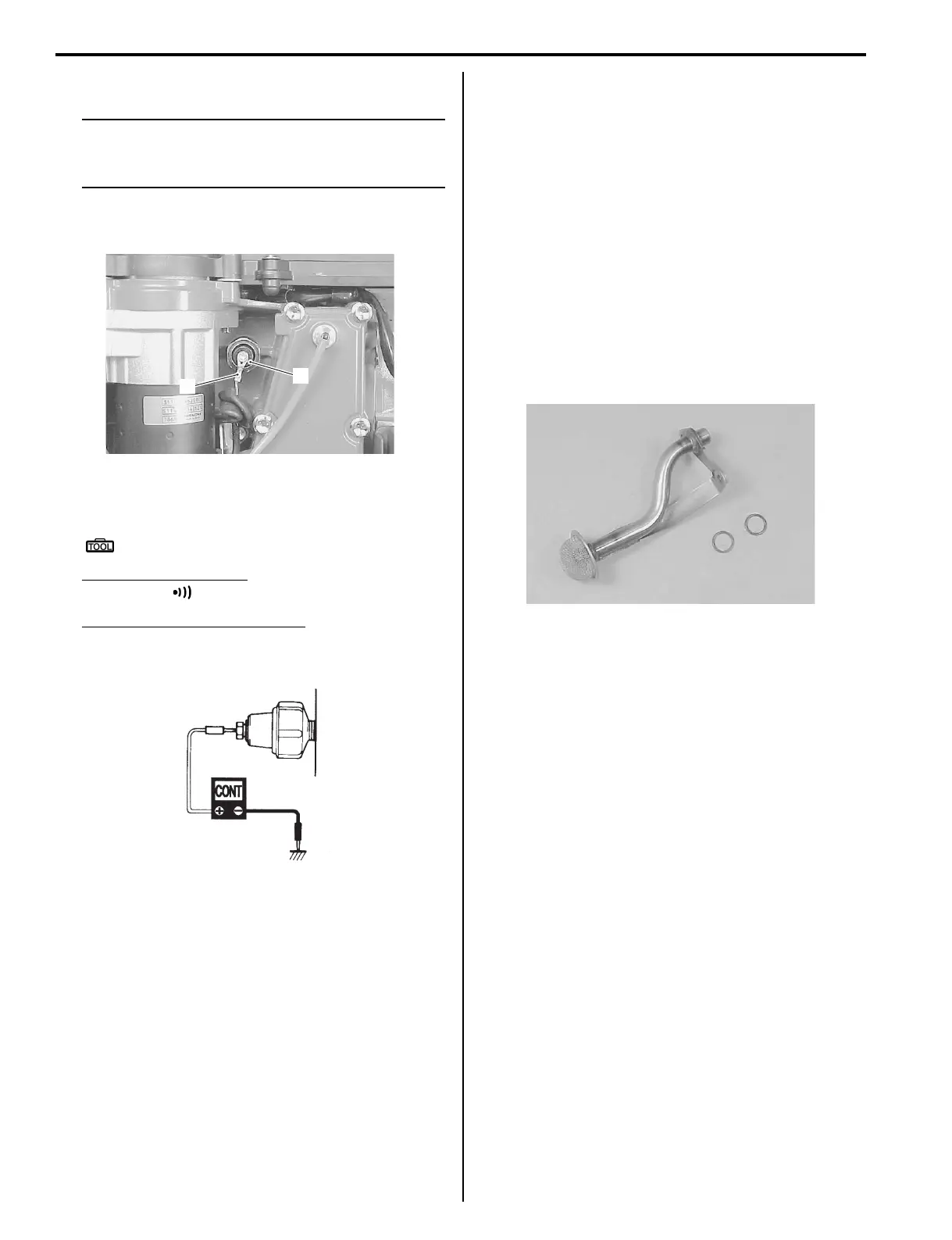

1E-6 Power Unit Lubrication:
Oil Pressure Switch Inspection
Z9J0111506005
NOTE
Before checking the oil pressure switch,
make sure the engine oil pressure is within
specification.
1) Remove the blue lead wire (1) from oil pressure
switch (2).
2) Check the continuity between the switch terminal
and engine body ground.
Special tool
: 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
Oil pressure switch continuity
Engine running: Infinity
Engine stopped: Continuity
3) If measurement exceeds specification, replace oil
pressure switch.
4) Reinstall parts removed earlier.
Oil Strainer Removal and Installation
Z9J0111506006
Removal
Refer to “Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Disassembly” in Section 2A (Page 2A-6).
Installation
Refer to “Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Assembly” in Section 2A (Page 2A-9).
Oil Strainer Related Parts Inspection
Z9J0111506007
• Inspect oil strainer. Replace strainer if cracked,
damaged or other abnormal conditions.
If clog or obstruction, clean oil strainer.
• Check condition of O-ring. Replace O-ring if nicked,
cut, worn or other abnormal condition.
1
2
I9J011150018-01
I9J011150003-01
I9J011150019-01
