Suzuki DF70A - Power Trim and Tilt Unit Components

Power Trim and Tilt: 2B-17

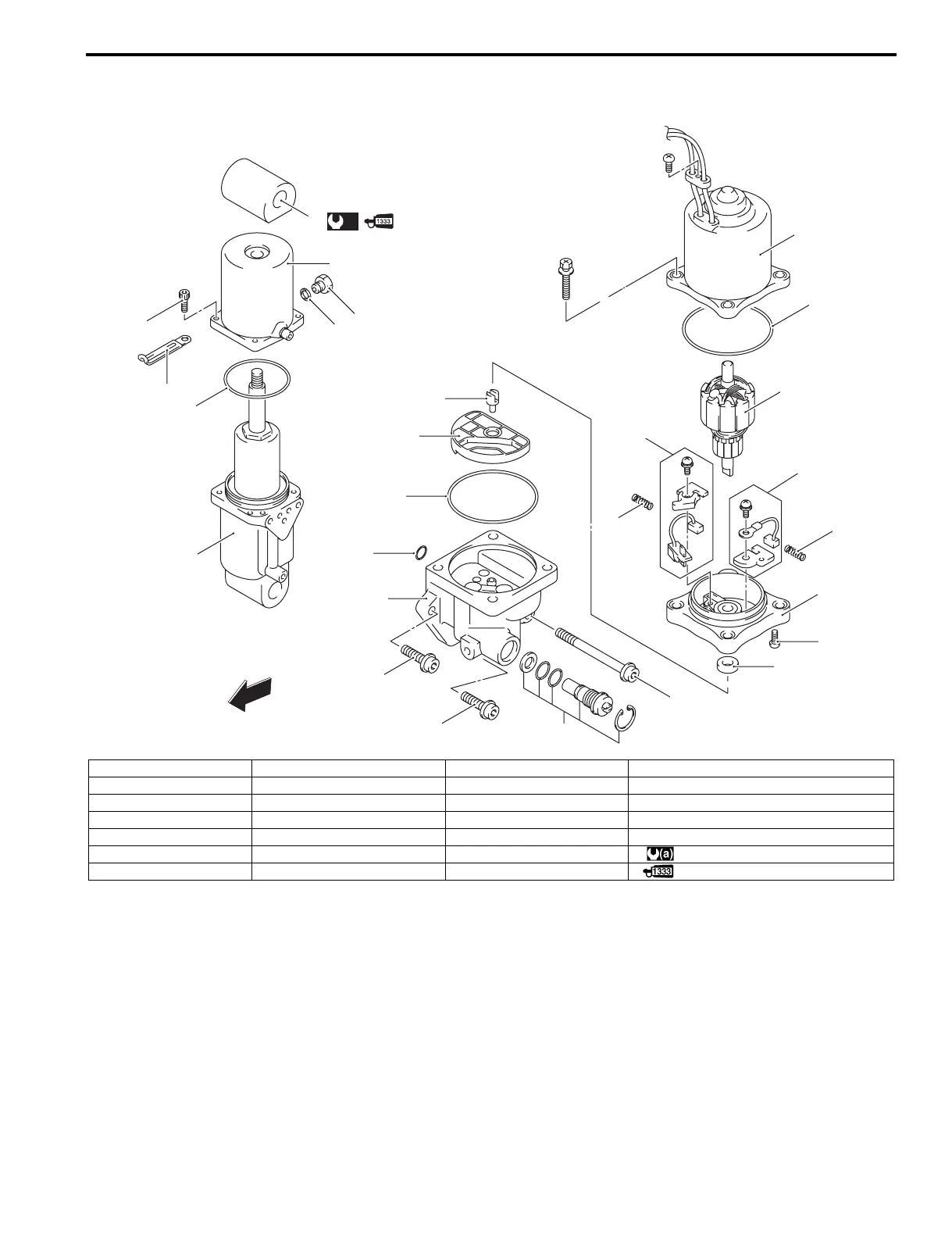

Power Trim and Tilt Unit Components
Z9J0112206005
FWD
FWD
(a)
1
2
3
4
5
6
7
8
9
10
11
14
12
15
16
17
13
14
25
26
18
19
20
21
22
23
24
I9J011220009-03
1. Joint 8. Manifold assembly 15. Brush holder 22. Pump assembly
2. Tank 9. Field case 16. Screw 23. Bolt
3. Plug 10. O-ring 17. Oil seal 24. Bolt
4. O-ring 11. Armature 18. Drive joint 25. Bolt
5. Bolt 12. Brush set 19. Filter 26. Manual valve
6. Clamp 13. Breaker assembly 20. O-ring : 108 N⋅m (10.8 kgf-m, 78.0 lbf-ft)
7. O-ring 14. Spring 21. O-ring : Apply thread lock to the thread area.
