Power Unit Cooling System: 1F-5
Installation

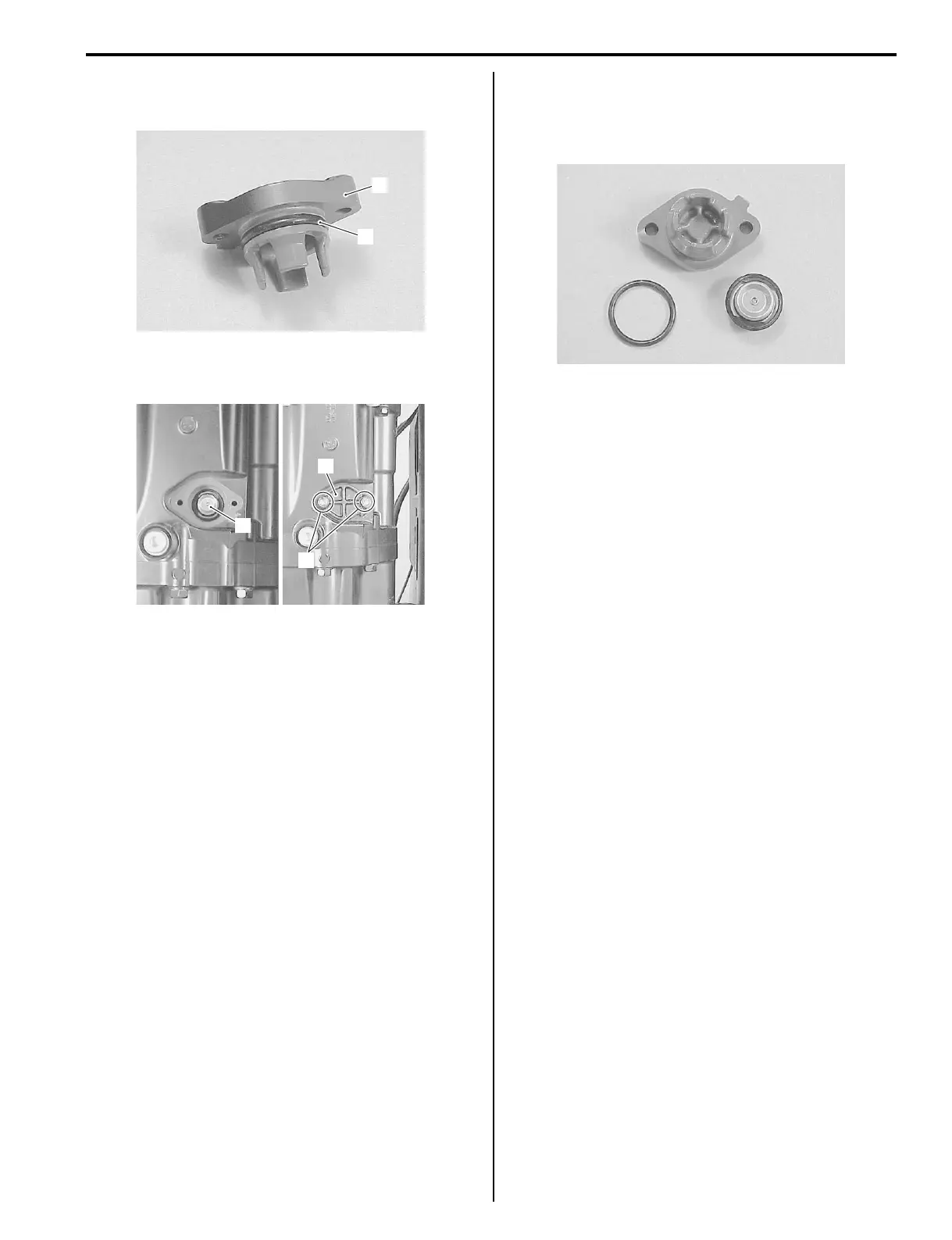

1) Install O-ring (1) to pressure valve cover (2).
2) Install pressure valve (3) and pressure valve cover
(2) to oil pan and secure with bolts (4).
3) Install lower side cover.
Refer to “Lower Side Cover Removal and
Installation” in Section 2A (Page 2A-3).
Water Pressure Valve Related Item Inspection
Z9J0111606004
Inspect the water pressure valve in the following
procedures:
1) Remove the water pressure valve.
Refer to “Water Pressure Valve Removal and
Installation” (Page 1F-4).
2) Inspect the water pressure valve.
If salt deposits, corrosion, wear or other damage is
found, clean or replace.
Inspect O-ring. Replace if nicked, cut or torn.
3) Install the water pressure valve.
Refer to “Water Pressure Valve Removal and
Installation” (Page 1F-4).
Water Pump Removal and Installation
Z9J0111606005
Refer to “Water Pump Removal and Installation” in
Section 3A (Page 3A-6).
Water Pump Related Item Inspection
Z9J0111606006
Refer to “Water Pump and Related Items Inspection” in
Section 3A (Page 3A-8).
Water Tube Removal and Installation
Z9J0111606007
Removal
Refer to “Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Disassembly” in Section 2A (Page 2A-6).
Installation
Refer to “Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Assembly” in Section 2A (Page 2A-9).
Water Tube Related Item Inspection
Z9J0111606008
Refer to “Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Related Component Inspection” in Section 2A
(Page 2A-13).
1
2
I9J011160013-01
3
2
4
I9J011160014-01
I9J011160015-01
