Suzuki DF70A - Water Hose Routing

4B-5 Fuel / Water Hose Routing:

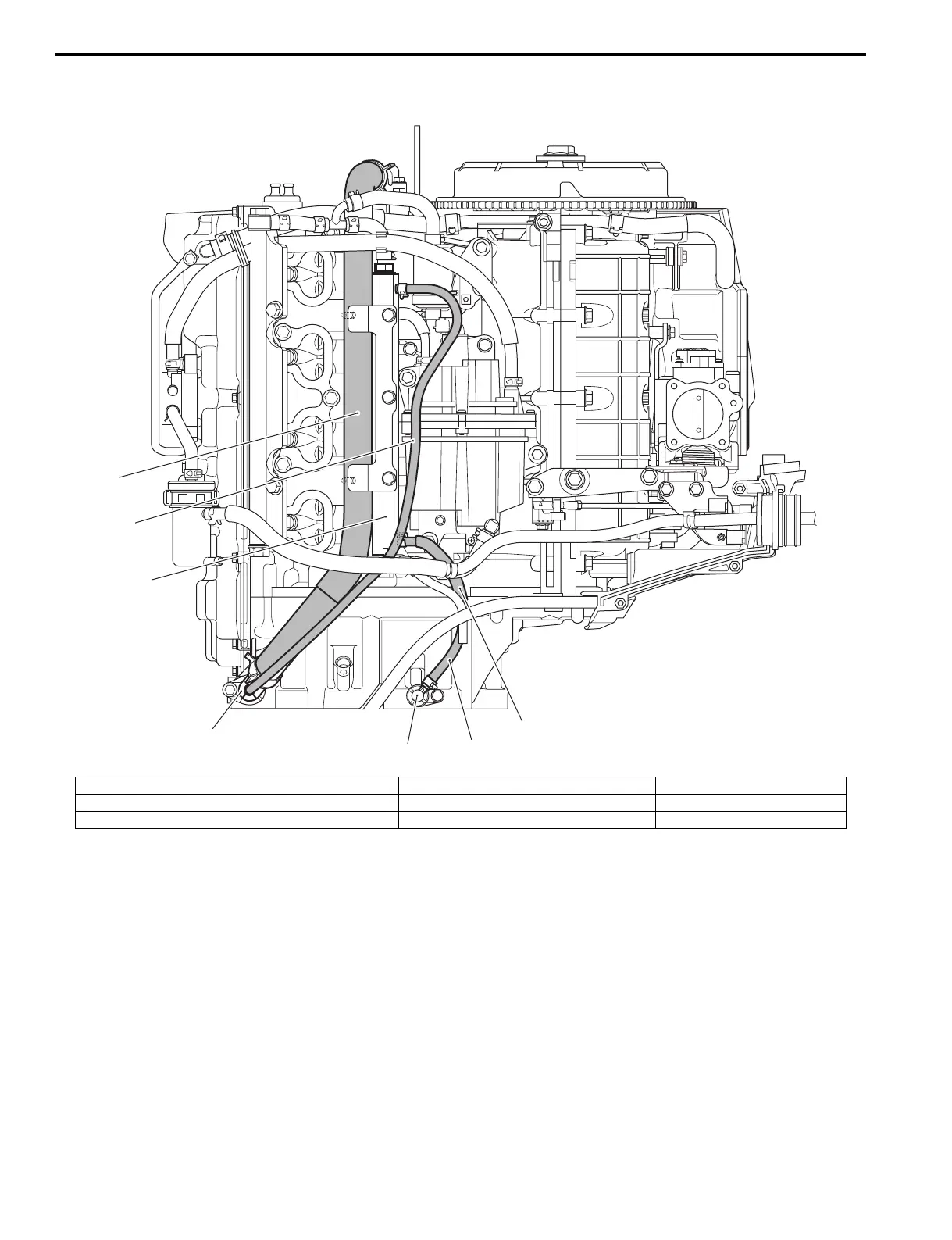

Water Hose Routing
Z9J0114202002
1
2
3
5
6
7
4
I9J011420005-02
1. Water return hose 4. Water hose (Union to fuel cooler) 7. Water return union
2. Fuel cooler 5. Water hose protector
3. Water hose (Fuel cooler to water return union) 6. Water union
