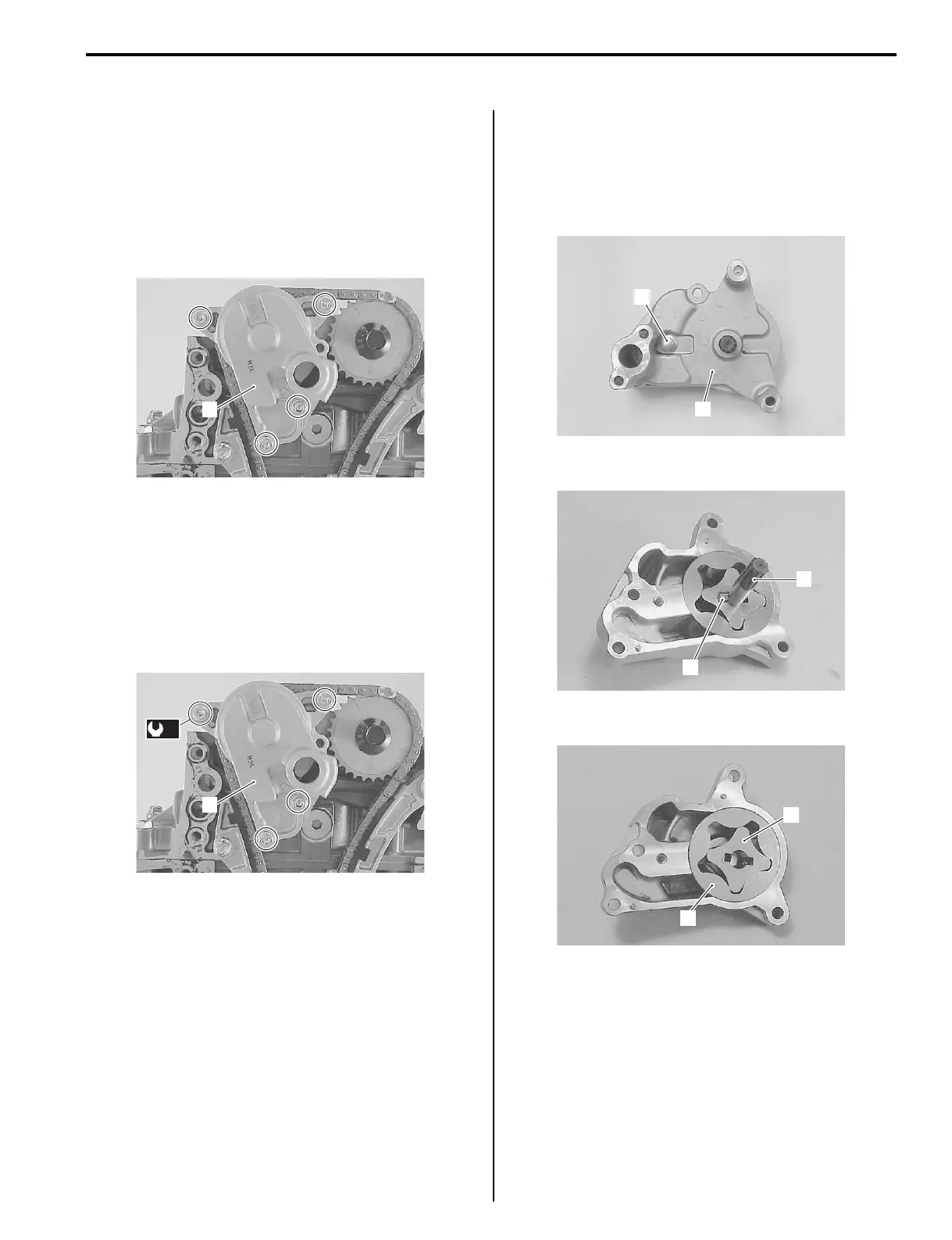

Suzuki DF70A - Service Instructions; Oil Pump Removal and Installation; Oil Pump Disassembly and Assembly

Power Unit Lubrication: 1E-3
Service Instructions
Oil Pump Removal and Installation
Z9J0111506001
Removal
1) Remove the power unit.
Refer to “Power Unit Removal and Installation” in
Section 1D (Page 1D-11).
2) Remove the four bolts securing oil pump (1), then
remove the oil pump.
Installation
Installation is reverse order of removal with special
attention to the following steps.
• Install oil pump assembly (1), then tighten four bolts
securely.
Tightening torque
Oil pump (a): 15 N·m (1.5 kgf-m, 11 lbf-ft)
• Pour approx. 20 ml (0.7 oz.) of engine oil into pump
case for initial lubrication.
Oil Pump Disassembly and Assembly
Z9J0111506002
Disassembly
1) Remove the screw (1) securing oil pump rotor plate
(2) to the oil pump case, then remove oil pump rotor
plate.
2) Remove the shaft (3) and pin (4).
3) Take out inner rotor (5) and outer rotor (6).
1
I9J011150004-01
1
(a)
I9J011150005-01
1
2
I9J011150006-01
3
4
I9J011150007-01
5
6
I9J011150008-01
