Suzuki DF70A - Clamp; Swivel; Steering Brackets Disassembly

2A-18 Housing and Bracket:

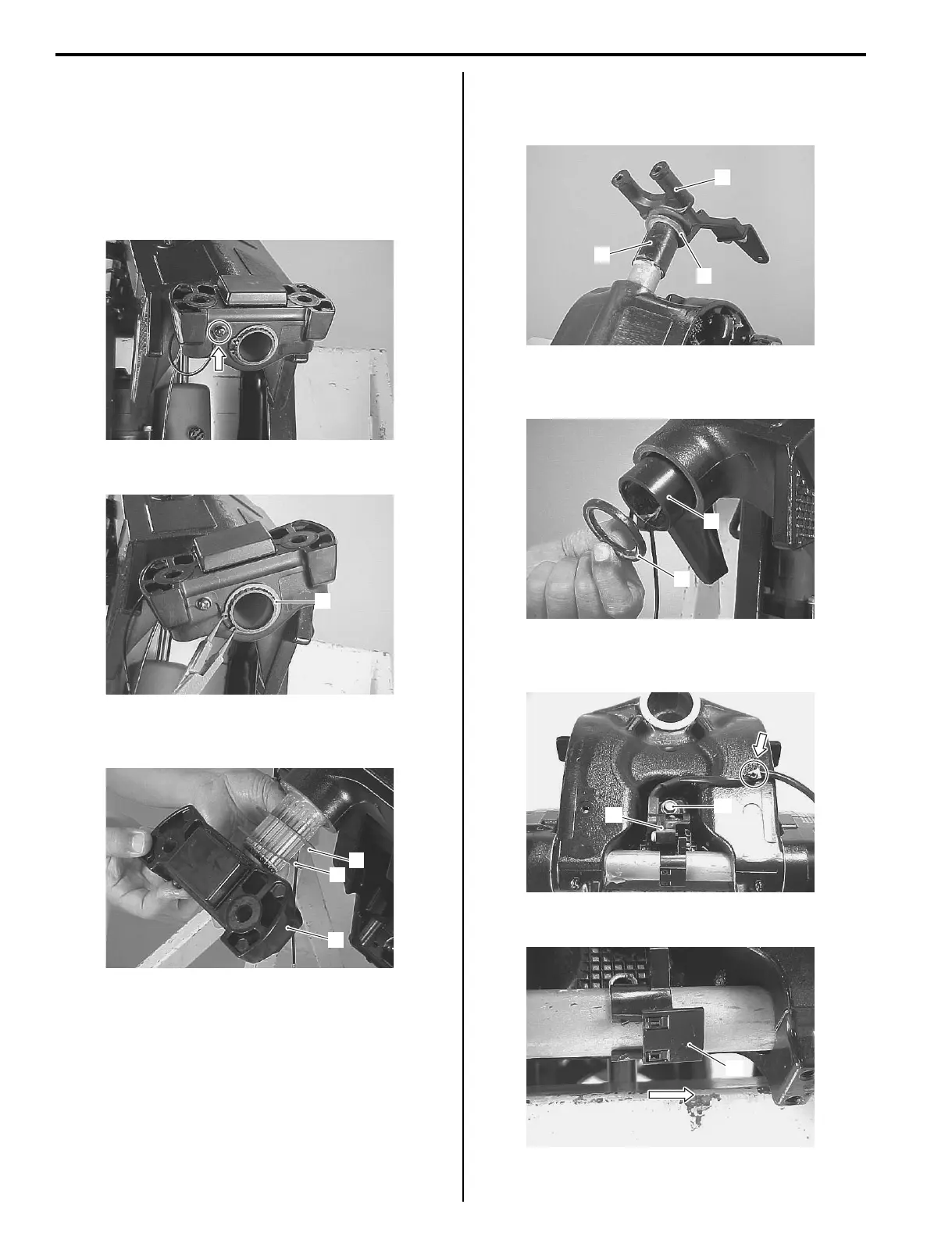

Clamp / Swivel / Steering Brackets Disassembly
Z9J0112106011
1) Remove engine holder / oil pan and driveshaft
housing. Refer to “Engine Holder / Oil Pan /
Driveshaft Housing / Mounts Disassembly”
(Page 2A-6).
2) Remove screw and bonding wire from lower mount
bracket.
3) Remove circlip (1).
4) Remove lower mount bracket (2), shims (3), and
washer (4) from the steering shaft.
5) Lift steering bracket (5) upward to remove from
swivel bracket.
Remove washer (6) and upper bushing (7).
6) Remove swivel bracket seal (8) and lower bushing
(9).
7) Remove bolt (10) and trim sensor assembly (11).
Cut the cable tie securing sensor lead wire.
8) Slide the lower trim sensor cam plate (12) off.
I9J011210082-01
1
I9J011210083-01
2
3
4
I9J011210085-01
5
6
7
I9J011210084-01
8
9
I9J011210086-01
11
10
I9J011210087-01
12
I9J011210088-01
