Housing and Bracket: 2A-9

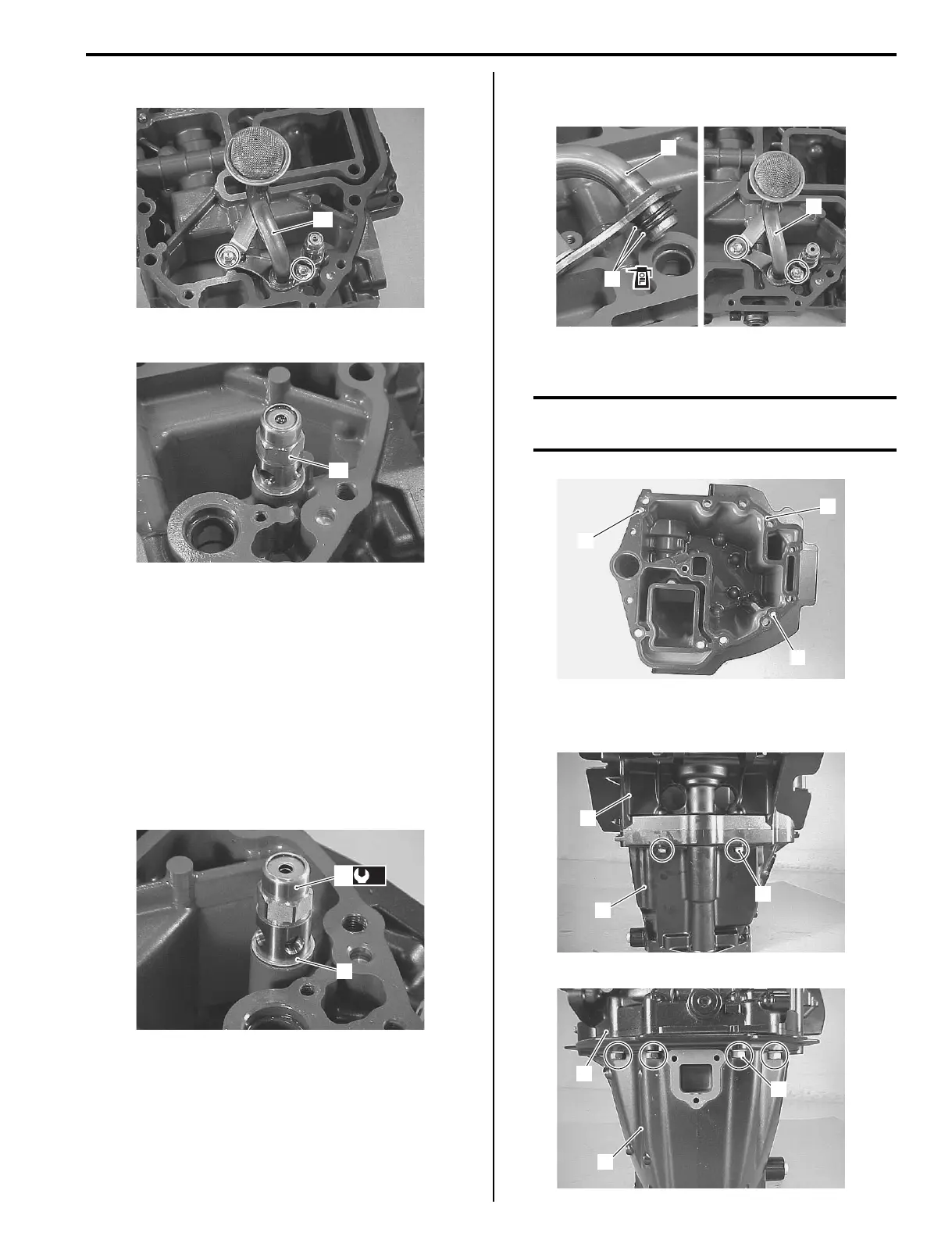

21) Remove two bolts and oil strainer (32).
22) Remove the oil relief valve (33) and gasket.
Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Assembly
Z9J0112106005
Assembly is in reverse order of disassembly with special
attention to the following steps.
Engine Holder to Oil Pan
• Install the gasket (1) and oil relief valve (2) to the
engine holder, then tighten the valve securely.
Tightening torque
Oil relief valve (a): 27 N·m (2.7 kgf-m, 19.5 lbf-ft)
• Apply engine oil to O-rings (3), then install O-rings to
oil strainer (4).
• Install oil strainer to engine holder, then tighten bolts
securely.
• Install two dowel pins (5) and gasket (6) to oil pan.
CAUTION
Do not reuse gasket. Always assemble with a
new gasket.
• Install engine holder (7) to oil pan (8), then securely
tighten it with engine holder bolts (9).
32
I9J011210035-01
33
I9J011210036-02
1
(a)
2
I9J011210037-01
3
4
4
I9J011210038-01
5
5
6
I9J011210039-03
7
8
9
I9J011210040-01
7
8
9
I9J011210041-02
