Charging System: 1K-8
Rectifier/Regulator Inspection
Z9J0111B06006

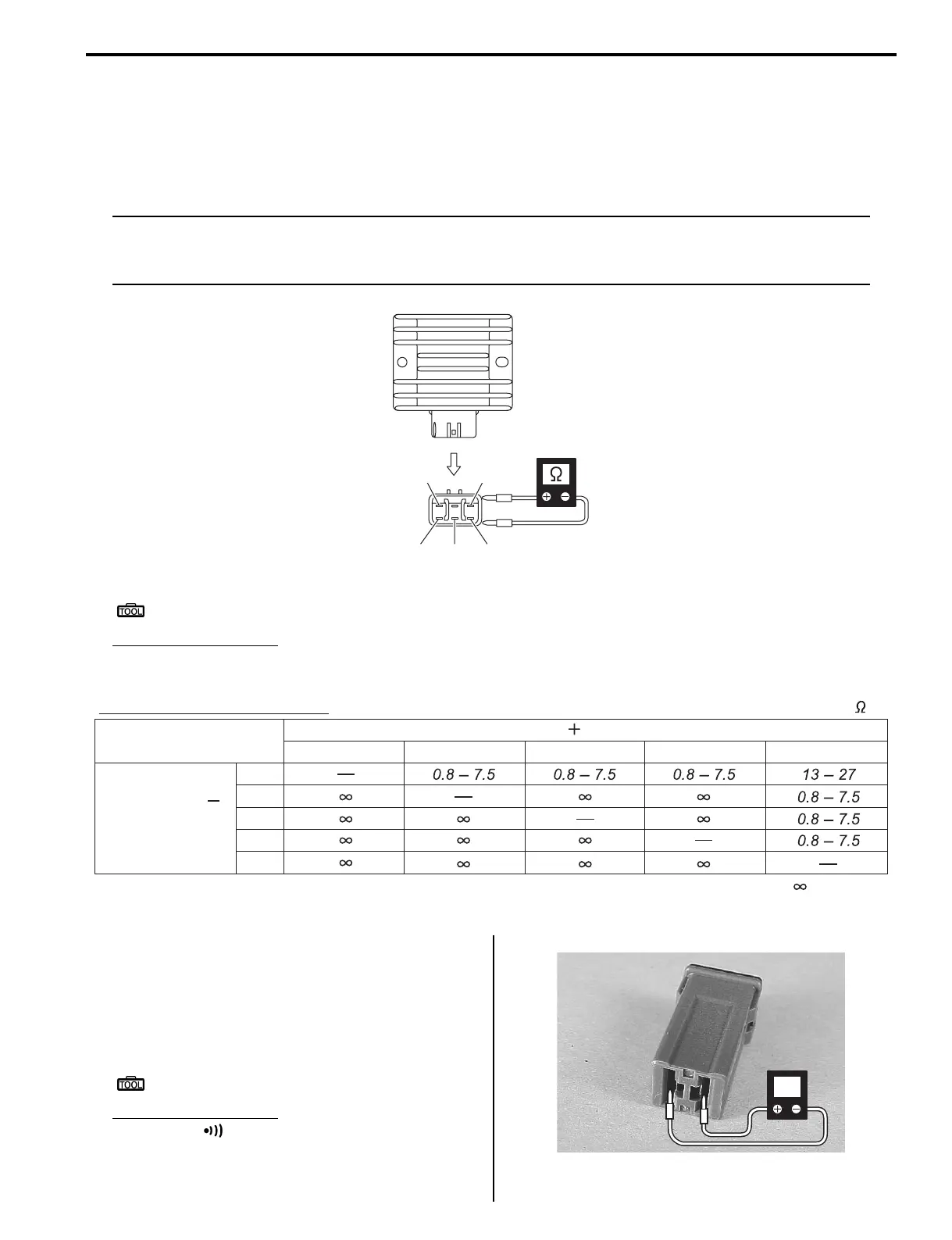

Inspect the rectifier/regulator in the following procedures:
1) Disconnect all lead wires of rectifier/regulator.
2) Measure resistance between terminals in the combinations shown.
If measurement exceeds specification, replace rectifier/regulator.
NOTE
The values given below are for a SUZUKI pocket tester.
As thyristors, diodes, etc. are used inside this rectifier/regulator, the resistance values will differ when
an ohmmeter other than SUZUKI pocket tester is used.
Special tool
: 09930–25002 (Pocket tester)
Tester knob indication
Resistance (x 1 kΩ)
Main Fuse Inspection
Z9J0111B06007
Inspect the main fuse in the following procedures.
1) Remove the main fuse from fuse box.
2) Inspect continuity between both terminal of fuse.
If no continuity is indicated, replace fuse.
Special tool
: 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
A
B C D
E
I9J0111B0006-02
A
B
C
D
E
Tester probe ( )
connection
(Black)
Tester probe ( ) (Red) connection
AB DCE
: Infinity
Unit: k
Rectifier and regulator resistance
I9J0111B0008-06
CONT
I9J0111B0023-01
